Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECO2230SEO-D04V016XFMR FLYBACK AC/DC CONV TH |
2,635 | - |
|
Datasheet | ECO | Bulk | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | - | - | 50kHz | -30°C ~ 120°C | - | - | Through Hole | - | 1.417" (36.00mm) | - | - |
|
750342779XFMR FLYBACK DC/DC CONV 50UH SMD |
4,159 | - |
|
Datasheet | MID-IBMAX | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 17 ~ 36V | 7V @ 100mA | 1875Vrms | 50µH @ 50kHz | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.67mm) | 0.385" L x 0.374" W (9.78mm x 9.50mm) | - |
|
7508112514XFMR FLYBACK DC/DC CONV 460UH TH |
2,705 | - |
|
Datasheet | MID-OLEFD | Tray | Active | For DC/DC Converters | Flyback Converters | - | - | 120 ~ 375V | 20V | 4500Vrms | 460µH @ 10kHz | 68 ~ 110kHz | -40°C ~ 125°C | - | - | Through Hole | - | 0.551" (14.00mm) | - | - |
|
PG1895NLTXFMR FLYBACK 48UH SMD |
2,709 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 12 ~ 36V | 23V @ 30mA | 2420V | 48µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.004" L x 1.063" W (25.50mm x 27.00mm) | 0.472" (12.00mm) | 1.157" L x 1.004" W (29.40mm x 25.50mm) | Wirewound |
|
7491195501XFMR POE DC/DC CONV 21UH SMD |
2,331 | - |
|
Datasheet | WE-PoEH | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 9 ~ 57V | 10V | 1500Vrms | 21µH @ 100kHz | 200 ~ 400kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.551" L x 0.591" W (14.00mm x 15.00mm) | 0.571" (14.50mm) | 0.551" L x 0.591" W (14.00mm x 18.10mm) | - |
|
PA0808NLXFMR DC/DC CONV SMD |
1,524 | - |
|
Datasheet | PA08XXNL | Tray | Active | For DC/DC Converters | - | - | - | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.920" W (21.60mm x 23.37mm) | 0.348" (8.85mm) | 0.850" L x 0.920" W (21.60mm x 23.37mm) | Planar |
|

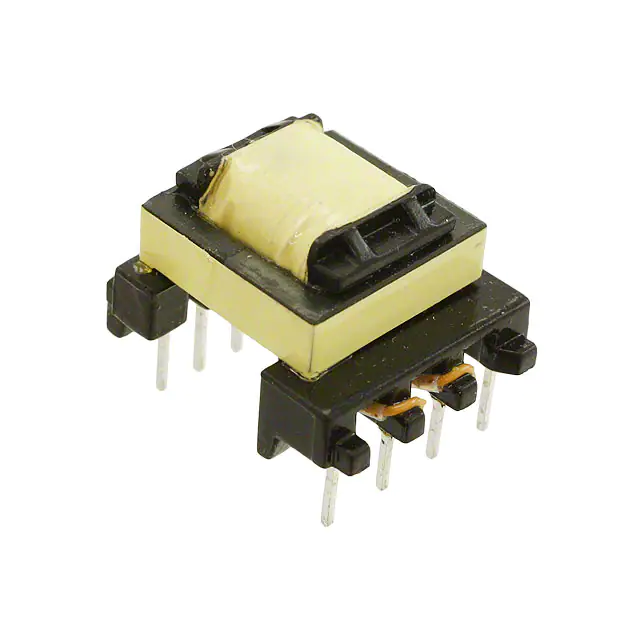

7491182124XFMR LED DR AC/DC CONV 900UH TH |
1,590 | - |
|
Datasheet | WE-UNIT | Tray | Active | For AC/DC Converters | LED Drivers, AC/DC SMPS | NCP101x, NCP105x | On Semiconductor | 120 ~ 385V | - | 4000Vrms | 900µH @ 10kHz | 132kHz | -40°C ~ 125°C | - | - | Through Hole | 0.795" L x 0.965" W (20.20mm x 24.50mm) | 0.650" (16.50mm) | 0.795" L x 0.965" W (20.20mm x 24.50mm) | - |
|
PH0810CNLXFMR DC/DC CONV SMD |
2,568 | - |
|
Datasheet | PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|
749196541XFMR FLEX CONFIG DC/DC 7.6UH SMD |
2,017 | - |
|
Datasheet | WE-FLEX | Tape & Reel (TR) | Active | Configurable (For DC/DC) | Flexible | - | - | - | - | 500VDC | 7.6µH @ 10kHz | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 0.827" W (21.00mm x 21.00mm) | 0.425" (10.80mm) | 0.827" L x 1.169" W (21.00mm x 29.70mm) | - |
|
750343109XFMR FLYBACK AC/DC CONV 490UH TH |
3,717 | - |
|
Datasheet | WE-FB, MID-OLDIA | Tray | Active | For AC/DC Converters | Flyback Converters | - | Dialog Semiconductor | 90 ~ 264V | 14V | 3000Vrms | 490µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Through Hole | 0.874" L x 1.024" W (22.20mm x 26.00mm) | 0.635" (16.13mm) | 0.874" L x 1.024" W (22.20mm x 26.00mm) | - |
|
750315039XFMR ISOL BUCK DC/DC CON 40UH SM |
1,812 | - |
|
Datasheet | MID-IBTI | Tape & Reel (TR) | Active | For DC/DC Converters | Isolated Buck Converters | - | Texas Instruments | - | - | 1500Vrms | 40µH @ 10kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.955" (24.26mm) | 0.910" L x 1.145" W (23.11mm x 29.08mm) | - |
.jpg "PE-68414NL")
|
PE-68414NLXFMR FLYBACK DC/DC CONV SMD |
2,717 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
|
760871333XFMR 250UH SMD |
3,062 | - |
|
Datasheet | WE-SLIM | Tray | Active | - | - | - | - | - | - | 4000Vrms | 250µH @ 50kHz | 130kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.472" (12.00mm) | 1.157" L x 1.870" W (29.40mm x 47.50mm) | - |
|
MTPL-2516-S24VXFMR PLANAR TH |
4,822 | - |
|
Datasheet | MTPL-2516 | Tray | Active | - | - | - | - | - | - | - | - | - | -55°C ~ 130°C | - | - | Through Hole | 1.181" L x 1.024" W (30.00mm x 26.00mm) | 0.650" (16.51mm) | - | Planar |
|
750313054XFMR FLYBACK DC/DC CONV 500UH TH |
2,314 | - |
|
Datasheet | MID-OLON | Tray | Active | For DC/DC Converters | Flyback Converters | - | On Semiconductor | - | - | 4000Vrms | 500µH @ 10kHz | - | -40°C ~ 125°C | - | - | Through Hole | - | 0.950" (24.13mm) | - | - |
|
VPH5-0067-RXFMR 9.65UH SMD |
2,282 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.827" L x 1.122" W (21.00mm x 28.50mm) | 0.425" (10.80mm) | - | - |
|
VPH4-0140-RXFMR 23.7UH SMD |
2,341 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|
VGT22EPC-200S6A12XFMR FLYBACK AC/DC CONV 2.5UH SM |
1,414 | - |
|
Datasheet | VGT | Tape & Reel (TR) | Active | For AC/DC Converters | Flyback Converters | - | - | - | - | 2600Vrms | 2.5µH @ 100kHz | - | -40°C ~ 130°C | - | - | Surface Mount | 1.299" L x 0.976" W (33.00mm x 24.80mm) | 0.539" (13.70mm) | 1.299" L x 1.055" W (33.00mm x 26.80mm) | Wirewound |
|
|
VPH4-0060-RXFMR 10.1UH SMD |
2,836 | - |
|
Datasheet | VERSA-PAC® | Bulk | Active | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.709" L x 0.969" W (18.00mm x 24.60mm) | 0.394" (10.00mm) | - | - |
|

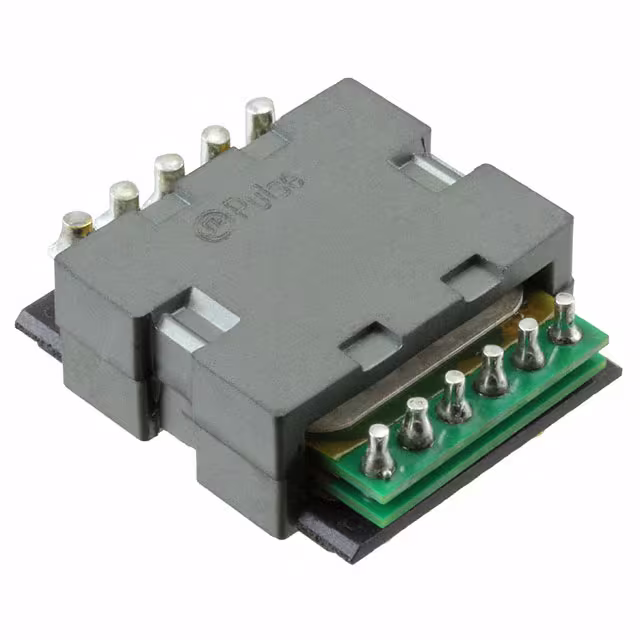

PA0907NLXFMR SMD |
1,760 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
Switching Converter, SMPS Transformers FAQ
What Switching Converter, SMPS Transformers components can I source from EGOO?
You can browse available Switching Converter, SMPS Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Switching Converter, SMPS Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
