Switching Converter, SMPS Transformers
Compare the current Switching Converter, SMPS Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78304B1031A003XFMR DC/DC CONV 1MH SMD |
3,798 | - |
|
Datasheet | B78304B | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 500Vrms | 1mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.224" (5.70mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
B78304B1016A003XFMR DC/DC CONV 4.3MH SMD |
3,444 | - |
|
Datasheet | B78304B | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 500Vrms | 4.3mH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.224" (5.70mm) | 0.315" L x 0.374" W (8.00mm x 9.50mm) | - |
|
B78334B1018A003XFMR DC/DC CONV 288.3UH SMD |
1,147 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | - | - | - | - | - | 1200Vrms | 288.3µH @ 10kHz | - | -40°C ~ 85°C | - | - | Surface Mount | 0.472" L x 0.535" W (12.00mm x 13.60mm) | 0.252" (6.40mm) | 0.480" L x 0.535" W (12.20mm x 13.60mm) | - |
|
B78302A2403A003XFMR 4MH SMD |
2,046 | - |
|
Datasheet | B78302 | Tape & Reel (TR) | Last Time Buy | - | - | - | - | - | - | - | 4mH @ 50kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.264" (6.70mm) | 0.346" L x 0.264" W (8.80mm x 6.70mm) | Wirewound |
|
|
B78302A2401A003XFMR 2MH SMD |
2,482 | - |
|
Datasheet | B78302 | Tape & Reel (TR) | Last Time Buy | - | - | - | - | - | - | - | 2mH @ 50kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.264" (6.70mm) | 0.346" L x 0.264" W (8.80mm x 6.70mm) | Wirewound |
|
|
B78302A2402A003XFMR 3MH SMD |
3,092 | - |
|
Datasheet | B78302 | Tape & Reel (TR) | Last Time Buy | - | - | - | - | - | - | - | 3mH @ 50kHz | 50kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.307" L x 0.264" W (7.80mm x 6.70mm) | 0.264" (6.70mm) | 0.346" L x 0.264" W (8.80mm x 6.70mm) | Wirewound |
|
B82802A0030A320XFMR FLYBACK DC/DC CONV 40UH SMD |
4,128 | - |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 40µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.866" L x 0.878" W (22.00mm x 22.30mm) | 0.421" (10.70mm) | 0.866" L x 1.035" W (22.00mm x 26.30mm) | - |
|
|
B82802A0030A220XFMR FLYBACK DC/DC CONV 40UH SMD |
4,533 | - |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 40µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.866" L x 0.878" W (22.00mm x 22.30mm) | 0.421" (10.70mm) | 0.866" L x 1.035" W (22.00mm x 26.30mm) | - |
|

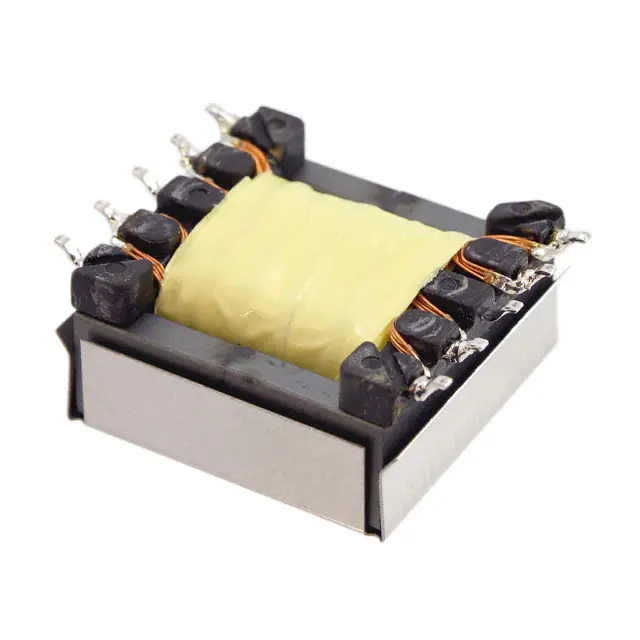

B82802A0055A225XFMR FLYBACK DC/DC CONV 22UH SMD |
1,214 | - |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 22µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.583" (14.80mm) | 1.063" L x 1.283" W (27.00mm x 32.60mm) | - |
|
|
B82802A0055A325XFMR FLYBACK DC/DC CONV 22UH SMD |
1,291 | - |
|
Datasheet | B82802A | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 36 ~ 60V | - | 1500Vrms | 22µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.583" (14.80mm) | 1.063" L x 1.283" W (27.00mm x 32.60mm) | - |
Switching Converter, SMPS Transformers FAQ
How can I narrow the current Switching Converter, SMPS Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Switching Converter, SMPS Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
