Switching Converter, SMPS Transformers
Browse available Switching Converter, SMPS Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750316886XFMR FWD P-P DC/DC CONV 200UH SM |
1,407 | - |
|
Datasheet | MID-PPTI | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | Texas Instruments | 5V | - | 2500Vrms | 200µH @ 10kHz | 420kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.450" L x 0.327" W (11.43mm x 8.30mm) | 0.165" (4.20mm) | 0.581" L x 0.327" W (14.75mm x 8.30mm) | - |
|

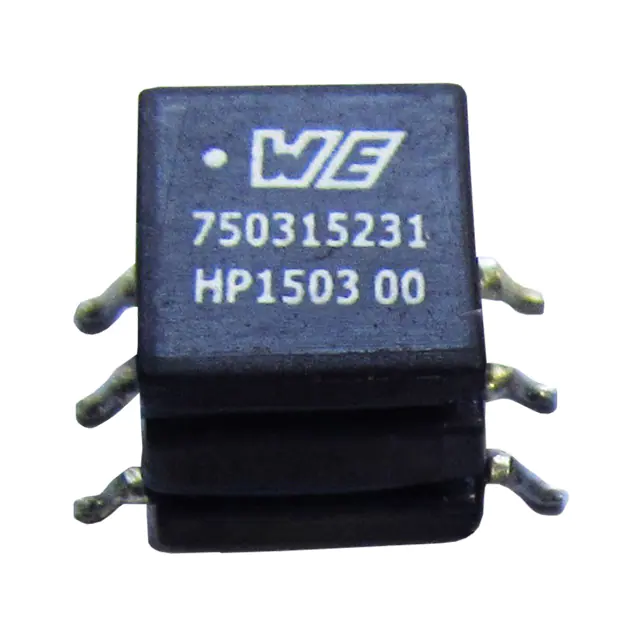

750315231XFMR FWD P-P SMD |
760 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
750315230XFMR FWD P-P SMD |
488 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
PA5099.006NLTXFMR FLYBACK DC/DC CONV SMD |
975 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.005NLTXFMR FLYBACK DC/DC CONV SMD |
264 | - |
|
Datasheet | PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PA3855.004NLTXFMR FLYBACK DC/DC CONV 21UH SMD |
247 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
.00xNL-Series.jpg "PA3856.005NL")
|
PA3856.005NLXFMR FWD P-P DC/DC CONV SMD |
302 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.003NLTXFMR FWD P-P DC/DC CONV SMD |
672 | - |
|
Datasheet | EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.006NLXFMR FWD P-P DC/DC CONV SMD |
174 | - |
|
Datasheet | - | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
CEER117-AX05-13-048XFMR FLYBACK DC/DC CONV 59UH SMD |
1,076 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, BM60051FV, BM60052AFV, BM60054AFV, BM60055FV, BM60056FV | Broadcom, ROHM | 12V | - | 2500Vrms | 59µH @ 100kHz, 240µH @ 100kHz | 120kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.449" L x 0.390" W (11.40mm x 9.90mm) | 0.331" (8.40mm) | 0.508" L x 0.449" W (12.90mm x 11.40mm) | - |
|
PH9496NLTXFMR FLYBACK DC/DC CONV SMD |
875 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 2500Vrms | - | 80kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.492" (12.50mm) | - | - |
|

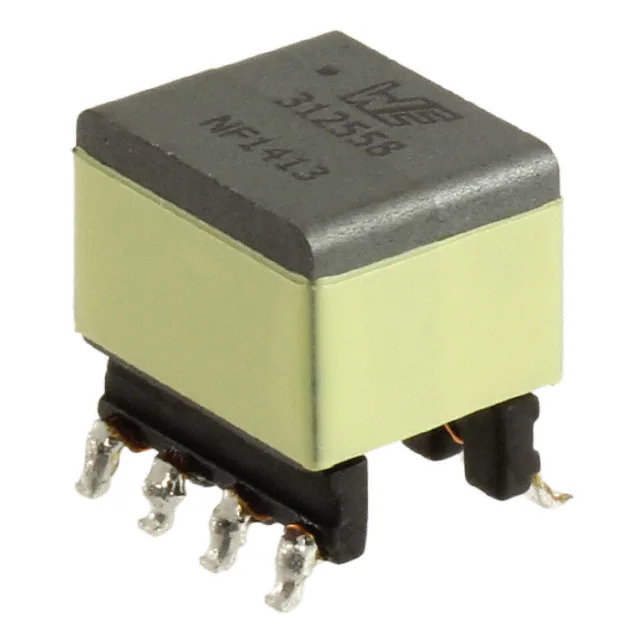

750312558XFMR FLYBACK DC/DC CONV 300UH SM |
1,749 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.420" (10.69mm) | 0.385" L x 0.360" W (9.78mm x 9.14mm) | - |
|
750313442XFMR FLYBACK DC/DC CONV 12UH SMD |
159 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 8 ~ 32V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.450" (11.43mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
|
750313460XFMR FLYBACK DC/DC CONV 12UH SMD |
120 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8302 | Linear Technology | 4 ~ 8V | - | 1500Vrms | 12µH @ 10kHz | - | - | - | - | Surface Mount | - | 0.455" (11.56mm) | 0.525" L x 0.600" W (13.34mm x 15.24mm) | - |
|
750315837XFMR FLYBACK DC/DC CONV 40UH SMD |
458 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8304 | Linear Technology | 36 ~ 75V | - | 1500Vrms | 40µH @ 10kHz | 50 ~ 200kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.500" (12.70mm) | 0.530" L x 0.699" W (13.46mm x 17.75mm) | - |
|
750312366XFMR FLYBACK DC/DC CONV 400UH SM |
2,667 | - |
|
Datasheet | WE-UNIT, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 18 ~ 75V | - | 1500Vrms | 400µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.340" (8.64mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750312365XFMR FLYBACK DC/DC CONV 300UH SM |
1,488 | - |
|
Datasheet | WE-PoE, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 30 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750312557XFMR FLYBACK DC/DC CONV 300UH SM |
166 | - |
|
Datasheet | WE-FB, MID-FLYLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT8300 | Linear Technology | 36 ~ 72V | - | 1500Vrms | 300µH @ 10kHz | 70kHz | -40°C ~ 125°C | - | - | Surface Mount | - | 0.342" (8.69mm) | 0.400" L x 0.526" W (10.16mm x 13.36mm) | - |
|
750315229XFMR FWD P-P SMD |
885 | - |
|
Datasheet | MID-PPMAX | Tape & Reel (TR) | Active | - | Forward, Push-Pull Converters | - | - | - | - | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.360" L x 0.315" W (9.14mm x 8.00mm) | 0.300" (7.62mm) | - | - |
|
POE025-PD13120SXFMR POE DC/DC CONV 80UH SMD |
5,098 | - |
|
Datasheet | POE-PD | Tape & Reel (TR) | Active | For DC/DC Converters | Power Over Ethernet (PoE) | - | - | 36 ~ 57V | 14.5V | 1500Vrms | 80µH @ 100kHz | 220kHz | -40°C ~ 105°C | - | - | Surface Mount | 0.638" L x 0.551" W (16.20mm x 14.00mm) | 0.571" (14.50mm) | - | - |
Switching Converter, SMPS Transformers FAQ
What Switching Converter, SMPS Transformers components can I source from EGOO?
You can browse available Switching Converter, SMPS Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Switching Converter, SMPS Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
