SCRs - Modules
Compare the current SCRs - Modules Thyristors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSDT150-16POWER MOD BRIDGE THY 3PH M5 |
9,439 | - |
|
Datasheet | - | M5 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 150 A | - | 3 V | 150 mA | 1500A @ 50Hz | - | - | - | - | Chassis Mount |
|
MSFC110-16POWER MOD THYRISTOR/DIODE F1 |
7,011 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Screw Mount |
|
MSFC160-16POWER MOD THYRISTOR/DIODE F2 |
4,738 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Screw Mount |
|
MSTC110-16POWER MOD THYRISTOR/DIODE T1 |
8,657 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 110 A | - | 3 V | 150 mA | 2250A @ 50Hz | 250 mA | -40°C ~ 130°C (TJ) | - | - | Screw Mount |
|

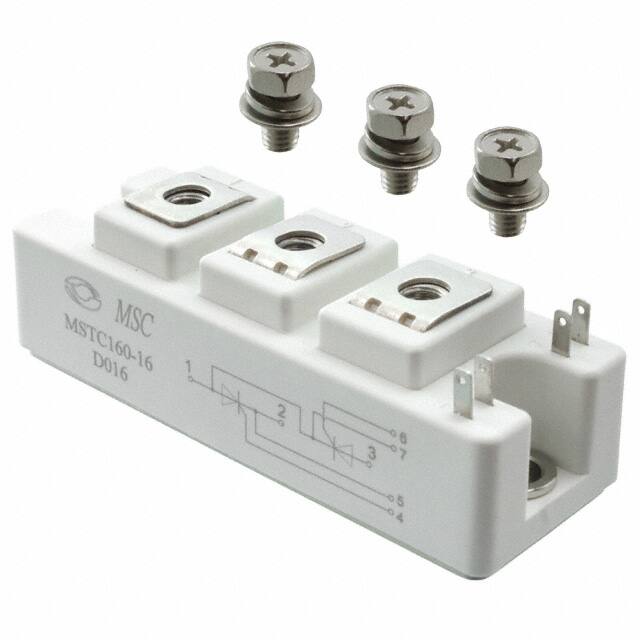

MSTC160-16POWER MOD THYRISTOR/DIODE T2 |
3,072 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 160 A | - | 3 V | 150 mA | 5400A @ 50Hz | 400 mA | -40°C ~ 130°C (TJ) | - | - | Screw Mount |
|
MSFC60-08MOD THYRISTOR DIODE DBLR 60A SF1 |
3,391 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 60 A | - | 3 V | 150 mA | 1500A @ 50Hz | 250 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
MSDT100-16PWR MOD THYRISTOR 1600V 100V SM4 |
5,740 | - |
|
Datasheet | - | M4 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 100 A | - | 3 V | 150 mA | 1200A @ 50Hz | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MSDT200-16PWR MOD THYRISTOR 1600V 200V SM4 |
8,529 | - |
|
Datasheet | - | M5 Module | Bulk | Obsolete | Bridge, 3-Phase - SCRs/Diodes | 1 SCR, 6 Diodes | 1.6 kV | 200 A | - | 3 V | 150 mA | 1900A @ 50Hz | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-08MOD THYRISTOR DIODE DBLR 130A D1 |
7,422 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MSFC130-12MOD THYRISTOR DIODE DBLR 130A D1 |
9,523 | - |
|
Datasheet | - | Module | Bulk | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 130 A | - | 3 V | 150 mA | 4700A @ 50Hz | 400 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
How can I narrow the current SCRs - Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete SCRs - Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
