SCRs - Modules
Compare the current SCRs - Modules Thyristors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCC501-14IO2MOD THYRISTOR DUAL 14KV |
9,250 | - |
|
Datasheet | - | Module | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | - | - | - | - | 14500A @ 50Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MDNA660U2200PT-PCMDNA660U2200PTEH-PC |
8,244 | - |
|
Datasheet | - | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MDNA360UB2200P-PCMDNA360UB2200PTED-PC |
4,674 | - |
|
Datasheet | - | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

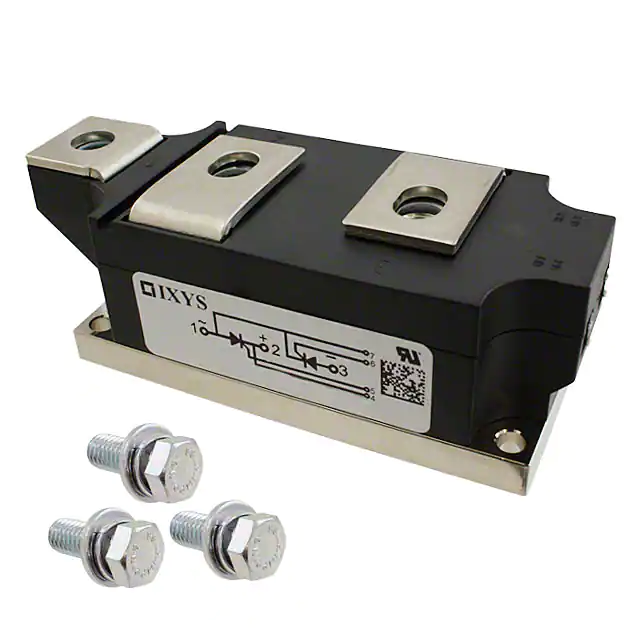

MCC501-16IO2SCR THY PHASE LEG 1600V WC-501 |
9,520 | - |
|
Datasheet | - | WC-501 | Tray | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | - | - | - | - | 14500A @ 50Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD310-20IO1MOD THYRISTOR/DIODE 2000V Y2-DCB |
4,197 | - |
|
Datasheet | - | Y2-DCB | Box | Obsolete | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
|
MCC500-12IO1MOD THYRISTOR DUAL 1200V WC-500 |
7,205 | - |
|
Datasheet | - | WC-500 | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 545 A | 1294 A | 3 V | 300 mA | 16500A @ 50Hz | 1 A | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC500-14IO1MOD THYRISTOR DUAL 1400V WC-500 |
9,131 | - |
|
Datasheet | - | WC-500 | Box | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 545 A | 1294 A | 3 V | 300 mA | 16500A @ 50Hz | 1 A | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD431-22IO2MCD 431 - 22 IO2 |
3,206 | - |
|
Datasheet | - | Module | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 429 A | 1020 A | 2.5 V | 250 mA | 12000A @ 50Hz | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC500-16IO1THYRISTOR DIODE MOD 1600V M##500 |
9,570 | - |
|
Datasheet | - | WC-500 | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 545 A | 1294 A | 3 V | 300 mA | 16500A @ 50Hz | 1 A | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MDNA600P2200PT-PCMDNA600P2200PTSF-PC |
5,940 | - |
|
Datasheet | - | - | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
SCRs - Modules FAQ
How can I narrow the current SCRs - Modules selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete SCRs - Modules parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
