SCRs - Modules
Browse available SCRs - Modules components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

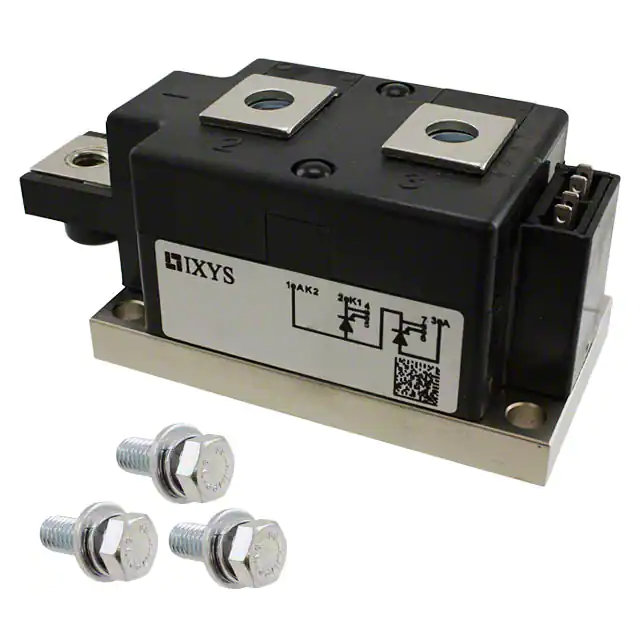

xxx-xxIO1.jpg "MCC312-18IO1")
|
MCC312-18IO1MOD THYRISTOR DUAL 1800V Y1-CU |
3 | - |
|
Datasheet | - | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 320 A | 520 A | 2 V | 150 mA | 9200A, 10100A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
TD250N16KOFHPSA1SCR MODULE 1800V 410A MODULE |
3 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 410 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD215N22KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB50AT |
6 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 215 A | 410 A | 2 V | 200 mA | 7000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD224-20IO1MOD THYRISTOR/DIODE 2000V Y1-CU |
2 | - |
|
Datasheet | - | Y1-CU | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2 kV | 240 A | 400 A | 2 V | 150 mA | 8000A, 8500A | 200 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
VS-VSKT250-16PBFMOD THY/THY 1600V 250A MAGNA-PAK |
4 | - |
|
Datasheet | - | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 150°C (TJ) | - | - | Chassis Mount |
|
TT215N22KOFHPSA1SCR MODULE 2.2KV 410A MODULE |
6 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 2.2 kV | 215 A | - | 2 V | 200 mA | 7000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TT330N16AOFHPSA1SCR MODULE 1.6KV 520A MODULE |
5 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 330 A | 520 A | 2 V | 200 mA | 12500A @ 50Hz | 300 mA | -40°C ~ 130°C | - | - | Chassis Mount |
|
TZ430N22KOFHPSA1THYRISTOR MODULE 2200V 430A |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 1 SCR | 2.4 kV | 669 A | 1050 A | 2.2 V | 250 mA | - | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
ETD540N22P60HPSA1THYR / DIODE MODULE DK |
2 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 542 A | 700 A | 2.2 V | 250 mA | 16300A @ 50Hz | 300 mA | -40°C ~ 135°C (TC) | - | - | Chassis Mount |
|
TD500N16KOFHPSA2SCR MODULE 1800V 900A MODULE |
3 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 500 A | 900 A | 2.2 V | 250 mA | 17000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TZ240N36KOFHPSA1SCR MODULE 3.6KV 700A MODULE |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Single | 1 SCR | 3.6 kV | 240 A | 700 A | 1.5 V | 250 mA | 6100A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
TD520N22KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB60AT |
2 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 520 A | 1050 A | 2.2 V | 250 mA | 18000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|

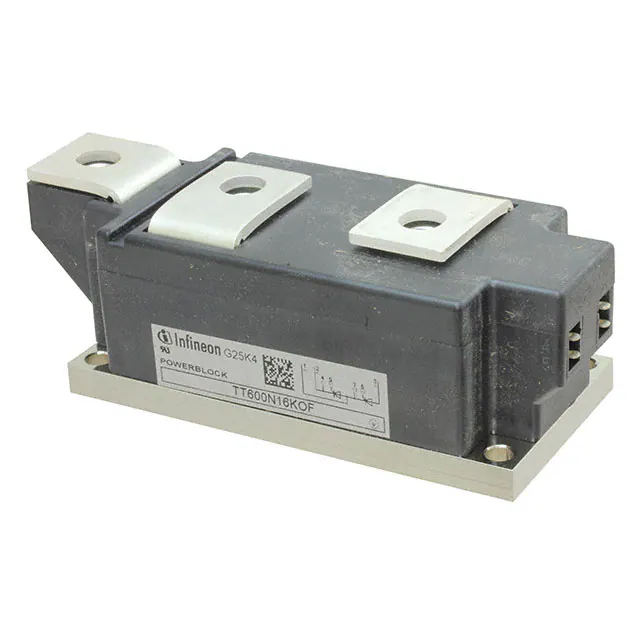

TT600N16KOFHPSA2SCR MODULE 1.6KV 1050A MODULE |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 600 A | 1050 A | 2 V | 250 mA | - | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
TD700N22KOFTIMHPSA1THYR / DIODE MODULE DK BG-PB60AT |
2 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 700 A | 1050 A | 2.2 V | 250 mA | 20400A @ 50Hz | 300 mA | 135°C (TJ) | - | - | Chassis Mount |
|
|
TZ800N18KOFHPSA3SCR MODULE 1.8KV 1500A MODULE |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Single | 1 SCR | 1.8 kV | 819 A | 1500 A | 2 V | 250 mA | 35000A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
|
TZ630N28KOFHPSA1SCR MODULE 2.8KV 1500A MODULE |
2 | - |
|
Datasheet | - | Module | Bulk | Active | Single | 1 SCR | 2.8 kV | 955 A | 1500 A | 2 V | 250 mA | 25.5A @ 50Hz | 500 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
MCD26-08IO8BMOD THYRISTOR/DIO 800V TO-240AA |
16 | - |
|
Datasheet | - | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC19-14IO1BMOD THYRISTOR DUAL 1400V TO240AA |
36 | - |
|
Datasheet | - | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 25 A | 40 A | 1.5 V | 100 mA | 400A, 420A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCD26-16IO8BMOD THYRISTOR/DIO 1600V TO-240AA |
36 | - |
|
Datasheet | - | TO-240AA | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 32 A | 50 A | 1.5 V | 100 mA | 520A, 560A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCC44-08IO1BMOD THYRISTOR DUAL 800V TO-240AA |
33 | - |
|
Datasheet | - | TO-240AA | Box | Active | Series Connection - All SCRs | 2 SCRs | 800 V | 51 A | 80 A | 1.5 V | 100 mA | 1150A, 1230A | 200 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
What SCRs - Modules components can I source from EGOO?
You can browse available SCRs - Modules product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete SCRs - Modules parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
