SCRs - Modules
Browse available SCRs - Modules components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCC255-18IO1MOD THYRISTOR DUAL 1800V Y1-CU |
2,438 | - |
|
Datasheet | - | Y1-CU | Box | Active | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 250 A | 450 A | 2 V | 150 mA | 9000A, 9600A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|
M505015FMODULE SCR 50A 480VAC |
2,734 | - |
|
Datasheet | M50 | Module | Bulk | Active | Bridge, Single Phase - SCRs/Diodes (Layout 1) | 2 SCRs, 2 Diodes | 1.2 kV | - | - | 3 V | 150 mA | 600A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
T9G0101203DHSCR PHASE CTRL MOD 1000V 1200A |
4,354 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1 kV | 1200 A | 1880 A | 3 V | 200 mA | 24650A, 27000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
TD250N18KOFHPSA1SCR MODULE 1800V 410A MODULE |
3,568 | - |
|
Datasheet | - | Module | Tray | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.8 kV | 250 A | 410 A | 2 V | 200 mA | 8000A @ 50Hz | 300 mA | -40°C ~ 125°C | - | - | Chassis Mount |
|
MCD310-22IO1MOD THYRISTOR/DIODE 2200V Y2-DCB |
2,779 | - |
|
Datasheet | - | Y2-DCB | Box | Active | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 2.2 kV | 320 A | 500 A | 2 V | 150 mA | 9200A, 9800A | 150 mA | -40°C ~ 140°C (TJ) | - | - | Chassis Mount |
|

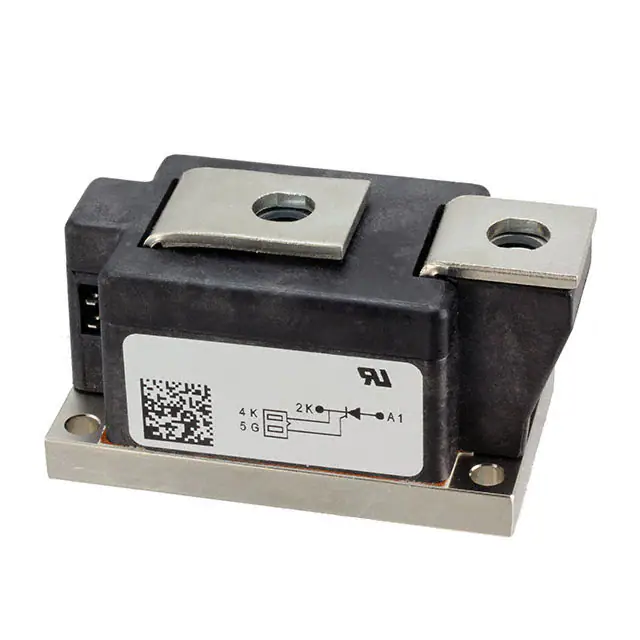

LS431650SCR MOD ISO SGL 1600V 500A |
9,190 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Active | Single | 1 SCR | 1.6 kV | 575 A | 900 A | 3 V | 200 mA | 16300A, 17000A | - | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
T9G0121003DHSCR PHASE CTRL MOD 1200V 1000A |
3,616 | - |
|
Datasheet | - | TO-200 Variation | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.2 kV | 1000 A | 1590 A | 3 V | 200 mA | 15500A, 17000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
F1857SD1000MODULE SCR/DIODE 55A 380VAC |
4,511 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
F1857SDK1000MODULE SCR/DIODE 55A 380VAC |
9,707 | - |
|
Datasheet | F18 | Module | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1 kV | - | - | 3 V | 150 mA | 1500A @ 60Hz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
VSKT170-12SCR DBL HISCR 1200V 170A MAGNPAK |
9,002 | - |
|
Datasheet | - | 3-MAGN-A-PAK™ | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 170 A | 377 A | 3 V | 200 mA | 5100A, 5350A | 500 mA | - | - | - | Chassis Mount |
|
VS-VSKL230-12PBFMODULE DIODE 230A MAGN-A-PAK |
5,889 | - |
|
Datasheet | - | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.2 kV | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL230-16PBFMODULE DIODE 230A MAGN-A-PAK |
8,439 | - |
|
Datasheet | - | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL250-08PBFMODULE DIODE 250A MAGN-A-PAK |
6,528 | - |
|
Datasheet | - | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKL250-14PBFMODULE DIODE 250A MAGN-A-PAK |
5,326 | - |
|
Datasheet | - | MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH230-04PBFMODULE DIODE 230A MAGN-A-PAK |
5,044 | - |
|
Datasheet | - | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH230-08PBFMODULE DIODE 230A MAGN-A-PAK |
7,243 | - |
|
Datasheet | - | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 800 V | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH230-14PBFMODULE DIODE 230A MAGN-A-PAK |
3,085 | - |
|
Datasheet | - | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.4 kV | 230 A | 510 A | 3 V | 200 mA | 7500A, 7850A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH250-08PBFMODULE DIODE 250A MAGN-A-PAK |
7,695 | - |
|
Datasheet | - | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH250-14PBFMODULE DIODE 250A MAGN-A-PAK |
3,219 | - |
|
Datasheet | - | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKH250-12PBFMODULE DIODE 250A MAGN-A-PAK |
7,012 | - |
|
Datasheet | - | MAGN-A-PAK (3) | Bulk | Last Time Buy | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 400 V | 250 A | 555 A | 3 V | 200 mA | 8500A, 8900A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
What SCRs - Modules components can I source from EGOO?
You can browse available SCRs - Modules product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete SCRs - Modules parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
