SCRs - Modules
Browse available SCRs - Modules components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Structure | Number of SCRs, Diodes | Voltage - Off State | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | Current - Hold (Ih) (Max) | Operating Temperature | Grade | Qualification | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VSKT500-16SCR DBL 2SCR 1600V 500A MAGNAPAK |
8,515 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Obsolete | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 500 A | 785 A | 3 V | 200 mA | 17800A, 18700A | 500 mA | - | - | - | Chassis Mount |
|
VS-VSKT500-18PBFMODULE THY 500A SMAGN-A-PAK |
9,127 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - All SCRs | 2 SCRs | 1.8 kV | 500 A | 785 A | 3 V | 200 mA | 17800A, 18700A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
|
VS-VSKT500-20PBFMODULE THY 500A SMAGN-A-PAK |
2,092 | - |
|
Datasheet | - | SUPER MAGN-A-PAK | Bulk | Last Time Buy | Series Connection - All SCRs | 2 SCRs | 2 kV | 500 A | 785 A | 3 V | 200 mA | 17800A, 18700A | 500 mA | -40°C ~ 130°C (TJ) | - | - | Chassis Mount |
|
STT2200N16P55XPSA2THYR / DIODE MODULE DK |
5,080 | - |
|
Datasheet | TT | Module | Tray | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.6 kV | - | - | 2 V | 200 mA | 21000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
C782LETHYRISTOR DISC 2500V 2300A TBK |
9,124 | - |
|
Datasheet | - | TO-200AF | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2.5 kV | 2300 A | 3610 A | 4.5 V | 250 mA | 32000A, 35000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
C783CCTHYRISTOR DISC 3300V 1800A TBK |
4,380 | - |
|
Datasheet | - | TO-200AF | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 3.3 kV | 1800 A | 2826 A | 4.5 V | 250 mA | 27000A, 29000A | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
MCK700-18IO1WSCR THYRISTOR CA 1800V WC-500 |
8,527 | - |
|
Datasheet | - | WC-500 | Tray | Obsolete | Common Cathode - All SCRs | 2 SCRs | 1.8 kV | 700 A | 1331 A | - | - | 18200 @ 50MHz | - | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PS432215SCR MODULE SINGLE |
3,496 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 2.2 kV | 1500 A | 3300 A | 4.5 V | 400 mA | 86590A, 94960A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
STT2200N18P55XPSA2THYR / DIODE MODULE DK |
5,899 | - |
|
Datasheet | TT | Module | Tray | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.8 kV | - | - | 2 V | 200 mA | 21000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
STT2200N18P55XPSA1THYR / DIODE MODULE DK |
9,007 | - |
|
Datasheet | - | Module | Tray | Active | 1-Phase Controller - All SCRs | 2 SCRs | 1.8 kV | - | - | 2 V | 200 mA | 21000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
PD420607SCR MOD ISO DUAL 600V 700A |
9,338 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 600 V | 700 A | 1100 A | 4.5 V | 200 mA | 63000A, 69000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|

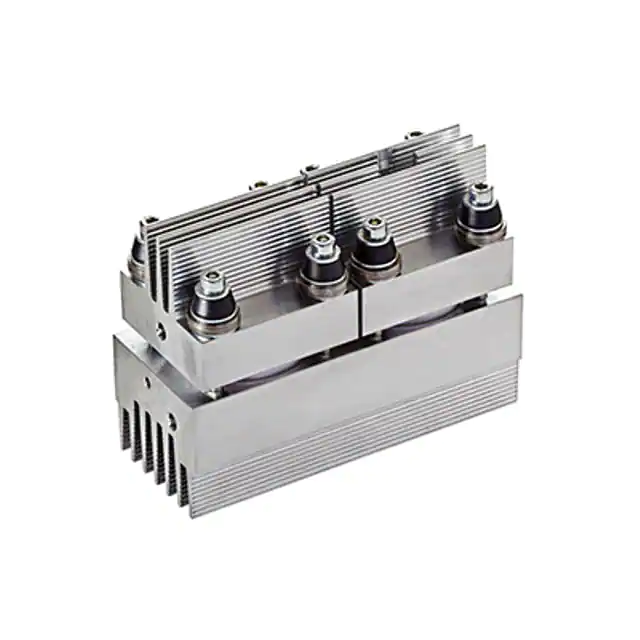

STT2200N16P55XPSA1SCR MODULE POWERBLOCK PS55-1 |
9,670 | - |
|
Datasheet | - | Module | Tray | Discontinued at Digi-Key | 1-Phase Controller - All SCRs | 2 SCRs | 1.6 kV | - | - | 2 V | 200 mA | 21000A @ 50Hz | 300 mA | 125°C (TJ) | - | - | Chassis Mount |
|
|
PD430807SCR MOD ISO DUAL 800V 700A |
2,339 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 800 V | 700 A | 1100 A | 4.5 V | 200 mA | 63000A, 69000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PS431815SCR MODULE SGL 1800V 1500A |
4,682 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Single | 1 SCR | 1.8 kV | 1500 A | 2355 A | 4.5 V | 400 mA | 71000A, 78000A | 600 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PA431207SCR MOD AC-SW ISO 1200V 700A |
6,395 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 700 A | 1550 A | 4.5 V | 200 mA | 63000A, 69000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PD431207SCR MOD ISO DUAL 1200V 700A |
7,929 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.2 kV | 700 A | 1100 A | 4.5 V | 200 mA | 63000A, 69000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PA431407SCR MOD AC-SW ISO 1400V 700A |
2,460 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.4 kV | 700 A | 1550 A | 4.5 V | 200 mA | 63000A, 69000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PD421607SCR MOD ISO DUAL 1600V 700A |
2,512 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - SCR/Diode | 1 SCR, 1 Diode | 1.6 kV | 700 A | 1100 A | 4.5 V | 200 mA | 63000A, 69000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
|
PA431607SCR MOD AC-SW ISO 1600V 700A |
3,183 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1550 A | 4.5 V | 200 mA | 63000A, 69000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
|
PD431607SCR MODULE ISO DUAL 1600V 700A |
6,380 | - |
|
Datasheet | - | POW-R-BLOK™ Module | Bulk | Discontinued at Digi-Key | Series Connection - All SCRs | 2 SCRs | 1.6 kV | 700 A | 1550 A | 4.5 V | 200 mA | 69000A, 63000A | 300 mA | -40°C ~ 125°C (TJ) | - | - | Chassis Mount |
SCRs - Modules FAQ
What SCRs - Modules components can I source from EGOO?
You can browse available SCRs - Modules product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete SCRs - Modules parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
