SCRs
Browse available SCRs components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Off State | Voltage - Gate Trigger (Vgt) (Max) | Current - Gate Trigger (Igt) (Max) | Voltage - On State (Vtm) (Max) | Current - On State (It (AV)) (Max) | Current - On State (It (RMS)) (Max) | Current - Hold (Ih) (Max) | Current - Off State (Max) | Current - Non Rep. Surge 50, 60Hz (Itsm) | SCR Type | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S6010LS2TPSCR 600V 10A TO220AB-L |
3,785 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 600 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220AB-L |
|
S6006DS2RPSCR 600V 6A TO252 |
9,108 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 3.8 A | 6 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | TO-252 (DPAK) |
|
TN22-1500HSCR 400V 2A IPAK |
4,872 | - |
|
Datasheet | - | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Active | 400 V | 3 V | 1.5 mA | 3.1 V | 1.8 A | 2 A | 175 mA | 100 µA | 20A, 22A | Standard Recovery | -40°C ~ 110°C | - | - | Through Hole | TO-251 (IPAK) |
|
SK006DRPSCR 1KV 6A TO252 |
4,674 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 1 kV | 1.5 V | 15 mA | 1.6 V | 3.8 A | 6 A | 30 mA | 20 µA | 83A, 100A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-252 (DPAK) |
|
VS-16TTS12S-M3SCR 1.2KV 16A TO263AB |
8,930 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 1.2 kV | 2 V | 60 mA | 1.4 V | 10 A | 16 A | 150 mA | 10 mA | 200A @ 50Hz | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-263AB (D2PAK) |
|
|
SJ6004DS2RPSCR 600V 4A TO252 |
19,455 | - |
|
Datasheet | SJ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 2.56 A | 4 A | 6 mA | 5 µA | 25A, 30A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
S4012RTPSCR 400V 12A TO220 |
119 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 400 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 10 µA | 100A, 120A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 Non-Isolated Tab |
|
MCR8SMGSCR 600V 8A TO220AB |
321 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 600 V | 1 V | 200 µA | 1.8 V | - | 8 A | 6 mA | 10 µA | 80A @ 60Hz | Sensitive Gate | -40°C ~ 110°C | - | - | Through Hole | TO-220AB |
|
TYN225RGSCR 200V 25A TO220AB |
959 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 200 V | 1.5 V | 40 mA | 1.6 V | 16 A | 25 A | 50 mA | 5 µA | 250A, 260A | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220 |
|
TN5015H-6TSCR 600V 50A TO220AB |
556 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.3 V | 15 mA | 1.65 V | 30 A | 50 A | 60 mA | 10 µA | 493A, 450A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220 |
|
|
MCR12DSN-1GSCR 800V 12A IPAK |
3,065 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Box | Active | 800 V | 1 V | 200 µA | 1.9 V | 7.6 A | 12 A | 6 mA | 10 µA | 100A @ 60Hz | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | TO-252 (DPAK) |
|
|
MCR69-2GSCR 50V 25A TO220AB |
4,780 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 50 V | 1.5 V | 30 mA | 1.8 V | 16 A | 25 A | 50 mA | 10 µA | 300A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
2N6402GSCR 200V 16A TO220AB |
925 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 200 V | 1.5 V | 30 mA | 1.7 V | 10 A | 16 A | 40 mA | 10 µA | 160A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
TN5015H-6GSCR 600V 50A D2PAK |
998 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | 600 V | 1.3 V | 15 mA | 1.65 V | 30 A | 50 A | 60 mA | 10 µA | 493A, 450A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
S6010DS2RPSCR 600V 10A TO252 |
9,027 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 800 mV | 200 µA | 1.6 V | 6.4 A | 10 A | 6 mA | 5 µA | 83A, 100A | Sensitive Gate | -40°C ~ 110°C | - | - | Surface Mount | TO-252 (DPAK) |
|
|
2N6401GSCR 100V 16A TO220AB |
925 | - |
|
Datasheet | - | TO-220-3 | Box | Active | 100 V | 1.5 V | 30 mA | 1.7 V | 10 A | 16 A | 40 mA | 10 µA | 160A @ 60Hz | Standard Recovery | -40°C ~ 125°C | - | - | Through Hole | TO-220AB |
|
|
S8012DRPSCR 800V 12A TO252 |
18,961 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 800 V | 1.5 V | 20 mA | 1.6 V | 7.6 A | 12 A | 40 mA | 20 µA | 100A, 120A | Standard Recovery | -40°C ~ 125°C | - | - | Surface Mount | TO-252 (DPAK) |
|
|
VS-12TTS08SLHM3SCR 800V 12.5A TO263 |
2,301 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 800 V | 1 V | 15 mA | 1.2 V | 8 A | 12.5 A | 30 mA | 5 mA | 110A @ 50Hz | Standard Recovery | -40°C ~ 125°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-263AB (D2PAK) |
|

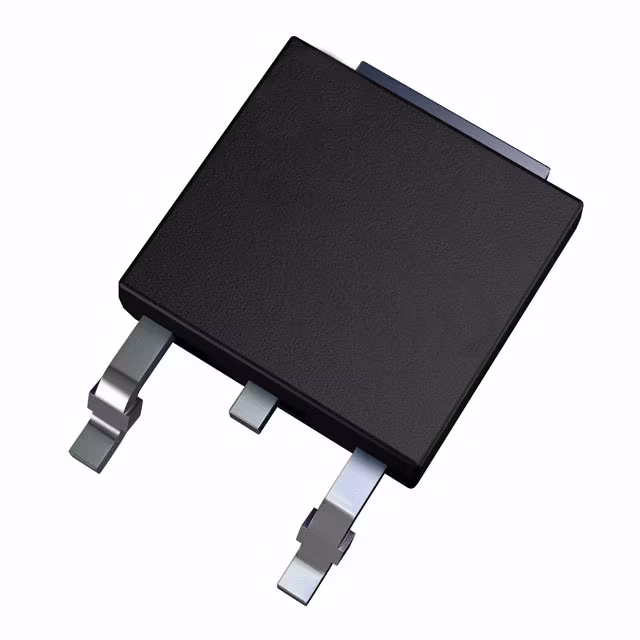

SV6016D1RPSCR 16A 600V HI TEMP TO-252 |
4,707 | - |
|
Datasheet | SV | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | 600 V | 1.5 V | 6 mA | 1.6 V | 10.2 A | 16 A | 40 mA | 10 µA | 180A, 200A | Sensitive Gate | -40°C ~ 150°C (TJ) | - | - | Surface Mount | TO-252 (DPAK) |
|
|
TN5015H-6ISCR 600V 50A TO220AB |
665 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 600 V | 1.3 V | 15 mA | 1.65 V | 30 A | 50 A | 60 mA | 10 µA | 493A, 450A | Standard Recovery | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB Insulated |
