TVS Diodes
Browse available TVS Diodes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IP4223CZ6,125TVS DIODE 6TSOP |
6,513 | - |
|
Datasheet | SC-74, SOT-457 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | - | 6V | - | - | - | Yes | General Purpose | 1.5pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSOP |
|
IP4285CZ6-TY,125TVS DIODE 5.5VWM 4.2VC 6TSSOP |
7,499 | - |
|
Datasheet | 6-TSSOP, SC-88, SOT-363 | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5.5V | 6V | 4.2V (Typ) | 4A (8/20µs) | - | Yes | General Purpose | 0.85pF @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-TSSOP |
|
PRTR5V0U2AX/S911,2TVS DIODE 5.5VWM SOT143B |
7,955 | - |
|
Datasheet | TO-253-4, TO-253AA | - | Tape & Reel (TR) | Active | Steering (Rail to Rail) | 2 | - | 5.5V (Max) | 6V | - | - | - | Yes | - | 1.8pF @ 1MHz | -40°C ~ 85°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOT-143B |
|
SM16LC08/TR13TVS DIODE 8VWM 16SO |
7,279 | - |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | 8 | - | 8V | - | - | - | - | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
SM16LC08C/TR13TVS DIODE 8VWM 13.4VC 16SO |
2,531 | - |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 8 | 8V | 8.5V | 13.4V | 5A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
|
SM16LC08CE3/TR13TVS DIODE 8VWM 13.4VC 16SO |
4,820 | - |
|
Datasheet | 16-SOIC (0.154", 3.90mm Width) | - | Tape & Reel (TR) | Active | Zener | - | 8 | 8V | 8.5V | 13.4V | 5A (8/20µs) | 300W | No | General Purpose | 25pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 16-SO |
|
SL05E3/TR7TVS DIODE SOT23 |
6,507 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23 |
|
|
SL12E3/TR7TVS DIODE SOT23 |
8,076 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23 |
|
|
SL15E3/TR7TVS DIODE SOT23 |
2,859 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-23 |
|
|
SM03E3/TR7TVS DIODE 3.3VWM 7VC SOT23 |
4,066 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 3.3V | 4V | 7V | 5A (8/20µs) | 300W | No | General Purpose | 600pF @ 1MHz, 300pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM05E3/TR7TVS DIODE 5VWM 9.8VC SOT23 |
9,757 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 5V | 6V | 9.8V | 5A (8/20µs) | 300W | No | General Purpose | 400pF @ 1MHz, 200pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM12E3/TR7TVS DIODE 12VWM 19VC SOT23 |
2,584 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 12V | 13.3V | 19V | 5A (8/20µs) | 300W | No | General Purpose | 160pF @ 1MHz, 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM15E3/TR7TVS DIODE 15VWM 24VC SOT23 |
5,649 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 15V | 16.7V | 24V | 5A (8/20µs) | 300W | No | General Purpose | 130pF @ 1MHz, 65pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM24E3/TR7TVS DIODE 24VWM 43VC SOT23 |
2,495 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 24V | 26.7V | 43V | 5A (8/20µs) | 300W | No | General Purpose | 80pF @ 1MHz, 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
SM36E3/TR7TVS DIODE 36VWM 60VC SOT23 |
9,529 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Tape & Reel (TR) | Obsolete | Zener | 2 | - | 36V | 40V | 60V | 5A (8/20µs) | 300W | No | General Purpose | 70pF @ 1MHz, 35pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-23 |
|
|
MAD1108E3/TUTVS DIODE 75VWM 16DIP |
6,158 | - |
|
Datasheet | 16-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Steering (Rail to Rail) | 8 | - | 75V (Max) | 90V | - | - | - | No | Ethernet | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | 16-DIP |
|
|
MAD1109E3/TUTVS DIODE 75VWM 14DIP |
8,205 | - |
|
Datasheet | 14-DIP (0.300", 7.62mm) | - | Tube | Obsolete | Steering (Rail to Rail) | 7 | - | 75V (Max) | 90V | - | - | - | No | Ethernet | 1.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | 14-DIP |
|
|
VBUS054CD-FHI-GS08TVS DIODE 5VWM 13VC LLP2513-11L |
4,552 | - |
|
Datasheet | 10-UDFN Exposed Pad | - | Tape & Reel (TR) | Obsolete | Steering (Rail to Rail) | 4 | - | 5V (Max) | 6.9V | 13V | 3.5A (8/20µs) | 45W | Yes | General Purpose | 0.8pF @ 1MHz | -40°C ~ 125°C (TJ) | - | - | Surface Mount | LLP2513-11L |
Schottky.jpg "ESDBL5V0AE1-TP")
|
ESDBL5V0AE1-TPTVS DIODE 5VWM 12.5VC 0201 |
4,144 | - |
|
Datasheet | 0201 (0603 Metric) | - | Tape & Reel (TR) | Obsolete | Zener | - | 1 | 5V (Max) | 5.8V | 12.5V | 5A (8/20µs) | 62.5W | No | General Purpose | 10pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 0201 |
|

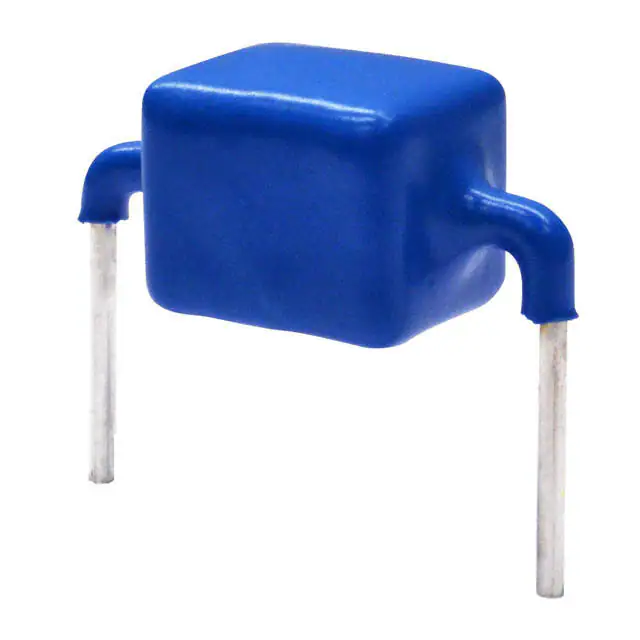

PTVS3-076CTVS DIODE 76VWM 130VC AXIAL |
5,067 | - |
|
Datasheet | Axial, Right Angle Bend (24.15mm Center) | PTVS | Bulk | Obsolete | Zener | - | 1 | 76V (Max) | 85V | 140V | 3000A (3kA) (8/20µs) | - | No | General Purpose | 1700pF @ 10kHz | -55°C ~ 150°C (TJ) | - | - | Through Hole | Axial |
TVS Diodes FAQ
What TVS Diodes components can I source from EGOO?
You can browse available TVS Diodes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete TVS Diodes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
