TVS Diodes
Browse available TVS Diodes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Unidirectional Channels | Bidirectional Channels | Voltage - Reverse Standoff (Typ) | Voltage - Breakdown (Min) | Voltage - Clamping (Max) @ Ipp | Current - Peak Pulse (10/1000µs) | Power - Peak Pulse | Power Line Protection | Applications | Capacitance @ Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "ESD3B5CM")
|
ESD3B5CMTVS DIODE 5VWM 9.8VC SOD323 |
3,000,000 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.8V | - | 1A (8/20µs) | 400W | Yes | General Purpose | 40pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
SD18TVS DIODE 18VWM 29VC SOD323 |
3,000,000 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 18V (Max) | 20V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 100pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
SD24TVS DIODE 24VWM 43VC SOD323 |
3,000,000 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 24V (Max) | 26.7V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 80pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
ESD0301BLTVS DIODE 3.3VWM 12VC DFN1006 |
3,000,000 | - |
|
Datasheet | DFN1006 | DFN1006 | Tape & Reel (TR) | Active | Zener | - | 1 | 3.3V (Max) | 4.2V | - | 1A (8/20µs) | 100W | Yes | General Purpose | 0.5pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006 |
|
|
SD12TVS DIODE 12VWM 19VC SOD323 |
3,000,000 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 12V (Max) | 13.3V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 130pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|

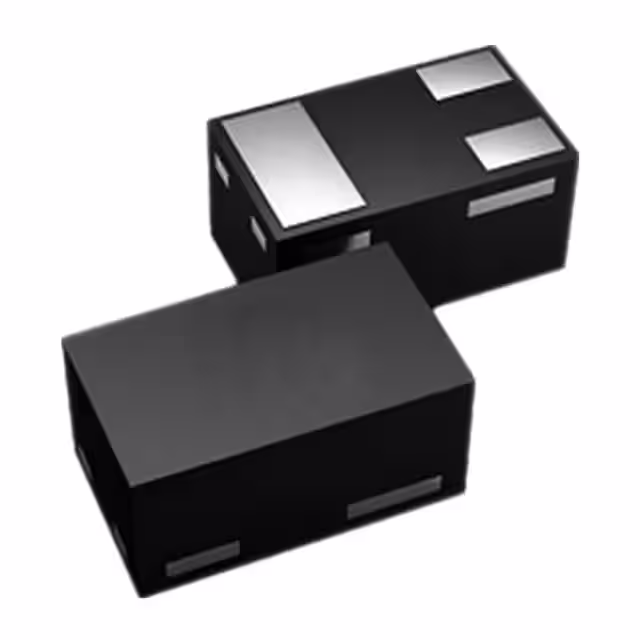

ESD0302LTVS DIODE 3.3VWM 10VC DFN1006-3L |
3,000,000 | - |
|
Datasheet | DFN1006-3L | DFN1006- 3L | Tape & Reel (TR) | Active | Zener | 2 | - | 3.3V (Max) | 4.2V | - | 1A (8/20µs) | 56W | Yes | General Purpose | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3L |
.jpg "ESD5B5CU")
|
ESD5B5CUTVS DIODE 5VWM 10.5VC SOD523 |
3,000,000 | - |
|
Datasheet | SOD-523 | - | Tape & Reel (TR) | Active | Zener | - | 1 | 5V (Max) | 5.6V | - | 1A (8/20µs) | 35W | Yes | General Purpose | 3.5pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-523 |
|
|
SD15TVS DIODE 15VWM 24VC SOD323 |
3,000,000 | - |
|
Datasheet | SC-76, SOD-323 | - | Tape & Reel (TR) | Active | Zener | 1 | - | 15V (Max) | 16.7V | - | 1A (8/20µs) | 350W | Yes | General Purpose | 120pF @ 1MHz | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-323 |
|
|
ESD0502LTVS DIODE 5VWM 10VC DFN1006-3L |
3,000,000 | - |
|
Datasheet | DFN1006-3L | DFN1006- 3L | Tape & Reel (TR) | Active | Zener | 2 | - | 5V (Max) | 6V | - | 1A (8/20µs) | 60W | Yes | General Purpose | 0.6pF @ 1MHz | -55°C ~ 125°C (TJ) | - | - | Surface Mount | DFN1006-3L |
|
PTVS14VP1UTP,115TVS DIODE 14VWM 23.2VC CFP5 |
462,000 | - |
|
Datasheet | SOD-128 | - | Bulk | Active | Zener | 1 | - | 14V | 15.6V | 23.2V | 25.9A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
SMBJ12ATRANS VOLTAGE SUPPRESSOR DIODE, |
142,441 | - |
|
Datasheet | DO-214AA, SMB | - | Bulk | Active | Zener | 1 | - | 12V | 13.3V | 19.9V | 30.15A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SMB |
|
SMBJ14CATRANS VOLTAGE SUPPRESSOR DIODE, |
126,000 | - |
|
Datasheet | DO-214AA, SMB | SMBJ | Bulk | Active | Zener | - | 1 | 14V | 15.6V | 23.2V | 25.9A | 600W | No | General Purpose | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AA (SMB) |
|
NNCD5.1E-T1B-ANNCD5.1E-T1B-A - ELECTROSTATIC D |
102,000 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 1 | - | 1.5V (Max) | 4.84V | - | - | 100W | No | General Purpose | 160pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
PTVS45VP1UTP,115TVS DIODE 45VWM 72.7VC CFP5 |
54,000 | - |
|
Datasheet | SOD-128 | - | Bulk | Active | Zener | 1 | - | 45V | 50V | 72.7V | 8.3A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
|
|
NNCD5.1F-T1B-ANNCD5.1F-T1B-A - ELECTROSTATIC D |
37,738 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 1.5V (Max) | 4.84V | - | - | 100W | No | General Purpose | 160pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-59 |
|
|
NNCD6.2E-T1B-ANNCD6.2E-T1B-A - ELECTROSTATIC D |
33,000 | - |
|
Datasheet | TO-236-3, SC-59, SOT-23-3 | - | Bulk | Obsolete | Zener | 2 | - | 3.3V | 3.1V | - | - | 100W | No | General Purpose | 220pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | 3-Mini Mold |
|
|
NNCD6.2MF-T1B-ATNNCD6.2MF-T1B-AT - LOW CAPACITAN |
20,704 | - |
|
Datasheet | SC-70, SOT-323 | - | Bulk | Obsolete | Zener | 2 | - | 3V (Max) | 5.7V | - | - | 2W | No | General Purpose | 20pF @ 1MHz | 150°C (TJ) | - | - | Surface Mount | SC-70 |
|
|
PTVS8V5P1UTP,115TVS DIODE 8.5VWM 14.4VC CFP5 |
8,938 | - |
|
Datasheet | SOD-128 | - | Bulk | Active | Zener | 1 | - | 8.5V | 9.44V | 14.4V | 41.7A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
;;2.jpg "P6KE10A")
|
P6KE10ATVS DIODE 8.5VWM 14.5VC DO15 |
8,000 | - |
|
Datasheet | DO-204AC, DO-15, Axial | - | Bulk | Active | Zener | 1 | - | 8.5V | 9.5V | 14.5V | 43A | 600W | No | General Purpose | - | -50°C ~ 175°C (TJ) | - | - | Through Hole | DO-204AC (DO-15) |
|
|
PTVS11VP1UTP,115TVS DIODE 11VWM 18.2VC CFP5 |
6,000 | - |
|
Datasheet | SOD-128 | - | Bulk | Active | Zener | 1 | - | 11V | 12.2V | 18.2V | 33A | 600W | No | - | - | -55°C ~ 185°C (TA) | Automotive | AEC-Q101 | Surface Mount | SOD-128/CFP5 |
TVS Diodes FAQ
What TVS Diodes components can I source from EGOO?
You can browse available TVS Diodes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete TVS Diodes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
