Single Zener Diodes
Compare the current Single Zener Diodes Zener selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMAJ4745AQ-TPDIODE ZENER 16V 1W DO214AC |
15,000 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 16 V | ±5% | 1 W | 16 Ohms | 5 µA @ 12.2 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ4751AQ-TPDIODE ZENER 30V 1W DO214AC |
14,965 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 30 V | ±5% | 1 W | 40 Ohms | 5 µA @ 22.8 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ4747AQ-TPDIODE ZENER 20V 1W DO214AC |
7,500 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 20 V | ±5% | 1 W | 22 Ohms | 5 µA @ 15.2 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
|
|
SMAJ4753AQ-TPDIODE ZENER 36V 1W DO214AC |
3,500 | - |
|
Datasheet | - | DO-214AC, SMA | Tape & Reel (TR) | Active | 36 V | ±5% | 1 W | 50 Ohms | 5 µA @ 27.4 V | 1.2 V @ 100 mA | -65°C ~ 150°C (TJ) | - | - | Surface Mount | DO-214AC (SMA) |
.jpg "1N4745-TP")
|
1N4745-TPDIODE ZENER 16V 1W DO41G |
40,000 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Tape & Reel (TR) | Discontinued at Digi-Key | 16 V | ±10% | 1 W | 16 Ohms | 5 µA @ 12.2 V | 1.2 V @ 200 mA | -65°C ~ 200°C | - | - | Through Hole | DO-41G |
|
1N6011B-TPDIODE ZENER 30V 500MW DO35 |
10,000 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Tape & Reel (TR) | Obsolete | 30 V | ±5% | 500 mW | 78 Ohms | 100 nA @ 23 V | 1.5 V @ 100 mA | -65°C ~ 200°C | - | - | Through Hole | DO-35 |
|
DL5238B-TPDIODE ZENER 8.7V 500MW MINI MELF |
2,500 | - |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 8.7 V | ±5% | 500 mW | 8 Ohms | 3 µA @ 6.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|

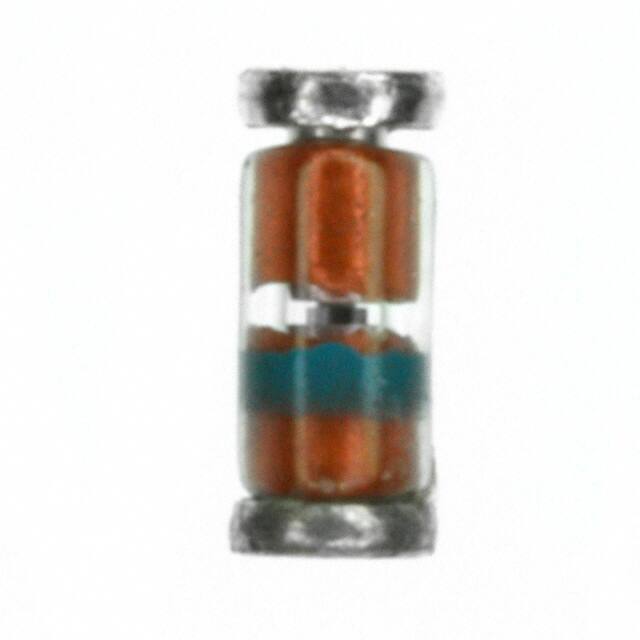

DL5251B-TPDIODE ZENER 22V 500MW MINI MELF |
2,500 | - |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 22 V | ±5% | 500 mW | 29 Ohms | 100 nA @ 17 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
DL5256B-TPDIODE ZENER 30V 500MW MINI MELF |
2,500 | - |
|
Datasheet | - | DO-213AC, MINI-MELF, SOD-80 | Tape & Reel (TR) | Obsolete | 30 V | ±5% | 500 mW | 49 Ohms | 100 nA @ 23 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Surface Mount | Mini MELF |
|
MMSZ4705-TPDIODE ZENER 18V 500MW SOD123 |
2,952 | - |
|
Datasheet | - | SOD-123 | Tape & Reel (TR) | Active | 18 V | ±5% | 500 mW | - | 50 nA @ 13.6 V | 950 mV @ 10 mA | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOD-123 |
Single Zener Diodes FAQ
How can I narrow the current Single Zener Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Zener Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
