Single Zener Diodes
Compare the current Single Zener Diodes Zener selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Voltage - Zener (Nom) (Vz) | Tolerance | Power - Max | Impedance (Max) (Zzt) | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N4964DIODE ZENER 18V 5W AXIAL |
88 | - |
|
Datasheet | - | E, Axial | Bulk | Active | 18 V | ±5% | 5 W | 4 Ohms | 5 µA @ 13.7 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Through Hole | - |
|
JANTX1N3825A-1DIODE ZENER 4.7V 1W DO41 |
40 | - |
|
Datasheet | - | DO-204AL, DO-41, Axial | Bulk | Active | 4.7 V | ±5% | 1 W | 8 Ohms | 3 µA @ 2 V | 1.2 V @ 200 mA | -65°C ~ 175°C (TA) | Military | MIL-PRF-19500/115 | Through Hole | DO-41 |
|
|
1N4981US/TRDIODE ZENER 91V 5W E-MELF |
61 | - |
|
Datasheet | - | SQ-MELF, E | Tape & Reel (TR) | Active | 91 V | ±5% | 5 W | 90 Ohms | 2 µA @ 69.2 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | E-MELF |
|
JANTX1N4960USDIODE ZENER 12V 5W D5B |
69 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 12 V | ±5% | 5 W | 2.5 Ohms | 10 µA @ 9.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|
|
1N4113DUR-1/TRDIODE ZENER 19V 500MW DO213AA |
100 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | 19 V | ±1% | 500 mW | 150 Ohms | 50 nA @ 14.5 V | 1.1 V @ 200 mA | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-213AA |
|
|
JANTX1N4977USDIODE ZENER 62V 5W D5B |
57 | - |
|
Datasheet | - | SQ-MELF, E | Bulk | Active | 62 V | ±5% | 5 W | 42 Ohms | 2 µA @ 47.1 V | 1.5 V @ 1 A | -65°C ~ 175°C | Military | MIL-PRF-19500/356 | Surface Mount | D-5B |
|

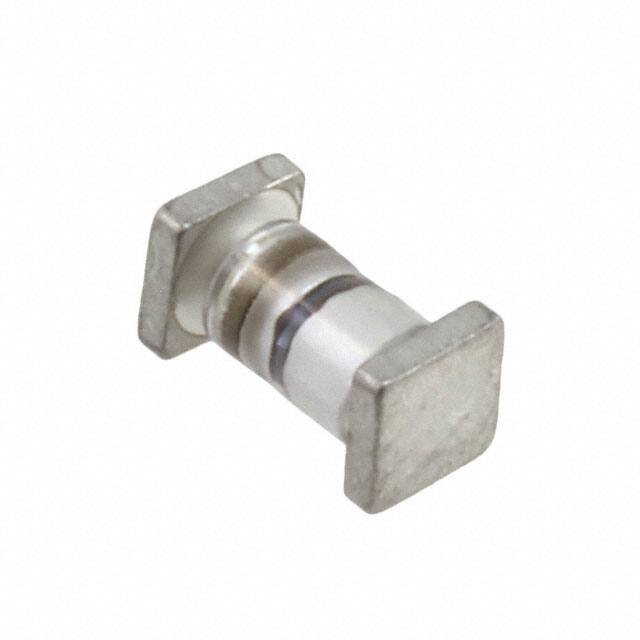

1N4481USDIODE ZENER 47V 1.5W D5A |
90 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | 47 V | ±5% | 1.5 W | 50 Ohms | 50 nA @ 37.6 V | 1.5 V @ 1 A | -65°C ~ 175°C | - | - | Surface Mount | D-5A |
|
|
1N4476USDIODE ZENER 30V 1.5W SQ-MELF |
57 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | 30 V | ±5% | 1.5 W | 20 Ohms | 50 nA @ 24 V | 1.5 V @ 1 A | -65°C ~ 175°C (TJ) | - | - | Surface Mount | A, SQ-MELF |
|
1N992ADIODE ZENER 200V 500MW DO7 |
41 | - |
|
Datasheet | - | DO-204AA, DO-7, Axial | Bulk | Discontinued at Digi-Key | 200 V | ±10% | 500 mW | 2500 Ohms | 5 µA @ 152 V | 1.1 V @ 200 mA | -65°C ~ 175°C | - | - | Through Hole | DO-7 |
|
|
1N5533CUR-1/TRDIODE ZENER 13V 500MW DO213AA |
100 | - |
|
Datasheet | - | DO-213AA | Tape & Reel (TR) | Active | 13 V | ±2% | 500 mW | 90 Ohms | 10 nA @ 11.7 V | 1.1 V @ 200 mA | -65°C ~ 175°C (TJ) | - | - | Surface Mount | DO-213AA |
Single Zener Diodes FAQ
How can I narrow the current Single Zener Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Zener Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
