Alarms, Buzzers, and Sirens
Browse available Alarms, Buzzers, and Sirens components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC648MAHBUZZER PIEZO 42.98MM PNL MNT |
3,939 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 4 ~ 19mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
SC616WXYBUZZER PIEZO 42.85MM PNL MNT |
1,082 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.325kHz | Piezo | Pin Selectable | 0.5 ~ 2.5 PPS | 62dB @ 6V, 61cm | 6 ~ 27mA | Top | -30°C ~ 65°C | - | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|

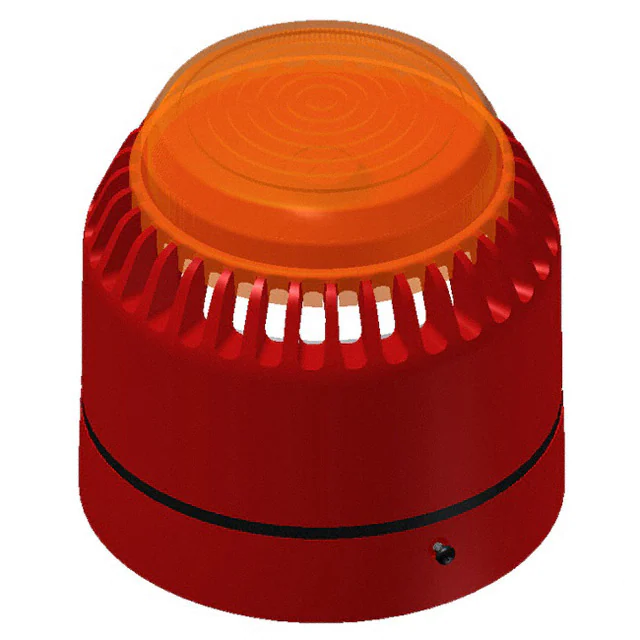

AVW-15SBR-AL-24BUZZER PIEZO 24V 92MM BASE |
4,595 | - |
|
Datasheet | AVW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 88dB @ 24V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) |
|

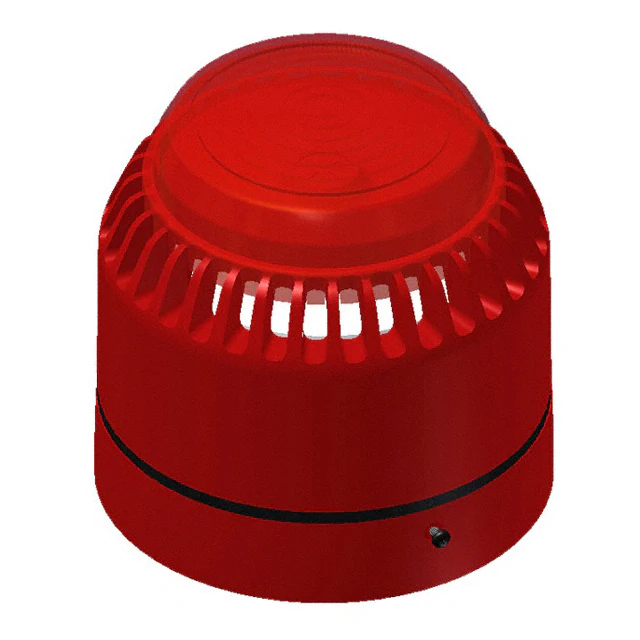

AVW-15SBR-RL-24BUZZER PIEZO 24V 92MM BASE |
2,730 | - |
|
Datasheet | AVW | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 18 ~ 28V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 88dB @ 24V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) |
|
|
ZT028LDCM1RBUZZER 30.74MM PNL MNT |
2,866 | - |
|
Datasheet | ZT | Bulk | Active | - | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT016LDSR8RBUZZER PIEZO IND PNL MNT |
1,140 | - |
|
Datasheet | - | Bulk | Active | - | - | - | 9 ~ 16V | - | - | - | - | - | - | - | - | cUL | - | - | - | Terminal Block | - |
|
|
ZT016LDSR9RBUZZER PIEZO IND PNL MNT |
4,100 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZT028LDSR9RBUZZER 22MM 20-28V LED RED |
4,084 | - |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ZT120LAFP1B22MM ALARM +LED 90-120 VAC LOUD; |
3,119 | - |
|
Datasheet | - | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
AVW-15SBR-RL-12BUZZER PIEZO 12V 92MM BASE |
2,343 | - |
|
Datasheet | AVW | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 9 ~ 18V | Multiple | Piezo | Pin Selectable, Visual Indicator | Variable | 83dB @ 12V, 100cm | - | Top | -10°C ~ 55°C | - | - | IP54 - Dust Protected, Water Resistant | Base Mount | - | 3.622" Dia (92.00mm) |
|
|
ZT120LAFP1Y22MM ALARM +LED 90-120 VAC LOUD; |
1,361 | - |
|
Datasheet | - | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT120LAFP1G22MM ALARM +LED 90-120 VAC LOUD; |
2,773 | - |
|
Datasheet | - | Retail Package | Active | Indicator, Internally Driven | AC | - | 90 ~ 120V | 3.9kHz | - | Pulse, Fast | 10 PPS | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZT028LAIC1GBUZZER PIEZO 24V 30.74MM PNL MNT |
4,785 | - |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC628MPGBUZZER PIEZO 42.98MM PNL MNT |
2,606 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
ZT028LAMP1RBUZZER 30.74MM PNL MNT |
1,673 | - |
|
Datasheet | ZT | Bulk | Active | - | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Pulse, Medium | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT028LDCM1R1522MM ALARM +LED;20-28 VDC; 85-9 |
3,551 | - |
|
Datasheet | - | Retail Package | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | Repeating every 3 Sec | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
SC628MAHBUZZER PIEZO 42.98MM PNL MNT |
3,735 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 6 ~ 28V | 4.5kHz | Piezo | Single Tone | - | 68dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
ZT028LDCM1R3022MM ALARM +LED;20-28 VDC; 85-9 |
3,023 | - |
|
Datasheet | - | Retail Package | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
ZT028LAIC2RBUZZER PIEZO 24V 30.74MM PNL MNT |
2,909 | - |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | AC, DC | 24 V | 20 ~ 28V | 3.9kHz | Piezo | Pulse, Fast, Visual Indicator | 10 PPS | 85dB @ 20V, 61cm | 50mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT120LADP3RBUZZER 30.74MM PNL MNT |
4,477 | - |
|
Datasheet | ZT | Bulk | Active | - | AC | - | 90 ~ 120V | 3.9kHz | - | Double Pulse, Slow | - | 85dB @ 90V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
Alarms, Buzzers, and Sirens FAQ
What Alarms, Buzzers, and Sirens components can I source from EGOO?
You can browse available Alarms, Buzzers, and Sirens product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Alarms, Buzzers, and Sirens parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
