Alarms, Buzzers, and Sirens
Browse available Alarms, Buzzers, and Sirens components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZT028LACM1R3022MM ALARM+LED;20-28 VAC/DC; 85 |
1,742 | - |
|
Datasheet | - | Retail Package | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Chime | Repeating every 3 Sec | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
ZT028LACM1R1522MM ALARM+LED;20-28 VAC/DC; 85 |
1,209 | - |
|
Datasheet | - | Retail Package | Active | Indicator, Internally Driven | AC, DC | - | 20 ~ 28V | 3.9kHz | - | Chime | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
|
3SU12006LB101AA0BUZZER 24V 22.3MM PNL MNT |
3,823 | - |
|
Datasheet | 3SU1 | Box | Active | - | AC, DC | 24 V | - | 4.5kHz | - | Single Tone | - | 75dB @ 24V, 10cm | 28mA | Side | -25°C ~ 70°C | - | - | IP20, IP66, IP67, IP69 | Panel Mount | Screw Terminals | 0.878" Dia (22.30mm) |
|

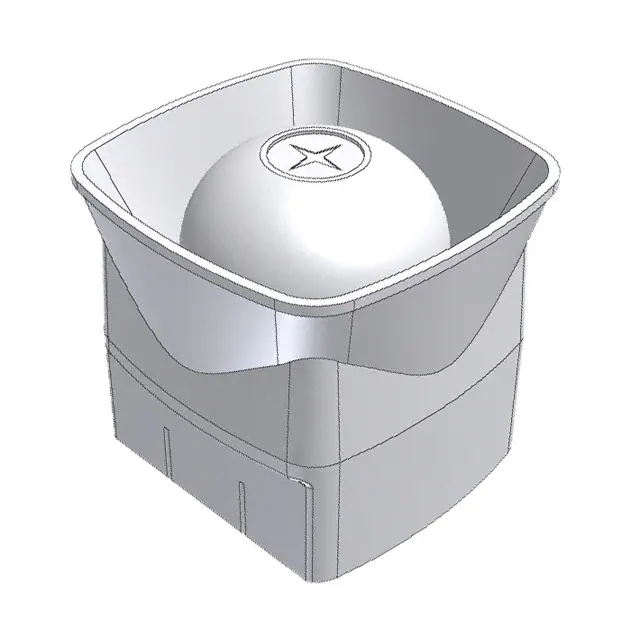

AW-30SBWBUZZER PIEZO 24V 109X109MM BASE |
2,486 | - |
|
Datasheet | AW | Bulk | Obsolete | Indicator, Internally Driven | DC | 24 V | 9 ~ 28V | Multiple | Piezo | Pin Selectable | Variable | 108dB @ 24V, 100cm | 191 ~ 260mA | Top | -25°C ~ 55°C | - | - | IP42 | Base Mount | - | 4.291" L x 4.291" W (109.00mm x 109.00mm) |
|
|
SC628MHPBUZZER PIEZO 42.98MM PNL MNT |
3,961 | - |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 4.5kHz | Piezo | Pulse, Fast | 2 ~ 10 PPS | 70dB @ 6V, 61cm | 4 ~ 16mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
EB3P-ZUN12CN30MM BUZZER INTRINSICALLY-SAFE |
3,348 | - |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
15300060BUZZER SIREN BWM 115-230V |
3,857 | - |
|
Datasheet | - | Box | Active | - | - | - | 115 ~ 230V | - | - | Siren, Alternating Continuous Tone | - | - | - | - | -25°C ~ 50°C | - | - | IP66 - Dust Tight, Water Resistant | - | Screw Terminal | - |
|
|
XVSV9MBNBUZZER 105MMX105MM DIN RAIL |
4,243 | - |
|
Datasheet | Harmony XVS | Box | Active | - | AC | - | 90 ~ 264V | - | - | - | - | - | 100mA | User Defined | 0°C ~ 50°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) |
|
|
XVSV9BWNBUZZER 105MMX105MM DIN RAIL |
4,645 | - |
|
Datasheet | Harmony XVS | Box | Active | - | DC | - | 10 ~ 30V | - | - | - | - | - | 160mA | User Defined | -10°C ~ 55°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) |
|
|
XVSV9MWNBUZZER 105MMX105MM DIN RAIL |
1,496 | - |
|
Datasheet | Harmony XVS | Box | Active | - | AC | - | 90 ~ 264V | - | - | - | - | - | 100mA | User Defined | 0°C ~ 50°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) |
|
|
XVSV9BBPBUZZER 105MMX105MM DIN RAIL |
4,544 | - |
|
Datasheet | Harmony XVS | Box | Active | - | DC | - | 10 ~ 30V | - | - | - | - | - | 160mA | User Defined | -10°C ~ 55°C | CE | - | IP20, IP65 | DIN Rail | Wire Leads | 4.134" L x 4.134" W (105.00mm x 105.00mm) |
|
|
SCH416RBUZZER PIEZO 42.85MM PNL MNT |
1,232 | - |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 4 ~ 16V | 2.9kHz | Piezo | Single Tone | - | 66dB @ 4V, 61cm | 4 ~ 14mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCH105RBUZZER PIEZO 42.85MM PNL MNT |
3,527 | - |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 1 ~ 5V | 2.9kHz | Piezo | Single Tone | - | 73dB @ 1V, 61cm | 3 ~ 16mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
SCH648RBUZZER PIEZO 42.85MM PNL MNT |
4,943 | - |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 10V, 61cm | 5 ~ 22mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
|
VAZ-HORN-70MM-0..100DBA-8TONEAS-INTERFACE (EXCLUDING SENSORS) |
1,132 | - |
|
Datasheet | - | Box | Active | Indicator, Internally Driven | AC, DC | 24 V | - | 900Hz, 2.8kHz | Magnetic | - | - | 82dB | 32mA | Top | -20°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | Base Mount | Terminal Block | 2.756" Dia (70.00mm) |
|
|
SCH628DRBUZZER PIEZO 42.85MM PNL MNT |
1,833 | - |
|
Datasheet | SCH | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2kHz | Piezo | Single Tone | - | 67dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | CSA, cUL, UL | - | IP66, NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
14400068BUZZER 230V |
4,768 | - |
|
Datasheet | - | Box | Active | - | - | 230 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Spring Terminal | - |
|
|
14400067BUZZER 115V |
1,342 | - |
|
Datasheet | - | Box | Active | - | - | 115 V | - | - | - | Multiple Tone | - | - | - | - | -30°C ~ 50°C | - | - | IP65 - Dust Tight, Water Resistant | - | Spring Terminal | - |
|
|
VSB110-1BUZZER PIEZO 110V 42.85MM PNL MT |
3,405 | - |
|
Datasheet | VSB | Bulk | Active | Indicator, Internally Driven | AC | 110 V | 30 ~ 120V | 800Hz, 1.2kHz | Piezo | Cuckoo | Repeating every 1.5 Sec | 80dB @ 110V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
VSB110-2BUZZER PIEZO 110V 42.85MM PNL MT |
4,001 | - |
|
Datasheet | VSB | Bulk | Active | Indicator, Internally Driven | AC | 110 V | 30 ~ 120V | 2kHz | Piezo | Chirp | Repeating every 1 Sec | 80dB @ 110V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
Alarms, Buzzers, and Sirens FAQ
What Alarms, Buzzers, and Sirens components can I source from EGOO?
You can browse available Alarms, Buzzers, and Sirens product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Alarms, Buzzers, and Sirens parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
