Angle, Linear Position Measuring
Compare the current Angle, Linear Position Measuring Position Sensors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Programmable | For Measuring | Technology | Rotation Angle - Electrical, Mechanical | Linear Range | Output | Output Signal | Actuator Type | Linearity | Resistance | Resistance Tolerance | Voltage - Supply | Mounting Type | Termination Style | Operating Temperature | Grade | Qualification | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

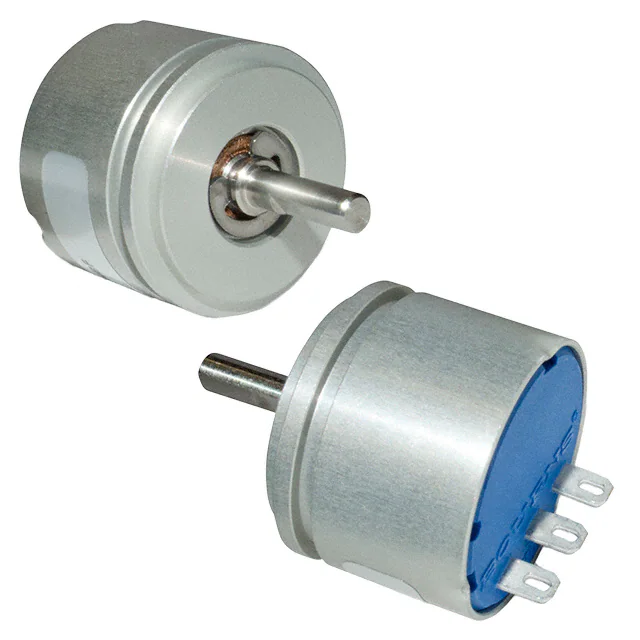

AMS22S5A1BHBFL334SENSOR ROTARY 340DEG SOLDER LUG |
4,873 | - |
|
Datasheet | Module, Flatted Shaft | AMS22S | Tray | Active | - | Rotary Position | Hall Effect | 10° ~ 340°, Continuous | - | Analog Voltage | Clockwise Increase | Flatted Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 125°C | - | - | - |
|
3382G-1-502GSENSOR ROTARY 330DEG SMD |
2,019 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 5 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
3046L-2-502SENSOR LINEAR 6.35MM WIRE LEADS |
2,802 | - |
|
Datasheet | Module, Wire Leads, Threaded | - | Bulk | Active | - | Linear Position | Resistive | - | 0 ~ 6.35mm (0 ~ 0.25") | Resistive | - | Round Shaft | ±5% | 5 kOhms | ±20% | - | Chassis Mount | Wire Leads | -55°C ~ 125°C | - | - | - |
|

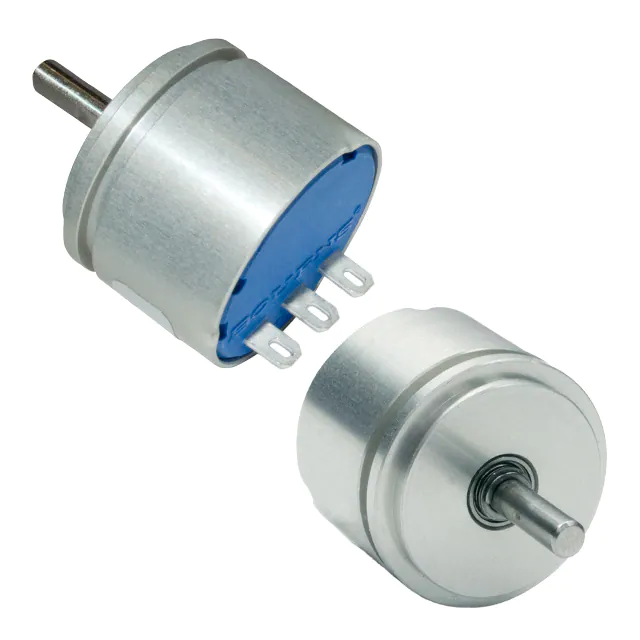

AMS22U5A1BHBRL334SENSOR ROTARY 340DEG SOLDER LUG |
3,620 | - |
|
Datasheet | Module, Round Shaft | AMS22U | Tray | Active | - | Rotary Position | Hall Effect | 10° ~ 340°, Continuous | - | Analog Voltage | Clockwise Increase | Round Shaft | ±0.5% | - | - | 5V | Panel Mount | Solder Lug | -40°C ~ 125°C | - | - | - |
|
|
3382G-1-253GSENSOR ROTARY 330DEG SMD |
2,828 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 25 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
3382G-2-502GSENSOR ROTARY 330DEG SMD |
1,902 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 5 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
|
3382G-2-503GSENSOR ROTARY 330DEG SMD |
4,027 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 50 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
3382G-2-253GSENSOR ROTARY 330DEG SMD |
1,443 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 25 kOhms | ±30% | - | Surface Mount | SMD (SMT) Tab | -40°C ~ 120°C | - | - | - |
|
TC88D-1-103ETRIMMER 10MM SMD POSITION SENS |
3,031 | - |
|
Datasheet | 4-SMD, Gull Wing | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | - | - | - | - | - |
|
3382H-1-503SENSOR ROTARY 330DEG PC PIN |
2,983 | - |
|
Datasheet | Module, PC Pins | - | Tube | Active | - | Rotary Position | Resistive | 0° ~ 330°, Continuous | - | Resistive | Clockwise Increase | Hole for Shaft | ±2% | 50 kOhms | ±30% | - | Through Hole | PC Pin | -40°C ~ 120°C | - | - | - |
Angle, Linear Position Measuring FAQ
How can I narrow the current Angle, Linear Position Measuring selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Angle, Linear Position Measuring parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
