Arrays, Signal Transformers

Compare the current Arrays, Signal Transformers Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.

For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Package/Case	Packaging	Product Status	Number of Coils	Inductance - Connected In Parallel	Inductance - Connected In Series	Tolerance	Current Rating - Parallel	Current Rating - Series	Current Saturation - Parallel	Current Saturation - Series	DC Resistance (DCR) - Parallel	DC Resistance (DCR) - Series	Shielding	Ratings	Operating Temperature	Mounting Type	Size / Dimension	Height

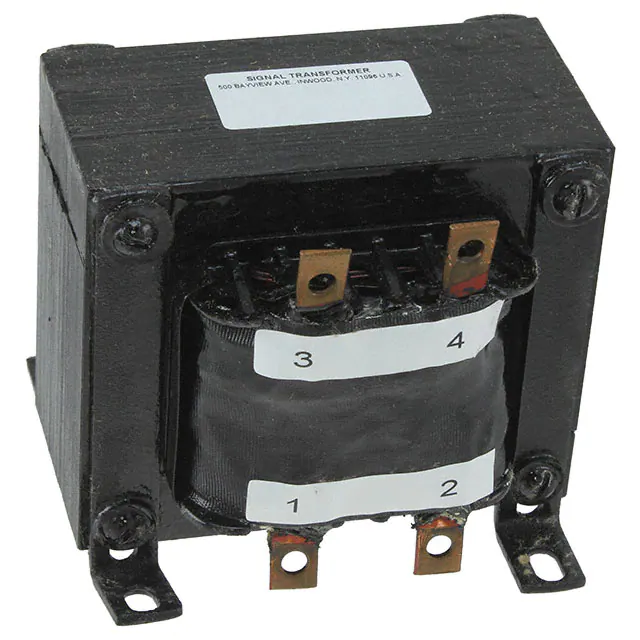

CL-25-50 INDUCT ARRAY 2COIL 300UH CHA MNT Signal Transformer	4,652	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	300 µH	1.2 mH	-	50 A	25 A	-	-	3mOhm	12mOhm	Unshielded	-	-	Chassis Mount	3.870" L x 3.374" W (98.30mm x 85.70mm)	3.374" (85.70mm)

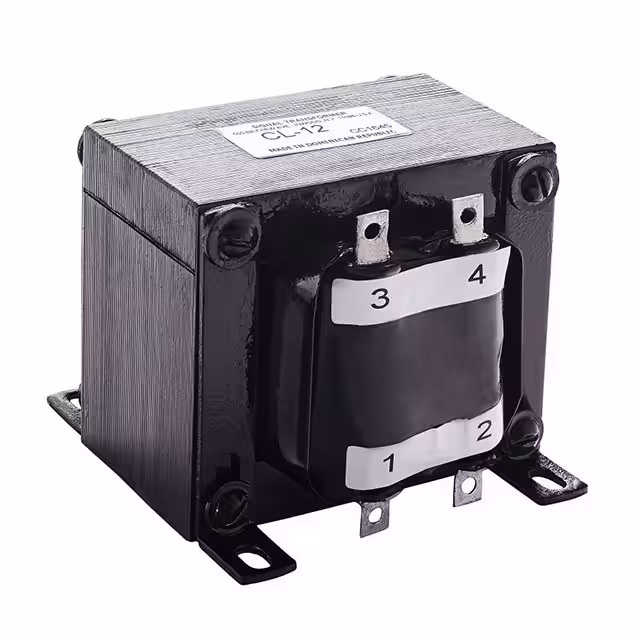

CL-12-24 INDUCT ARRAY 2COIL 1.2MH CHA MNT Signal Transformer	3,698	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	1.2 mH	4.8 mH	-	24 A	12 A	-	-	13mOhm	52mOhm	Unshielded	-	-	Chassis Mount	3.374" L x 3.563" W (85.70mm x 90.50mm)	2.811" (71.40mm)
CL-50-100 INDUCT ARRAY 2COIL 120UH CHA MNT Signal Transformer	3,553	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	120 µH	500 µH	-	100 A	50 A	-	-	1.1mOhm	4.3mOhm	Unshielded	-	-	Chassis Mount	4.500" L x 3.752" W (114.30mm x 95.30mm)	3.752" (95.30mm)
CL-2-4 INDUCT ARRAY 2 COIL 10MH CHA MNT Signal Transformer	3,960	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	10 mH	40 mH	-	4 A	2 A	-	-	180mOhm	700mOhm	Unshielded	-	-	Chassis Mount	3.126" L x 2.122" W (79.40mm x 53.90mm)	2.752" (69.90mm)
CL-6-12 INDUCT ARRAY 2 COIL 3MH CHA MNT Signal Transformer	2,912	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	3 mH	12 mH	-	12 A	6 A	-	-	38mOhm	150mOhm	Unshielded	-	-	Chassis Mount	3.374" L x 3.059" W (85.70mm x 77.70mm)	2.811" (71.40mm)
CL-1-2 INDUCT ARRAY 2 COIL 18MH CHA MNT Signal Transformer	3,071	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	18 mH	72 mH	-	2 A	1 A	-	-	350mOhm	1.4Ohm	Unshielded	-	-	Chassis Mount	2.874" L x 1.752" W (73.00mm x 44.50mm)	2.311" (58.70mm)
CL-4-8 INDUCT ARRAY 2 COIL 5MH CHA MNT Signal Transformer	4,413	-	RFQ	Datasheet	CL	Nonstandard	Box	Active	2	5 mH	20 mH	-	8 A	4 A	-	-	75mOhm	300mOhm	Unshielded	-	-	Chassis Mount	3.000" L x 2.874" W (76.20mm x 73.00mm)	2.500" (63.50mm)

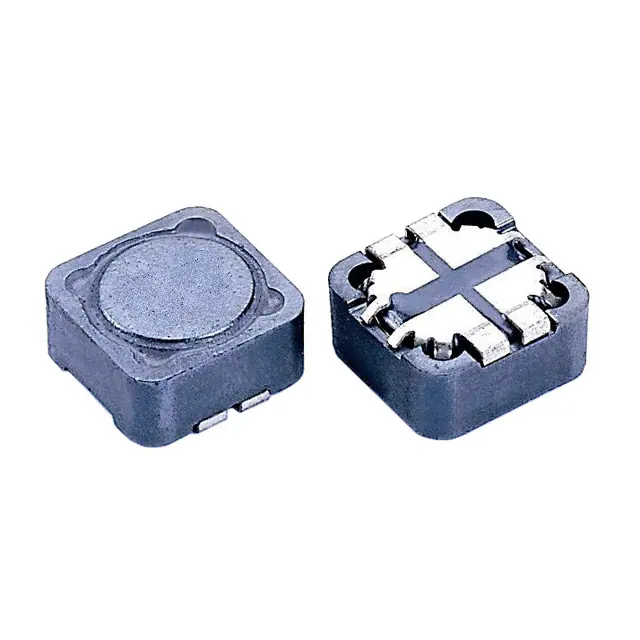

SCRHB125-1016 INDUCT ARRAY 2 COIL 7.1UH SMD Signal Transformer	2,772	-	RFQ	Datasheet	SCRHB125	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SCRHB125-1220 INDUCT ARRAY 2 COIL 9.4UH SMD Signal Transformer	2,087	-	RFQ	Datasheet	SCRHB125	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SCRHB125-6822 INDUCT ARRAY 2 COIL 5.5UH SMD Signal Transformer	1,122	-	RFQ	Datasheet	SCRHB125	-	Tape & Reel (TR)	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

Arrays, Signal Transformers FAQ

How can I narrow the current Arrays, Signal Transformers selection?

Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.

Can EGOO help source hard-to-find or obsolete Arrays, Signal Transformers parts?

Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.

Can I request a quotation for a BOM or small-batch requirement?

Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.

What information should I provide when requesting a quote?

Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
