Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRQ73-100-RINDUCT ARRAY 2 COIL 10.3UH SMD |
38,053 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 10.3 µH | 41.2 µH | ±20% | 2.08 A | 1.04 A | 2.47 A | 1.24 A | 65.6mOhm | 262.3mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF1260-101MINDUCT ARRAY 2 COIL 100UH SMD |
6,892 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 400 µH | ±20% | 1.78 A | 892 mA | 2.2 A | 1.1 A | 171mOhm Max | 656mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
SRF1280-100MINDUCT ARRAY 2 COIL 10UH SMD |
2,967 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 6.04 A | 3.02 A | 11.2 A | 5.6 A | 24.1mOhm Max | 92.1mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
CTX33-3P-RINDUCT ARRAY 2 COIL 32.63UH SMD |
6,559 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.63 µH | 130.54 µH | ±20% | 1.3 A | 650 mA | - | - | 146mOhm Max | 571mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
744877220INDUCT ARRAY 2 COIL 22UH SMD |
4,039 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 800 mA | 400 mA | 1.8 A | 900 mA | 260mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|
CTX10-2P-RINDUCT ARRAY 2 COIL 9.83UH SMD |
550 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.83 µH | 39.3 µH | ±20% | 2.1 A | 1.05 A | - | - | 45mOhm Max | 179mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX33-2P-RINDUCT ARRAY 2 COIL 32.67UH SMD |
1,337 |
1+：$4.53000 10+：$4.09500 25+：$3.93120 50+：$3.81040 100+：$3.69290 250+：$3.54220 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.67 µH | 130.7 µH | ±20% | 1.3 A | 650 mA | - | - | 126mOhm Max | 503mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX33-2-RINDUCT ARRAY 2 COIL 31.77UH SMD |
3,585 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 31.77 µH | 127.09 µH | ±20% | 1.4 A | 700 mA | - | - | 105mOhm Max | 420mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX10-4-RINDUCT ARRAY 2 COIL 9.6UH SMD |
9,613 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.6 µH | 38.42 µH | ±20% | 3.4 A | 1.7 A | - | - | 19mOhm Max | 78mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX100-2-RINDUCT ARRAY 2 COIL 99.45UH SMD |
3,204 |
1+：$6.74000 10+：$6.08300 25+：$5.83680 50+：$5.65600 100+：$5.48020 250+：$5.25480 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.45 µH | 397.81 µH | ±20% | 630 mA | 320 mA | - | - | 457mOhm Max | 1.828Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX10-1-RINDUCT ARRAY 2 COIL 10UH SMD |
834 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 1.9 A | 950 mA | - | - | 44mOhm Max | 176mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
CTX10-4A-RINDUCT ARRAY 2 COIL 10.53UH SMD |
1,754 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 10.53 µH | 42.11 µH | ±25% | 4.67 A | 2.33 A | 4.09 A | 2.05 A | 20mOhm Max | 81mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX10-2-RINDUCT ARRAY 2 COIL 10.58UH SMD |
300 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 10.58 µH | 42.3 µH | ±20% | 2.5 A | 1.25 A | - | - | 31mOhm Max | 125mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX33-3-RINDUCT ARRAY 2 COIL 32.86UH SMD |
818 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.86 µH | 131.42 µH | ±20% | 960 mA | 480 mA | - | - | 83mOhm Max | 331mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|

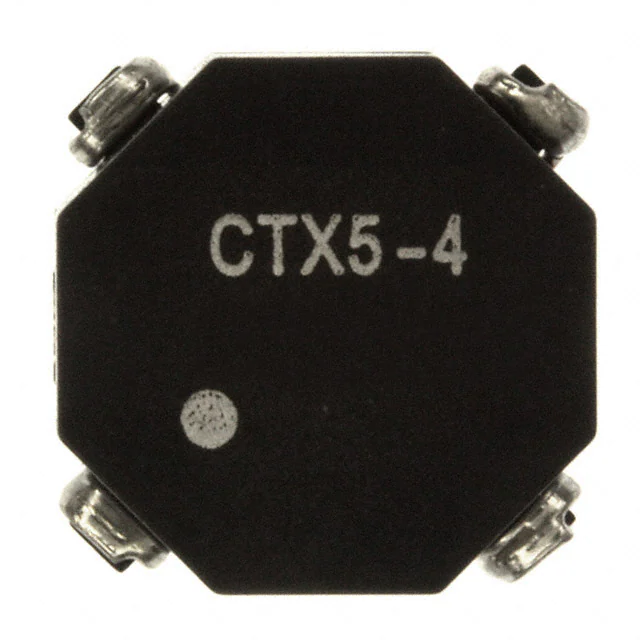

CTX5-4-RINDUCT ARRAY 2 COIL 4.9UH SMD |
2,026 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.9 µH | 19.6 µH | ±20% | 4.4 A | 2.2 A | - | - | 14mOhm Max | 56mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

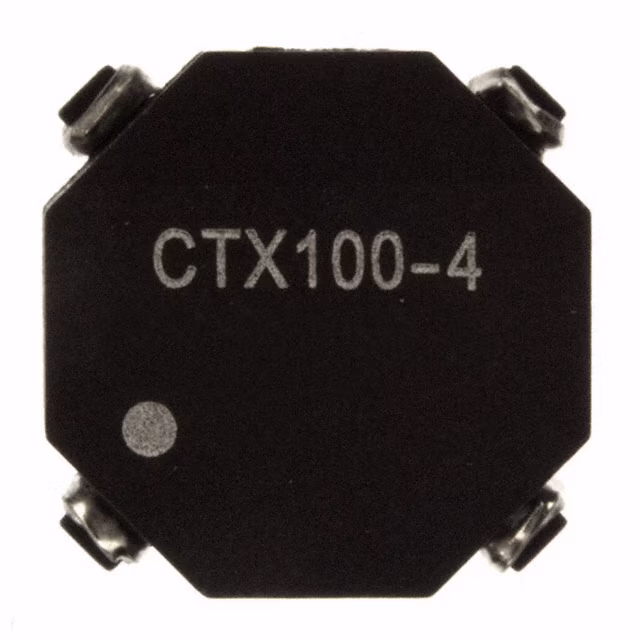

CTX100-4-RINDUCT ARRAY 2 COIL 99.23UH SMD |
1,147 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.23 µH | 396.9 µH | ±20% | 920 mA | 460 mA | - | - | 302mOhm Max | 1.21Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX150-4-RINDUCT ARRAY 2 COIL 148.23UH SMD |
850 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 148.23 µH | 592.9 µH | ±20% | 820 mA | 410 mA | - | - | 372mOhm Max | 1.488Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
DRQ73-6R8-RINDUCT ARRAY 2 COIL 6.48UH SMD |
10,424 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.48 µH | 25.92 µH | ±20% | 2.55 A | 1.28 A | 3.12 A | 1.56 A | 43.5mOhm | 174.2mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

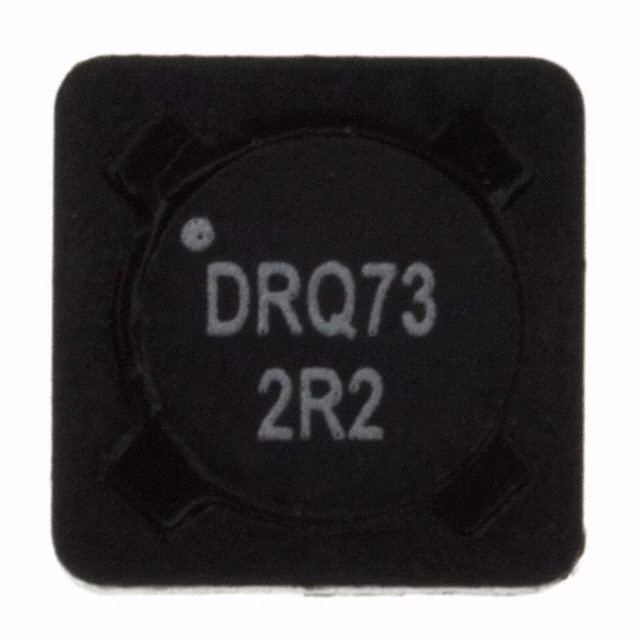

DRQ73-2R2-RINDUCT ARRAY 2 COIL 2.07UH SMD |
10,240 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.07 µH | 8.28 µH | ±20% | 4.11 A | 2.06 A | 5.52 A | 2.76 A | 16.7mOhm | 66.9mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
DRQ73-220-RINDUCT ARRAY 2 COIL 22.65UH SMD |
1,350 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 22.65 µH | 90.6 µH | ±20% | 1.62 A | 811 mA | 1.67 A | 830 mA | 107mOhm | 429mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
