Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0552.822NLINDUCT ARRAY 2 COIL 8.1UH SMD |
4,712 | - |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 8.1 µH | 32 µH | ±20% | 6.5 A | 3.3 A | 7.8 A | 3.9 A | 18mOhm Max | 66mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
P0183NLINDUCT ARRAY 2 COIL 91UH SMD |
1,953 | - |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 91 µH | 364 µH | ±10% | 1.2 A | 640 mA | - | - | 324mOhm Max | 1.272Ohm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
DJ-503INDUCT ARRAY 2 COIL 25UH T/H |
2,694 | - |
|
Datasheet | DJ | Radial | Tray | Active | 2 | 25 µH | 100 µH | ±15% | 6 A | 3 A | - | - | 13mOhm Max | 52mOhm Max | Unshielded | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.531" W (26.50mm x 13.50mm) | 1.161" (29.50mm) |
|
|
HM78D-1210100MLFTRINDUCT ARRAY 2 COIL 10UH SMD |
1,803 | - |
|
Datasheet | HM78D | Nonstandard | Tape & Reel (TR) | Discontinued at Digi-Key | 2 | 10 µH | 41.12 µH | ±20% | 3.2 A | 1.6 A | 11.75 A | 5.85 A | 20mOhm Max | 80mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
P0177NLINDUCT ARRAY 2 COIL 10.4UH SMD |
4,714 | - |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 10.4 µH | 41.7 µH | ±10% | 3.8 A | 1.89 A | - | - | 29.8mOhm Max | 120mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTCTXF33-2P32.67 UH 20% SMD TOROID CMC |
3,652 | - |
|
Datasheet | CTCTXF-2P | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | 2 | 32.67 µH | 130.7 µH | ±20% | 1.3 A | 650 mA | - | - | 126mOhm Max | 503mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.449" L x 0.449" W (11.40mm x 11.40mm) | 0.272" (6.90mm) |
|

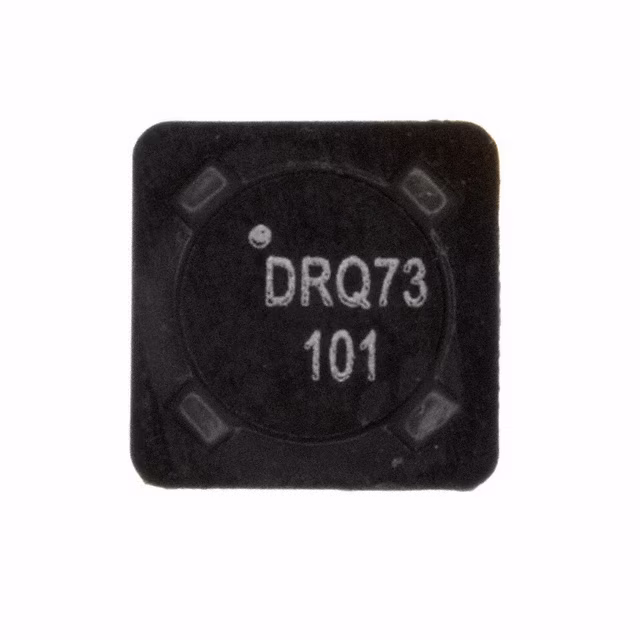

DRQ73-101-RINDUCT ARRAY 2 COIL 101.4UH SMD |
4,681 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 101.4 µH | 405.6 µH | ±20% | 730 mA | 367 mA | 790 mA | 390 mA | 527mOhm | 2.11Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF1280-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
4,265 | - |
|
Datasheet | SRF1280 | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 18.3mOhm Max | 65.6mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
7448709100INDUCT ARRAY 2 COIL 10UH SMD |
2,149 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 3.2 A | 1.6 A | 8 A | 4 A | 40mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
PF0553.223NLINDUCT ARRAY 2 COIL 23UH SMD |
3,120 | - |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 23 µH | 92 µH | ±20% | 3.9 A | 2 A | 7.6 A | 3.8 A | 39mOhm Max | 160mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
SRF1260-330MINDUCT ARRAY 2 COIL 33UH SMD |
2,280 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 3.28 A | 1.64 A | 3.84 A | 1.92 A | 61.8mOhm Max | 256mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
PM3604-10-RCINDUCT ARRAY 2 COIL 10UH SMD |
1,608 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 110mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
SRF1280A-1R5YINDUCT ARRAY 2 COIL 1.5UH SMD |
4,198 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | 6 µH | ±30% | 13.5 A | 6.77 A | 31.1 A | 15.6 A | 7.6mOhm Max | 30.6mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
IHCL4040DZER4R7M5AINDUCT ARRAY 2 COIL 4.7UH SMD |
3,167 | - |
|
Datasheet | IHCL | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
SDQ12-6R2-RINDUCT ARRAY 2 COIL 6.25UH SMD |
2,242 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.25 µH | 25 µH | ±20% | 1.02 A | 512 mA | 1.22 A | 608 mA | 238.7mOhm | 954.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
SDQ25-101-RINDUCT ARRAY 2 COIL 98.57UH SMD |
4,711 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 98.57 µH | 394.3 µH | ±20% | 499 mA | 249 mA | 405 mA | 203 mA | 1Ohm | 4.02Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX50-4A-RINDUCT ARRAY 2 COIL 50.11UH SMD |
3,826 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.11 µH | 200.4 µH | ±25% | 2.05 A | 1.03 A | 1.88 A | 940 mA | 104mOhm Max | 418mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

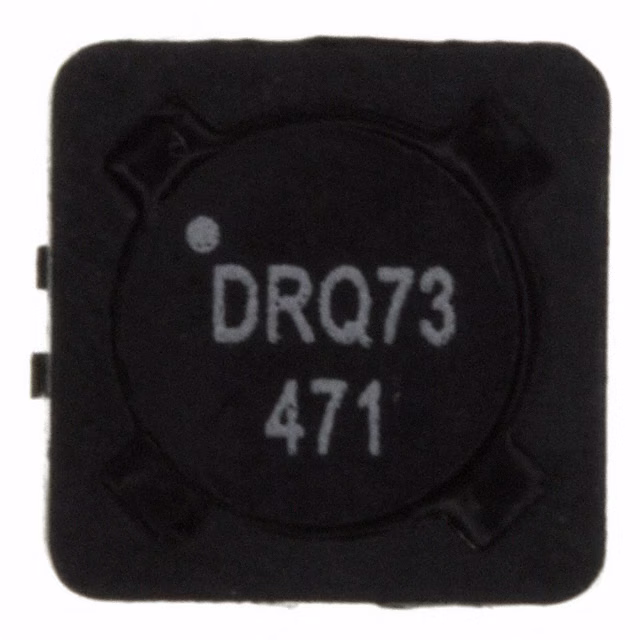

DRQ73-471-RINDUCT ARRAY 2 COIL 465.8UH SMD |
4,001 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 465.8 µH | 1.863 mH | ±20% | 350 mA | 173 mA | 370 mA | 180 mA | 2.36Ohm | 9.44Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF0703A-8R2MINDUCT ARRAY 2 COIL 8.2UH SMD |
2,965 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | 34.1 µH | ±20% | 2.19 A | 1.1 A | 2.66 A | 1.33 A | 77.2mOhm Max | 306mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-680MINDUCT ARRAY 2 COIL 68UH SMD |
3,526 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 289.3 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 507mOhm Max | 1.92Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
