Arrays, Signal Transformers
Compare the current Arrays, Signal Transformers Inductors, Coils, Chokes selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRAQ75-680-RIND DRAQ75 68UH SMT SHLD |
4,115 | - |
|
Datasheet | DRAQ75 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68.3 µH | 273.21 µH | ±25% | 1.39 A | 690 mA | - | - | 324mOhm Max | 1.3Ohm Max | Shielded | - | -40°C ~ 165°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.177" (4.50mm) |
|
|
CTX0.47-1P-RINDUCT ARRAY 2 COIL 420NH SMD |
2,474 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 420 nH | 1.67 µH | ±20% | 5.5 A | 2.75 A | - | - | 5mOhm Max | 21mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

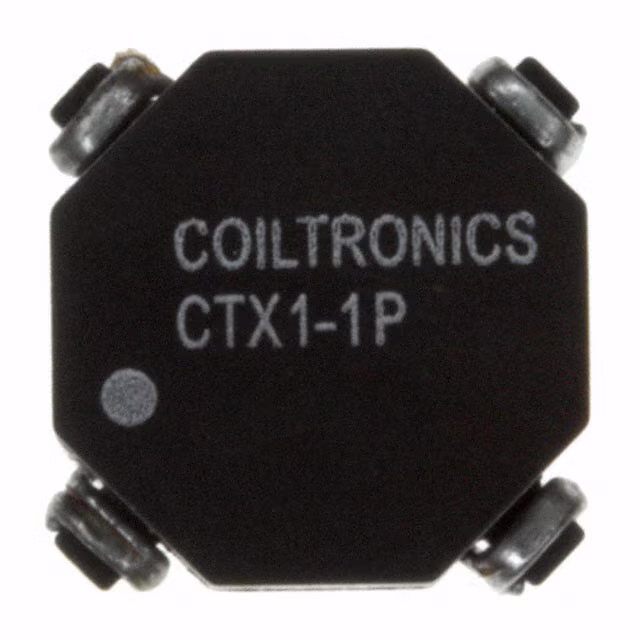

CTX1-1P-RINDUCT ARRAY 2 COIL 1.07UH SMD |
0 |
1100+：$2.93662 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.07 µH | 4.28 µH | ±20% | 4.5 A | 2.25 A | - | - | 8mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX0.68-1P-RINDUCT ARRAY 2 COIL 600NH SMD |
1,514 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 600 nH | 2.4 µH | ±20% | 5.1 A | 2.55 A | - | - | 6mOhm Max | 25mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX2-1P-RINDUCT ARRAY 2 COIL 2.02UH SMD |
1,912 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.02 µH | 8.08 µH | ±20% | 3.4 A | 1.7 A | - | - | 13mOhm Max | 54mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
SDQ25-4R7-RINDUCT ARRAY 2 COIL 5UH SMD |
2,935 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 5 µH | 20 µH | ±20% | 1.96 A | 980 mA | 1.8 A | 900 mA | 65.3mOhm | 261.2mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-R47-RINDUCT ARRAY 2 COIL 392NH SMD |
0 |
2900+：$2.87980 |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 392 nH | 1.57 µH | ±30% | 3.71 A | 1.86 A | 6.43 A | 3.21 A | 18.1mOhm | 72.5mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
|
SDQ25-R82-RINDUCT ARRAY 2 COIL 648NH SMD |
3,392 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 648 nH | 2.59 µH | ±30% | 3.37 A | 1.68 A | 5 A | 2.5 A | 22.1mOhm | 88.3mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
SDQ12-4R7-RINDUCT ARRAY 2 COIL 4.41UH SMD |
2,406 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.41 µH | 17.64 µH | ±20% | 1.12 A | 560 mA | 1.45 A | 724 mA | 199mOhm | 795.9mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
|
SDQ12-R47-RINDUCT ARRAY 2 COIL 490NH SMD |
3,954 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 490 nH | 1.96 µH | ±30% | 2.78 A | 1.39 A | 4.34 A | 2.17 A | 32.5mOhm | 129.8mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
Arrays, Signal Transformers FAQ
How can I narrow the current Arrays, Signal Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Arrays, Signal Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
