Audio Transformers
Compare the current Audio Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
119Y30XFMR 16, 8 / 70V 25V CHAS MNT |
1,184 | - |
|
Datasheet | 119 | Bulk | Active | - | 16, 8 | 70V, 25V | - | - | Sound Distribution | 50Hz ~ 10kHz | - | 25V, 70V | - | - | 30W | - | - | Chassis Mount | 2.250" L x 4.030" W (57.15mm x 102.36mm) | 2.630" (66.80mm) | Wire Leads |
|
117K32AUDIO XFMR 8 / 25V CHAS MNT |
1,471 | - |
|
Datasheet | 117 | Bulk | Active | - | 8 | 25V | - | - | Sound Distribution | 100Hz ~ 9kHz | 1dB | - | 2dB | - | 32W | - | - | Chassis Mount | 4.030" L x 2.250" W (102.36mm x 57.15mm) | 2.630" (66.80mm) | Solder Lug |
|
124DXFMR 7KCT / 15.8KCT CHAS MNT |
4,073 | - |
|
Datasheet | 124 | Bulk | Active | 1:1.49 | 7kCT | 15.8kCT | 218Ohm, 236Ohm | 297Ohm, 394Ohm | Tube Driver and Speaker Matching | 150Hz ~ 15kHz | ±1dB | 500Vrms | - | - | 5W | - | - | Chassis Mount | 2.810" L x 1.460" W (71.37mm x 37.08mm) | 1.680" (42.67mm) | Wire Leads |
|

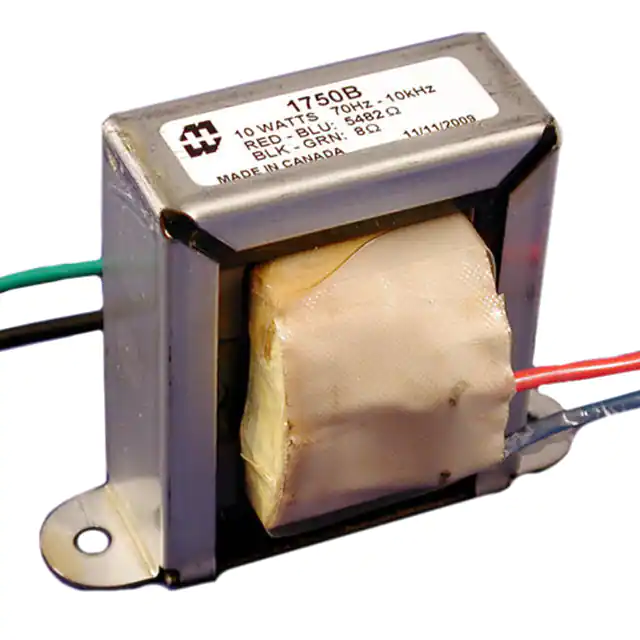

1750BAUDIO XFMR 5.482K / 8 CHAS MNT |
4,025 | - |
|
Datasheet | 1750 | Bulk | Active | - | 5.482k | 8 | 254.8Ohm | 420mOhm | - | 70Hz ~ 10kHz | ±1dB | 1750V @ 1 Second | - | - | 10W | - | - | Chassis Mount | 2.875" L x 1.900" W (73.02mm x 48.26mm) | 2.433" (61.80mm) | Wire Leads |
|
|
124EXFMR 7KCT 15K / 135K 33.8K/33.8K |
2,481 | - |
|
Datasheet | 124 | Bulk | Active | 1:2.97, 1:5.94 | 7kCT, 15k | 135k, 33.8k/33.8k | 373Ohm, 355Ohm | 1.63kOhm, 2.25kOhm | Tube Driver and Speaker Matching | 150Hz ~ 15kHz | ±1dB | 500Vrms | - | - | 5W | - | - | Chassis Mount | 2.880" L x 1.740" W (73.15mm x 44.20mm) | 2.370" (60.20mm) | Wire Leads |
|

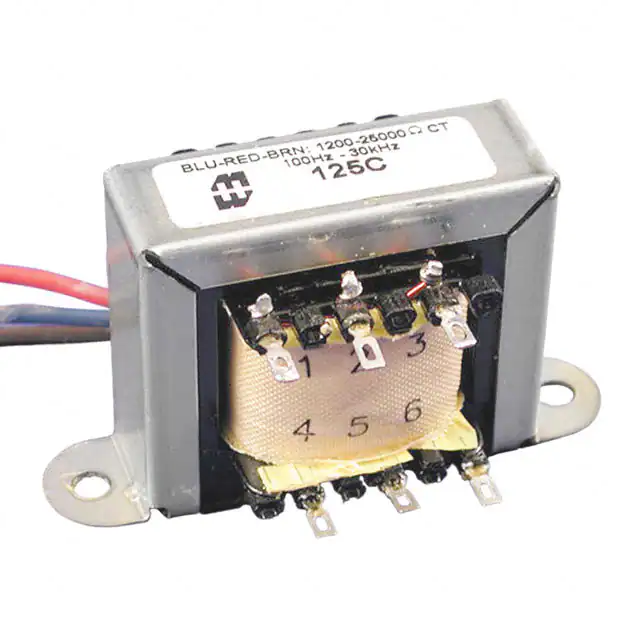

125CXFMR 1.2K-25K / 1.5-15 CHAS MNT |
2,712 | - |
|
Datasheet | 125 | Bulk | Active | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 8W | - | - | Chassis Mount | 2.810" L x 1.500" W (71.37mm x 38.10mm) | 1.690" (42.93mm) | Wire Leads |
|

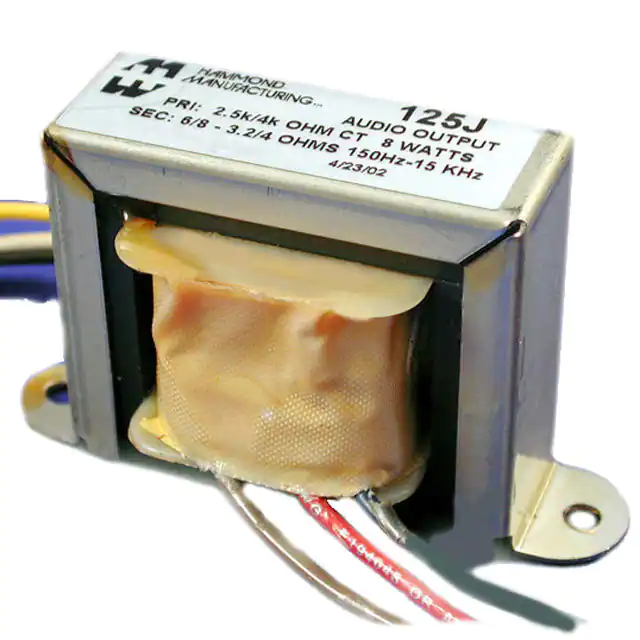

125JXFMR 2.5K 4K / 3.2, 4, 6, 8 CHAS |
4,262 | - |
|
Datasheet | 125 | Bulk | Active | - | 2.5k, 4k | 3.2, 4, 6, 8 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 8W | - | - | Chassis Mount | 3.250" L x 1.500" W (82.55mm x 38.10mm) | 1.940" (49.28mm) | Wire Leads |
|

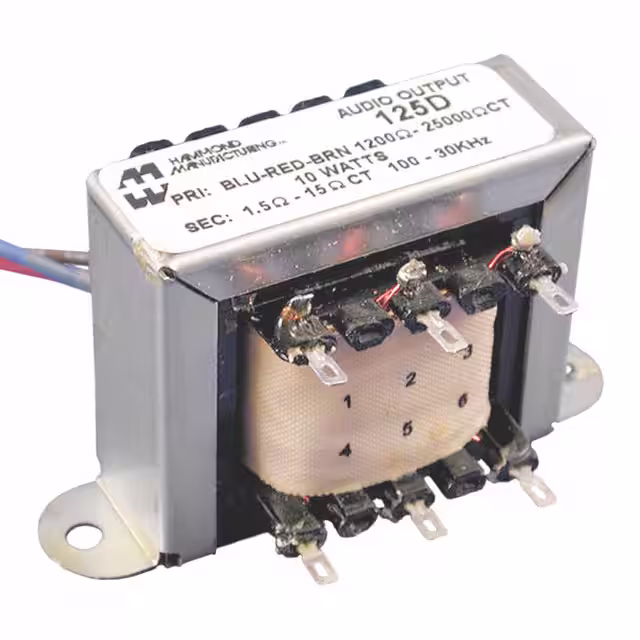

125DXFMR 1.2K-25K / 1.5-15 CHAS MNT |
4,485 | - |
|
Datasheet | 125 | Bulk | Active | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 10W | - | - | Chassis Mount | 3.250" L x 1.750" W (82.55mm x 44.45mm) | 2.000" (50.80mm) | Wire Leads |
|

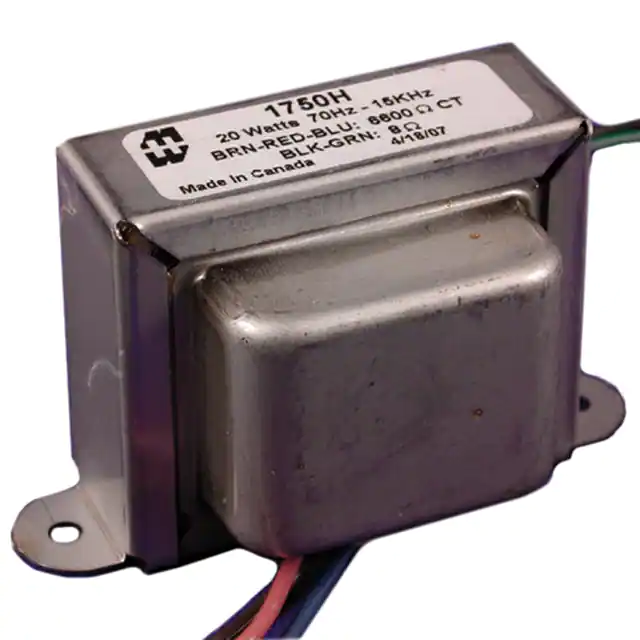

1750HAUDIO XFMR 6.6KCT / 8 CHAS MNT |
1,291 | - |
|
Datasheet | 1750 | Box | Active | 28.72:1 | 6.6kCT | 8 | 428Ohm | 470mOhm | Push-Pull Audiophile, Ultra-Linear - Tube Output | 70Hz ~ 15kHz | ±1dB | - | - | - | 20W | - | - | Chassis Mount | 3.710" L x 2.400" W (94.23mm x 60.96mm) | 2.371" (60.22mm) | Wire Leads |
|

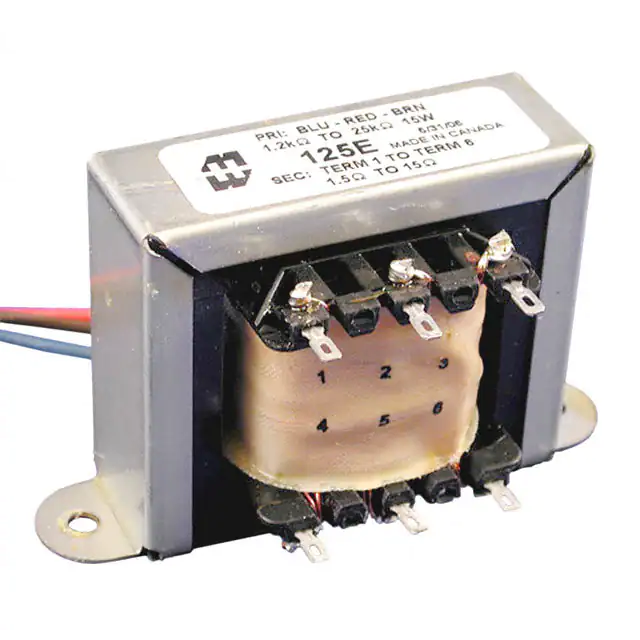

125EXFMR 1.2K-25K / 1.5-15 CHAS MNT |
4,762 | - |
|
Datasheet | 125 | Bulk | Active | - | 1.2k ~ 25k | 1.5 ~ 15 | - | - | General Purpose | 150Hz ~ 15kHz | ±1dB | - | - | - | 15W | - | - | Chassis Mount | 3.690" L x 2.000" W (93.73mm x 50.80mm) | 2.310" (58.67mm) | Wire Leads |
