Audio Transformers
Browse available Audio Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TTC-5023AUDIO XFMR 600 / 600 SMD |
0 |
1+：$4.72000 10+：$4.26800 25+：$4.09600 50+：$3.97020 100+：$3.84760 |
|
Datasheet | TTC | Tape & Reel (TR) | Active | 1:1 | 600 | 600 | 115Ohm | 115Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.25dB | 3000VRMS @ 1 Minute | 2dB Max @ 2kHz | 14dB Min @ 200Hz ~ 4kHz | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
|

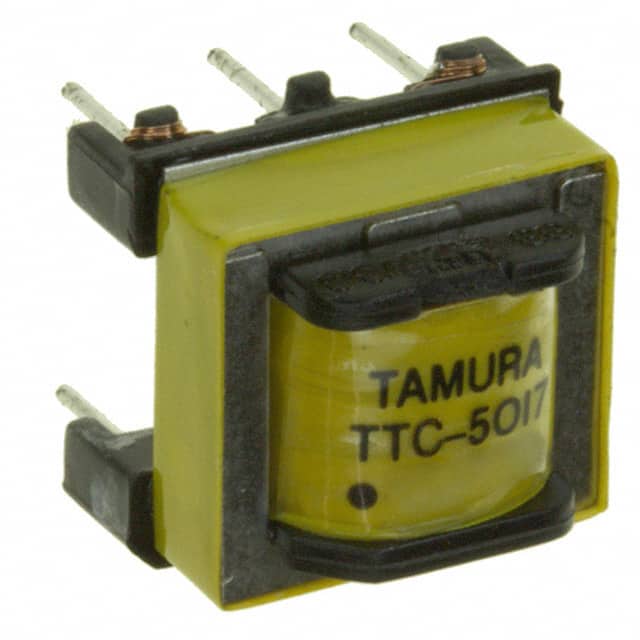

TTC-5017AUDIO XFMR 600 / 600 TH |
0 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 600 | 59Ohm | 59Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.5dB | 1875VRMS @ 1 Second | 1.5dB Max @ 1kHz | 14dB Min @ 200Hz ~ 4kHz | - | - | UL60950 | Through Hole | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.472" (12.00mm) | PC Pin |
|
TY-307PAUDIO XFMR 600 / 600 TH |
3,898 |
1+：$6.50000 10+：$5.86700 25+：$5.63040 50+：$5.45640 100+：$5.28710 250+：$5.07004 500+：$4.91092 1000+：$4.75620 |
|
Datasheet | TY | Bulk | Active | 1:1.07 | 600 | 600 | 43Ohm | 61Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.670" L x 0.781" W (17.02mm x 19.84mm) | 0.470" (11.94mm) | PC Pin |
|

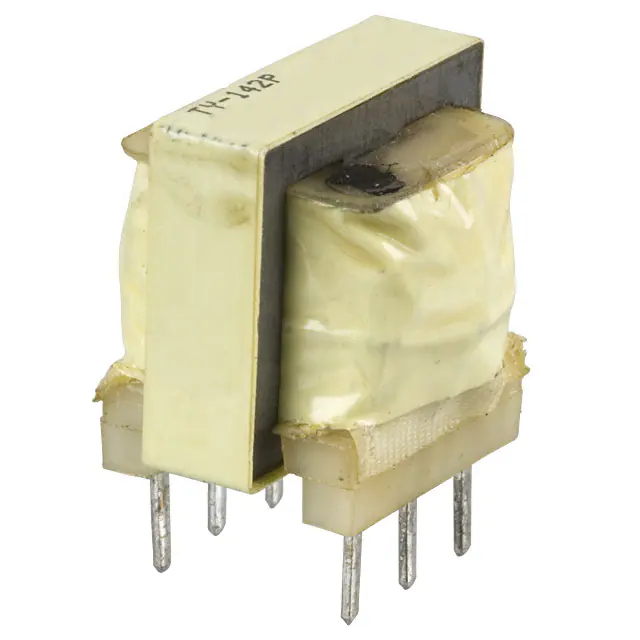

TY-142PAUDIO XFMR 10KCT / 2KCT TH |
673 |
1+：$6.14000 10+：$5.55000 25+：$5.32600 50+：$5.16160 100+：$5.00150 250+：$4.79636 500+：$4.64594 1000+：$4.49969 |
|
Datasheet | TY | Bulk | Active | 2.24:1 | 10kCT | 2kCT | 750Ohm | 217Ohm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB | 26dB | 100mW | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
TY-145PAUDIO XFMR 600CT / 600CT TH |
10,140 |
1+：$5.80000 10+：$5.23600 25+：$5.02440 50+：$4.86940 100+：$4.71840 250+：$4.52488 500+：$4.38298 1000+：$4.24499 |
|
Datasheet | TY | Bulk | Active | 1:1 | 600CT | 600CT | 44Ohm | 58Ohm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB | 26dB | 100mW | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|
TY-141PAUDIO XFMR 10KCT / 10KCT TH |
3,839 |
1+：$6.14000 10+：$5.55000 25+：$5.32600 50+：$5.16160 100+：$5.00150 250+：$4.79636 500+：$4.64594 1000+：$4.49969 |
|
Datasheet | TY | Bulk | Active | 1:1 | 10kCT | 10kCT | 820Ohm | 1.07kOhm | Data/Voice Coupling | 200Hz ~ 15kHz | ±2dB | 1500V | 1.5dB | 26dB | 100mW | -20°C ~ 85°C | - | Through Hole | 0.812" L x 0.700" W (20.62mm x 17.78mm) | 0.740" (18.80mm) | PC Pin |
|

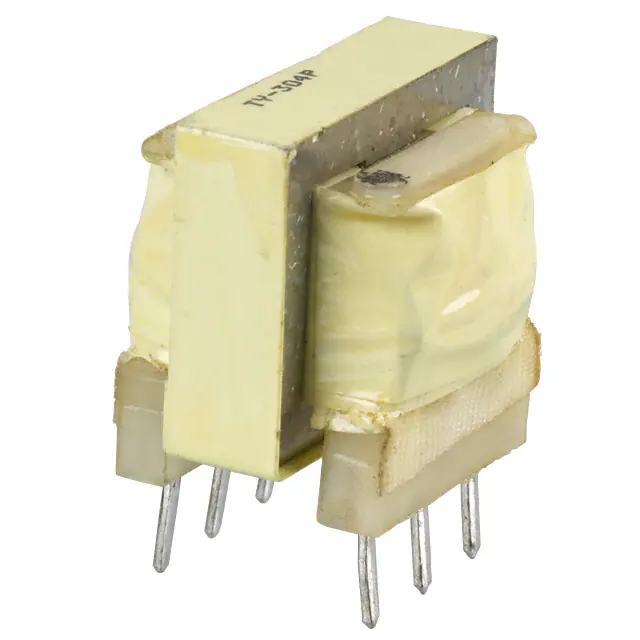

TY-304PAUDIO XFMR 600CT / 600CT TH |
2,545 |
1+：$8.19000 10+：$7.39000 25+：$7.09080 50+：$6.87100 100+：$6.65680 250+：$6.38248 500+：$6.18156 1000+：$5.98625 |
|
Datasheet | TY | Bulk | Active | 1:1.05 | 600CT | 600CT | 42Ohm | 60Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1dB Typ | 26dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.790" L x 0.812" W (20.07mm x 20.62mm) | 0.740" (18.80mm) | PC Pin |
|
MET-46-TAUDIO XFMR 600 / 600 TH |
19,642 |
1+：$11.34000 10+：$10.23100 25+：$9.81360 84+：$9.28381 168+：$8.99214 252+：$8.82520 504+：$8.54623 1008+：$8.27512 |
|
Datasheet | MET | Bulk | Active | 1:1 | 600 | 600 | 85Ohm | 110Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-09-T-BAUDIO XFMR 10KCT / 10KCT TH |
0 |
1+：$11.32000 10+：$10.21200 25+：$9.79520 84+：$9.26595 168+：$8.97458 252+：$8.80790 504+：$8.52927 1008+：$8.25850 |
|
Datasheet | MET | Bulk | Active | 1:1 | 10kCT | 10kCT | 1kOhm | 1.3kOhm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 1 Second | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-32AUDIO XFMR 600 / 600 150/150 TH |
3,483 |
1+：$14.09000 10+：$12.70300 25+：$12.18280 50+：$11.80160 100+：$11.43080 250+：$10.95628 500+：$10.60904 1000+：$10.27178 |
|
Datasheet | MET | Tube | Active | 2:1:1 | 600 | 600, 150/150 | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-60-TAUDIO XFMR 135 / 135CT TH |
692 |
1+：$11.56000 10+：$10.42100 25+：$9.99560 84+：$9.45548 168+：$9.15810 252+：$8.98794 504+：$8.70355 1008+：$8.42724 |
|
Datasheet | MET | Bulk | Active | 1:1 | 135 | 135CT | 10.5Ohm | 10.8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-32-TAUDIO XFMR 600 / 150/150 TH |
296 |
1+：$11.77000 10+：$10.61300 25+：$10.17920 84+：$9.62893 168+：$9.32595 252+：$9.15266 504+：$8.86294 1008+：$8.58155 |
|
Datasheet | MET | Bulk | Active | 2:1:1 | 600 | 150/150 | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-31-TAUDIO XFMR 600CT / 600CT TH |
3,799 |
1+：$12.39000 10+：$11.17100 25+：$10.71480 84+：$10.13548 168+：$9.81667 252+：$9.63421 504+：$9.32935 1008+：$9.03313 |
|
Datasheet | MET | Bulk | Active | 1:1 | 600CT | 600CT | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-22-TAUDIO XFMR 2.5KCT / 2.5KCT TH |
399 |
1+：$10.72000 10+：$9.66900 25+：$9.27480 84+：$8.77429 168+：$8.49857 252+：$8.34079 504+：$8.07710 1008+：$7.82089 |
|
Datasheet | MET | Bulk | Active | 1:1 | 2.5kCT | 2.5kCT | 280Ohm | 350Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-46AUDIO XFMR 600 / 600 TH |
8,320 |
1+：$13.84000 10+：$12.47700 25+：$11.96640 50+：$11.59200 100+：$11.22780 250+：$10.76184 500+：$10.42084 1000+：$10.08959 |
|
Datasheet | MET | Tube | Active | 1:1 | 600 | 600 | 85Ohm | 110Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±1dB | 1500VRMS @ 1 Minute | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-35AUDIO XFMR 600CT / 8 TH |
8,609 |
1+：$14.07000 10+：$12.68800 25+：$12.16920 50+：$11.78840 100+：$11.41800 250+：$10.94400 500+：$10.59712 1000+：$10.26021 |
|
Datasheet | MET | Tube | Active | 8.66:1 | 600CT | 8 | 60Ohm | 1.5Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-09AUDIO XFMR 10KCT / 10KCT TH |
3,168 |
1+：$14.08000 10+：$12.69300 25+：$12.17320 50+：$11.79240 100+：$11.42180 250+：$10.94764 500+：$10.60070 1000+：$10.26366 |
|
Datasheet | MET | Tube | Active | 1:1 | 10kCT | 10kCT | 1kOhm | 1.3kOhm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-39AUDIO XFMR 500 / 50 TH |
2,129 |
1+：$12.16000 10+：$10.96000 25+：$10.51160 50+：$10.18340 100+：$9.86370 250+：$9.45472 500+：$9.15542 1000+：$8.86460 |
|
Datasheet | MET | Tube | Active | 3.16:1 | 500 | 50 | 55Ohm | 8Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 500VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-31AUDIO XFMR 600CT / 600CT TH |
4,282 |
1+：$13.25000 10+：$11.94800 25+：$11.45880 50+：$11.10020 100+：$10.75150 250+：$10.30520 500+：$9.97858 1000+：$9.66135 |
|
Datasheet | MET | Tube | Active | 1:1 | 600CT | 600CT | 70Ohm | 95Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 30 Seconds | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
MET-23AUDIO XFMR 1.6KCT / 3.2 TH |
57 |
1+：$13.84000 10+：$12.47700 25+：$11.96640 50+：$11.59200 100+：$11.22780 250+：$10.76184 500+：$10.42084 1000+：$10.08959 |
|
Datasheet | MET | Tube | Active | 22.4:1 | 1.6kCT | 3.2 | 230Ohm | 1Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±3dB | 500VRMS @ 30 Seconds | - | - | 65mW Max @ 300Hz | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
