Audio Transformers
Compare the current Audio Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TTC-5000AUDIO XFMR 600 / 301 TH |
2,132 | - |
|
Datasheet | TTC | Bulk | Obsolete | 1:1 | 600 | 301 | 150Ohm | 150Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±0.25dB | 1875VRMS @ 1 Second | 3.25dB Max @ 1kHz | 20dB Min @ 1kHz | - | - | UL1950, UL60950, EN60950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5006AUDIO XFMR 600 / 374 TH |
2,177 | - |
|
Datasheet | TTC | Bulk | Obsolete | - | 600 | 374 | - | - | - | - | - | - | 2.5dB | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|
|
TTC-5007AUDIO XFMR 600 / 530 TH |
3,486 | - |
|
Datasheet | TTC | Bulk | Obsolete | - | 600 | 530 | - | - | - | - | - | - | 1dB Typ | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5009AUDIO XFMR 600 / 530 TH |
1,903 | - |
|
Datasheet | TTC | Bulk | Obsolete | 1:1 | 600 | 530 | 46Ohm | 45Ohm | - | 200Hz ~ 4kHz | ±0.25dB | 1875VRMS @ 1 Second | 1dB Max @ 1kHz | 20dB Min @ 1kHz | - | - | UL1950, UL60950, EN60950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5012AUDIO XFMR 600 / 600 TH |
2,056 | - |
|
Datasheet | TTC | Bulk | Obsolete | - | 600 | 600 | - | - | - | - | - | - | 1dB Typ | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|
|
TTC-5018AUDIO XFMR 600 / 600 TH |
3,571 | - |
|
Datasheet | TTC | Bulk | Obsolete | 1:1 | 600 | 600 | 25Ohm | 21Ohm | - | 200Hz ~ 4kHz | ±0.5dB | 1875VRMS @ 1 Second | 0.75dB Max @ 1kHz | 20dB Min @ 1kHz | - | - | UL1950, UL60950, EN60950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5019AUDIO XFMR 600 / 260 TH |
2,689 | - |
|
Datasheet | TTC | Bulk | Obsolete | 1:1 | 600 | 260 | 170Ohm | 170Ohm | Data/Voice Coupling | 200Hz ~ 4kHz | ±2.5dB | 1875VRMS @ 1 Second | 4dB Max @ 1kHz | 8dB Min @ 200Hz ~ 4kHz | - | - | CSA-C22.2 No. 950-95, UL1950 | Through Hole | 0.886" L x 0.909" W (22.50mm x 23.10mm) | 0.543" (13.80mm) | PC Pin |
|

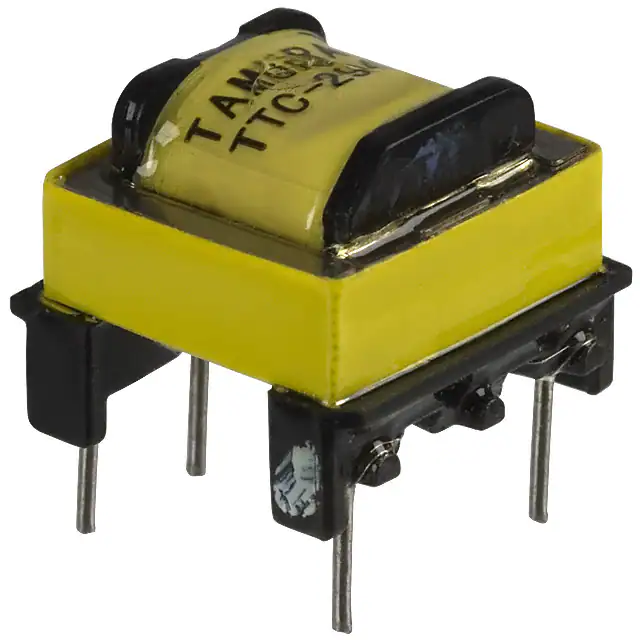

TTC-294AUDIO XFMR 600 / 600CT TH |
1,731 | - |
|
Datasheet | TTC | Bulk | Active | 1:1 | 600 | 600CT | 58Ohm | 14Ohm, 62Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.16dB | 1850V @ 1 Second | 1.2dB Max @ 1kHz | - | - | - | UL1950 | Through Hole | 0.591" L x 0.571" W (15.00mm x 14.50mm) | 0.472" (12.00mm) | PC Pin |
|
|
TTC-5010AUDIO XFMR 600 / 301 TH |
3,591 | - |
|
Datasheet | TTC | Bulk | Obsolete | - | 600 | 301 | - | - | Data/Voice Coupling | - | - | - | 3.75dB | - | - | - | - | Through Hole | 0.929" L x 0.976" W (23.60mm x 24.80mm) | 0.543" (13.80mm) | PC Pin |
|
TTC-5033AUDIO XFMR 10K / 10K SMD |
3,761 | - |
|
Datasheet | TTC | Tape & Reel (TR) | Obsolete | 1:1 | 10k | 10k | 485Ohm | 485Ohm | Data/Voice Coupling | - | - | 1875VRMS @ 1 Second | - | - | - | -20°C ~ 85°C | UL60950, EN60950 | Surface Mount | 0.378" L x 0.492" W (9.60mm x 12.50mm) | 0.299" (7.60mm) | Flat Lead |
Audio Transformers FAQ
How can I narrow the current Audio Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Audio Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
