Audio Transformers
Compare the current Audio Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Turns Ratio - Primary:Secondary | Impedance - Primary (Ohms) | Impedance - Secondary (Ohms) | DC Resistance (DCR) - Primary | DC Resistance (DCR) - Secondary | Transformer Type | Frequency Range | Frequency Response | Voltage - Isolation | Insertion Loss | Return Loss | Power Level | Operating Temperature | Approval Agency | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SP-13XFMR 25KCT 20KCT / 1KCT 800CT TH |
1,177 | - |
|
Datasheet | Red-Spec | Bulk | Active | 5:1 | 25kCT, 20kCT | 1kCT, 800CT | 1.7kOhm | 115Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 40mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
A-11JXFMR 600, 250/50 / 60K CHAS MNT |
1,603 | - |
|
Datasheet | J | Bulk | Active | 1:10 | 600, 250/50 | 60k | 50Ohm | 5kOhm | Impedance Matching | 30Hz ~ 15kHz | ±3dB | - | - | - | 10mW | - | - | Chassis Mount | - | - | Wire Leads |
|

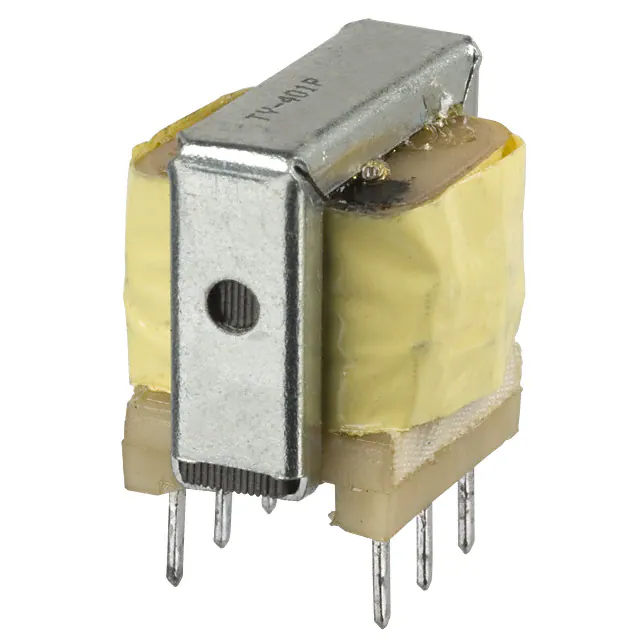

TY-401PAUDIO XFMR 600CT / 600CT TH |
2,660 | - |
|
Datasheet | TY | Bulk | Active | 1:1.07 | 600CT | 600CT | 76.53Ohm | 108Ohm | Data/Voice Coupling | 300Hz ~ 3.5kHz | ±0.5dB | 1500VAC | 1.75dB Typ | 15dB Typ | -45dB ~ 7dB | -20°C ~ 85°C | - | Through Hole | 0.820" L x 0.715" W (20.83mm x 18.16mm) | 0.750" (19.05mm) | PC Pin |
|
MET-42-TAUDIO XFMR 150 / 12 TH |
3,541 | - |
|
Datasheet | MET | Bulk | Active | 3.54:1 | 150 | 12 | 20Ohm | 2.5Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-51AUDIO XFMR 900CT / 600 TH |
1,437 | - |
|
Datasheet | Red-Spec | Bulk | Active | 1.22:1 | 900CT | 600 | 104Ohm | 96Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
SP-22AUDIO XFMR 10K / 2K 500/500 TH |
2,960 | - |
|
Datasheet | Red-Spec | Bulk | Active | 4.48:1:1 | 10k | 2k, 500/500 | 1.05kOhm | 146/168Ohm | Audio Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 50mW | -40°C ~ 85°C | - | Through Hole | 0.410" L x 0.310" W (10.41mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
MET-11-TAUDIO XFMR 10KCT / 2KCT TH |
3,900 | - |
|
Datasheet | MET | Bulk | Active | 2.23:1 | 10kCT | 2kCT | 1kOhm | 300Ohm | Data/Voice Coupling | 300Hz ~ 100kHz | ±2dB | 1000VRMS @ 1 Second | - | - | 40mW | -20°C ~ 85°C | - | Through Hole | 0.409" L x 0.310" W (10.40mm x 7.87mm) | 0.465" (11.80mm) | PC Pin |
|
|
A-9JXFMR 50 250 600 / 85000 CHAS |
2,038 | - |
|
Datasheet | J | Bulk | Active | 1:12 | 50, 250, 600 | 85000 | 32.7Ohm | 3450Ohm | Impedance Matching | 30Hz ~ 15kHz | ±3dB | - | - | - | 1mW | - | - | Chassis Mount | - | - | Wire Leads |
|
|
A-10JXFMR 600 150/150 / 60K CHAS MNT |
4,383 | - |
|
Datasheet | J | Bulk | Active | 1:10.5 | 600, 150/150 | 60k | 33.7Ohm | 4.04kOhm | Impedance Matching | 30Hz ~ 15kHz | ±3dB | - | - | - | 1mW | - | - | Chassis Mount | - | - | Wire Leads |
|
|
A-12JXFMR 600 150/150 / 60K CHAS MNT |
2,802 | - |
|
Datasheet | J | Bulk | Active | 1:10 | 600, 150/150 | 60k | 50Ohm | 4.92kOhm | Impedance Matching | 30Hz ~ 15kHz | ±3dB | - | - | - | 10mW | - | - | Chassis Mount | - | - | Wire Leads |
Audio Transformers FAQ
How can I narrow the current Audio Transformers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Audio Transformers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
