Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

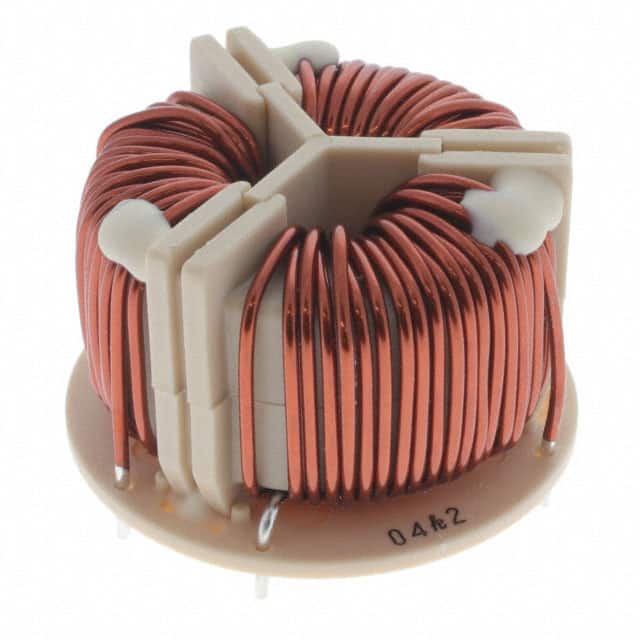

SCR31-010-S1R1A035JHCMC 3.5MH 1A 3LN TH |
1,017 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 3.5 mH @ 100 kHz | 1A | 24mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

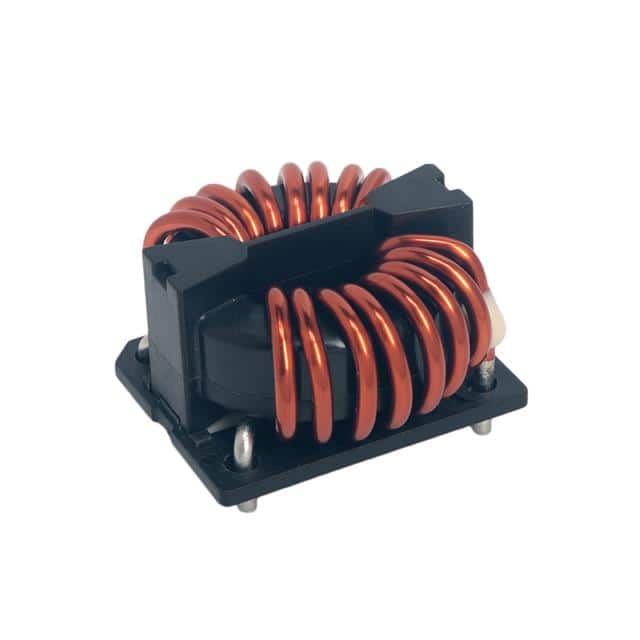

SCF29XV-110-1R5A019JHCMC 4MH 11A 2LN TH AEC-Q200 |
3,095 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4 mH @ 100 kHz | 11A | 8.07mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SC-04-E120JKHCMC 12MH 4A 2LN TH |
3,217 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 4A | - | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

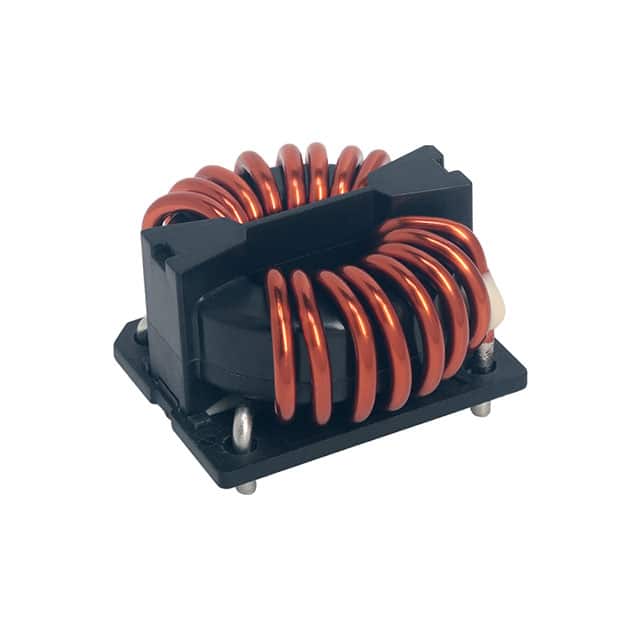

SCR29XV-070-1R2A030JHCMC 5.5MH 7A 2LN TH AEC-Q200 |
3,334 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 100 kHz | 7A | 19.2mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 120°C | AEC-Q200 | - | - | - | - |
|

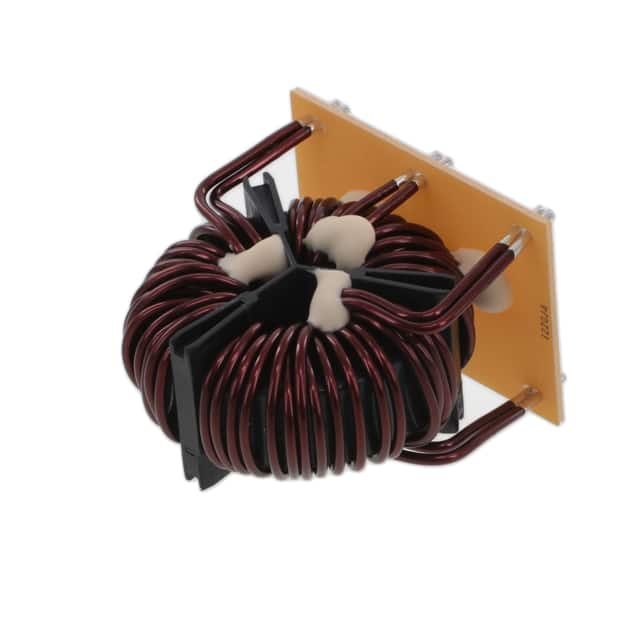

SCF47B-300-S2R0B012JCMC 1.2MH 30A 3LN TH |
3,310 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1.2 mH @ 100 kHz | 30A | 2.4mOhm | 250V | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SCF25-06-2000CMC 20MH 6A 2LN TH |
4,363 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 20 mH @ 100 kHz | 6A | 26mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

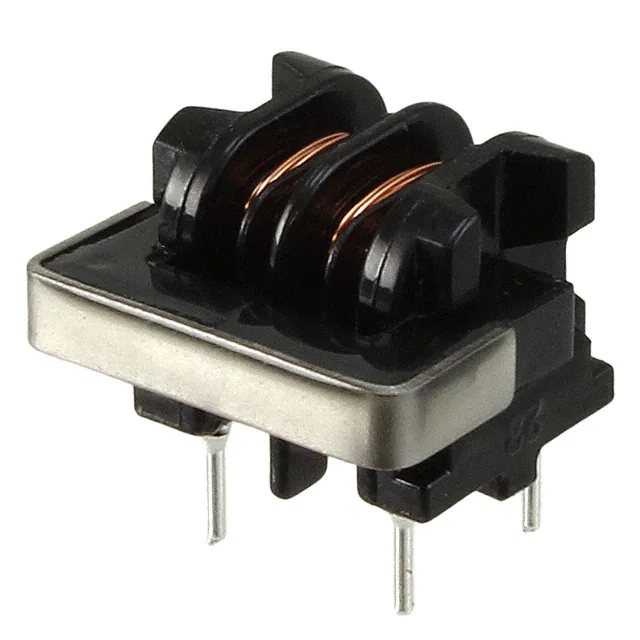

SU9HF-05030CMC 3MH 500MA 2LN TH |
2,442 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU9H-R05034CMC 3.4MH 500MA 2LN TH |
4,333 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3.4 mH @ 1 kHz | 500mA | 1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS21V-050360CMC 36MH 500MA 2LN TH |
3,623 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 36 mH @ 1 kHz | 500mA | 2.4Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SSHB10HS-30006CMC 600UH 3A 2LN TH |
3,627 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 600 µH @ 10 kHz | 3A | 60mOhm | - | 250V | -25°C ~ 130°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
