Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SU10VFC-R15019CMC 1.9MH 1.5A 2LN TH |
1,519 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.9 mH @ 1 kHz | 1.5A | 240mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SN12-6501NMC 170.0UH 5.0A 0.0600 OHM TH |
2,454 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 170 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|
PHBC13-1R2A0045VCMC 45UH 6A 2LN TH |
4,414 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 45 µH @ 100 kHz | 6A | 18.3mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCT39XV-420-2R4B004JHCOMMON MODE 0.119MH 42A 0.530M |
2,174 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 119 µH @ 100 kHz | 42A | 0.53mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
HHBC24N-2R1B0039VCMC 39UH 30A 2LN TH |
2,800 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 39 µH @ 100 kHz | 30A | 6.8mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SCF39XV-270-Z2R4A009JHCMC 2MH 27A HRZ |
2,063 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 27A | 2.44mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|

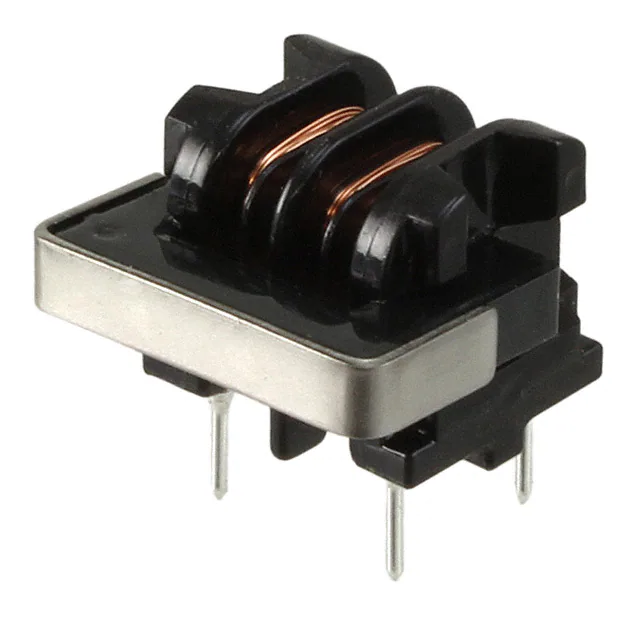

SU9HF-06030CMC 2LN TH |
3,333 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 600mA | 820mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
|
SN3-300NMC 20.0UH 0.5A 0.1500 OHM TH |
4,737 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | - | - | - | - | -25°C ~ 105°C | - | - | - | - | - |
|

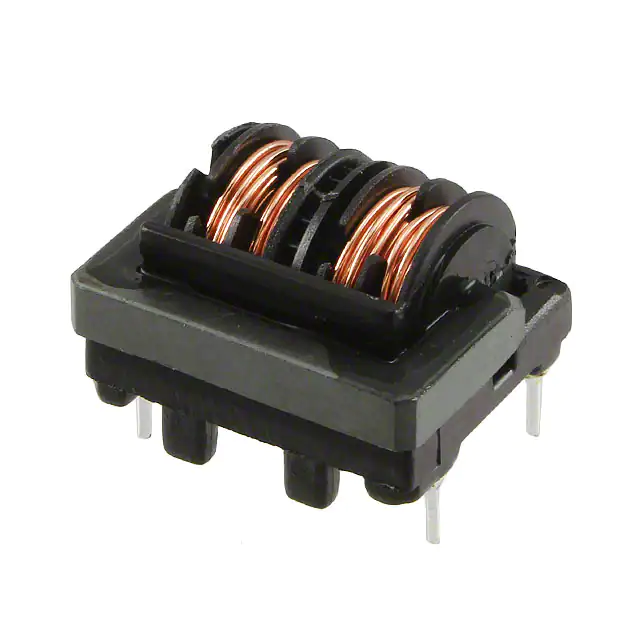

SS17HB-R13020CMC 2MH 1.3A 2LN TH |
2,983 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 1.3A | 180mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SS11V-06180-CHIND COMMON MODE CHOKE |
1,807 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 1 kHz | 600mA | 1.3Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
