Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC-10-D020HCMC 20UH 10A 2LN TH |
352 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 20 µH @ 100 kHz | 10A | 6.5mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-07-100CMC 650UH 7A 2LN TH |
235 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 650 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|

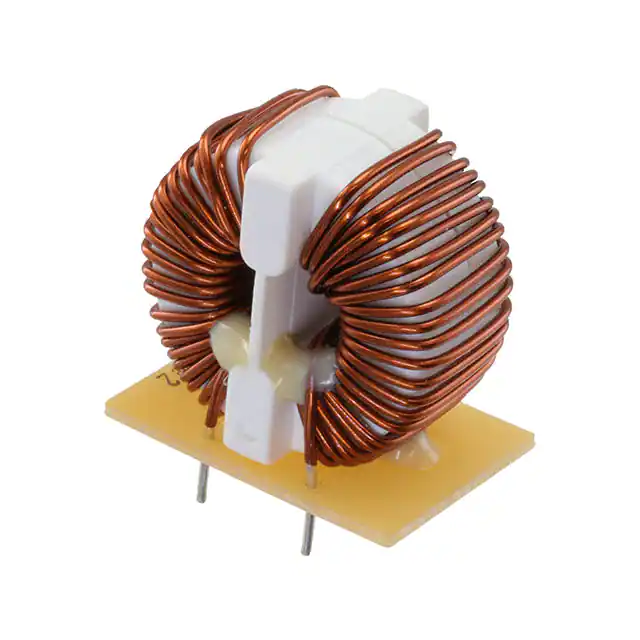

SC22-05-30JCMC 3MH 5A 2LN TH |
198 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 10 kHz | 5A | 50mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-20-03JCMC 300UH 20A 2LN TH |
176 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 300 µH @ 1 kHz | 20A | 4mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-100JCMC 10MH 2A 2LN TH |
178 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 100 kHz | 2A | 220mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-02-20GJCMC 2MH 2A 2LN TH |
895 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 2A | 80mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-1100CMC 11MH 5A 2LN TH |
105 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 11 mH @ 10 kHz | 5A | 55mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-05-200CMC 2MH 5A 2LN TH |
187 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 2 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-20-05J-PCMC 487.5UH 20A 2LN TH |
156 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 487.5 µH @ 100 kHz | 20A | 3.6mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
ST-104A4CMC 500MA 4LN 3K OHM TH |
236 | - |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 3 kOhms @ 500 kHz | - | 500mA | 360mOhm | 50V | - | -20°C ~ 75°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
