Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PLT-01CMC 7.5UH 300MA 2LN TH |
929 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 7.5 µH @ 100 kHz | 300mA | 55mOhm | - | 264V | -25°C ~ 100°C | - | UL | - | - | - |
|
M-538CTCMC 100MA 3LN 800 OHM SMD |
2,272 | - |
|
Datasheet | Vertical, 6 Gull Wing | Signal Line | 3 | 800 Ohms @ 100 MHz | - | 100mA | 220mOhm | 50V | - | -25°C ~ 70°C | - | - | - | - | - |
|

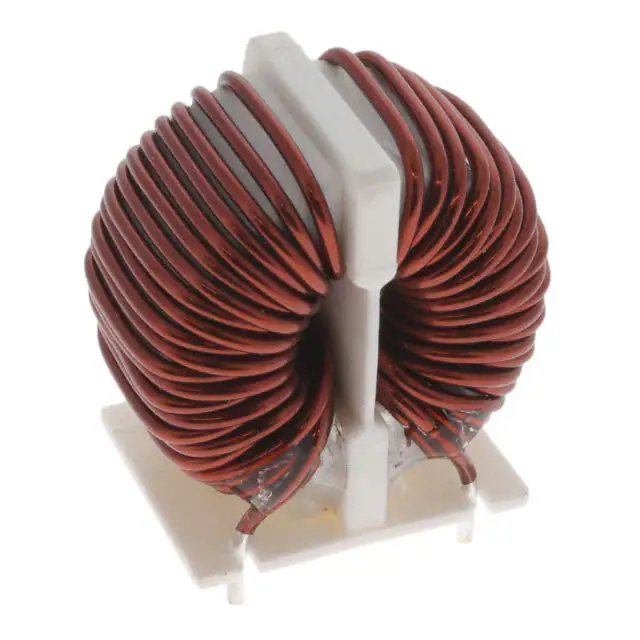

SC-08-44JCMC 4.4MH 8A 2LN TH |
174 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.4 mH @ 100 kHz | 8A | 25mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-08-100CMC 3MH 8A 2LN TH |
165 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 8A | 25mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SCR-150-1R4A006J-PCMC 600UH 15A 2LN TH |
238 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 600 µH @ 10 kHz | 15A | 5.3mOhm | 250V | 250V | 25°C ~ 120°C | - | - | - | - | - |
|

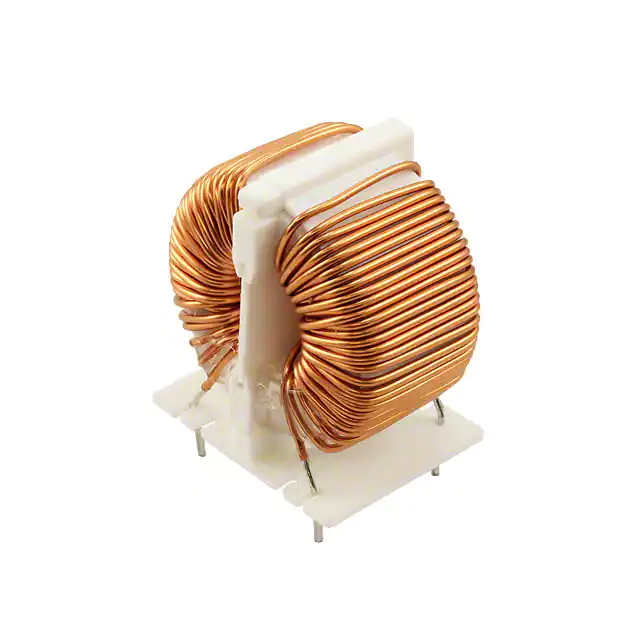

SC-05-30JCMC 3MH 5A 2LN TH |
200 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 3 mH @ 100 kHz | 5A | 70mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-14-12JCMC 1.2MH 14A 2LN TH |
145 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1.2 mH @ 10 kHz | 14A | 12.2mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-06-60JCMC 6MH 6A 2LN TH |
221 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 6 mH @ 10 kHz | 6A | 60mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-10-D050CMC 50UH 10A 2LN TH |
580 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 50 µH @ 100 kHz | 10A | 16mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
|
SC-18-100CMC 700UH 18A 2LN TH |
123 | - |
|
Datasheet | Horizontal, No Base, 4 PC Pin | Power Line | 2 | - | 700 µH @ 100 kHz | 18A | 20mOhm | 250V | 250V | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
