Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHBC13-1R2A0127VCMC 127UH 6A 2LN TH |
2,737 | - |
|
Datasheet | Vertical, No Base, 2 PC Pin | - | 2 | - | 127 µH @ 100 kHz | 6A | 31.7mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
SS11V-R08125-CHCMC 12.5MH 800MA 2LN TH |
100 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12.5 mH @ 1 kHz | 800mA | 740mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|

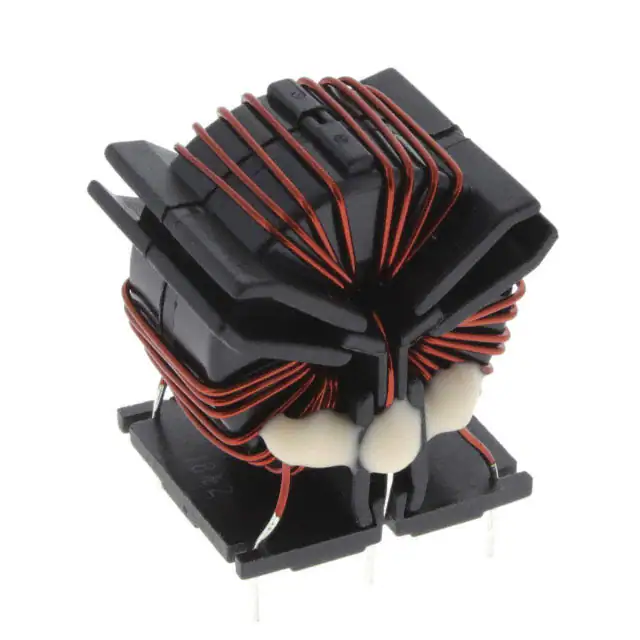

SC-01-S07JCMC 700UH 1A 3LN TH |
4,630 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 700 µH @ 10 kHz | 1A | 38 mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-30145CMC 14.5MH 3A 2LN TH |
2,887 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 14.5 mH @ 10 kHz | 3A | 102mOhm (Typ) | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-11-20JCMC 2MH 11A 2LN TH |
4,717 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 10 kHz | 11A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|

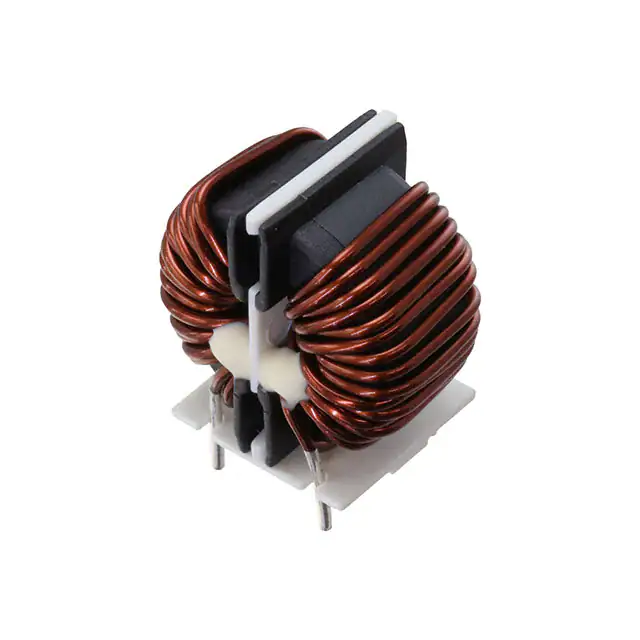

SCR25B-150-1R4A024JCMC 2.4MH 15A 2LN TH |
3,072 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.4 mH @ 10 kHz | 15A | 11.5mOhm | 500V | 500V | 25°C ~ 120°C | - | - | - | - | - |
|
SC-18-25JCMC 2.5MH 18A 2LN TH |
2,202 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.5 mH @ 10 kHz | 18A | 10mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SCF19XV-100-1R1A009JVCMC 1MH 10A 2LN TH AEC-Q200 |
1,191 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 100 kHz | 10A | 6.03mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
SCF25XV-350-2R4A003JVCMC 220UH 35A 2LN TH AEC-Q200 |
4,859 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 220 µH @ 100 kHz | 35A | 0.65mOhm | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-200-Z2R1A012JHCMC 3.6MH 20A HRZ |
3,584 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 2 | - | 3.6 mH @ 100 kHz | 20A | 4.14mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
