Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SCF39XV-420-2R4B004JHCMC 0.4MH 42A HRZ |
4,297 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 400 µH @ 100 kHz | 42A | 0.53mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-200-2R2A013JHCMC 4.2MH 20A HRZ |
3,263 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 4.2 mH @ 100 kHz | 20A | 4.28mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF39XV-100-1R5A028JHCMC 19.5MH 10A HRZ |
2,806 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 19.5 mH @ 100 kHz | 10A | 17.91mOhm (Typ) | 1000V (1kV) | 1000V (1kV) | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
SCF56X-800-S2R4C004JHIND CMC 0.34MH 80A 0.55MOHM |
1,309 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 340 µH @ 100 kHz | 80A | 0.55mOhm | 600V | 600V | -40°C ~ 130°C | - | - | - | - | - |
|

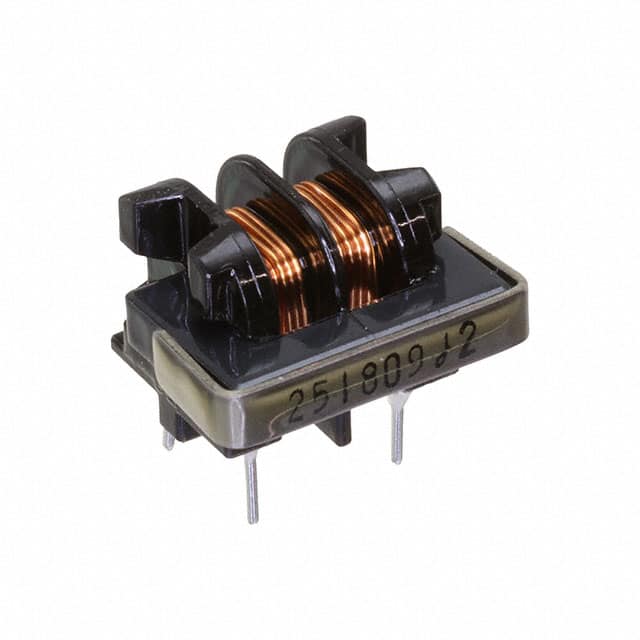

SU9HD-25018CMC 17.99UH 2.5A 2LN TH |
3,663 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 17.99 µH @ 1 kHz | 2.5A | 55mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SU10VFC-R07088CMC 8.8MH 700MA 2LN TH |
4,080 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8.8 mH @ 1 kHz | 700mA | 1.1Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-03-E016GCMC 163.8UH 3A 2LN TH |
3,804 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 163.8 µH @ 10 kHz | 3A | 8.51mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SSRH24NH-20310CMC 31MH 2A 2LN TH |
4,609 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 31 mH @ 10 kHz | 2A | 214mOhm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
SC-08-E075JCMC 750UH 8A 2LN TH |
3,705 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 750 µH @ 10 kHz | 8A | 12.7mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
|
SC-07-04GJCMC 360UH 7A 2LN TH |
4,640 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 360 µH @ 100 kHz | 7A | 14mOhm | 250V | 250V | -40°C ~ 120°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
