Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB8532-16-1M3CMC 1.3MH 16A 3LN TH |
1,117 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 1.3 mH @ 1 kHz | 16A | 5.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

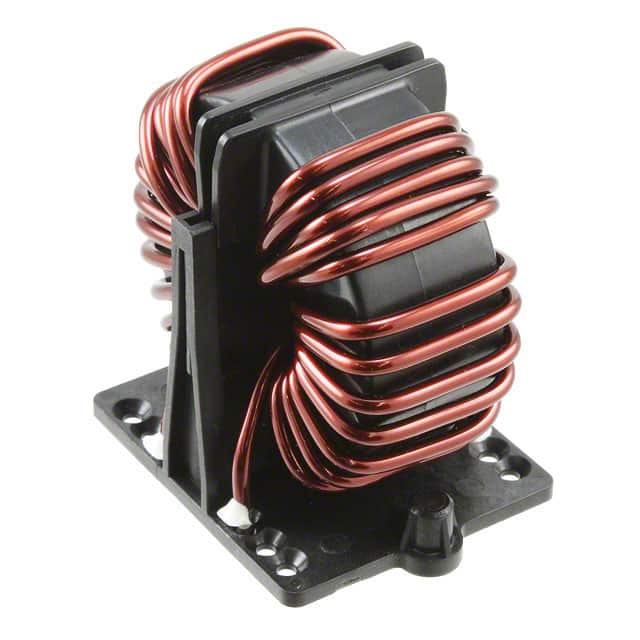

RB8522-25-2M0CMC 2MH 25A 2LN TH |
2,548 | - |
|
Datasheet | Vertical, 8 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 25A | 4.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD7127-36-1M0CMC 1MH 36A 2LN TH |
1,176 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 36A (Typ) | 3.3mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|

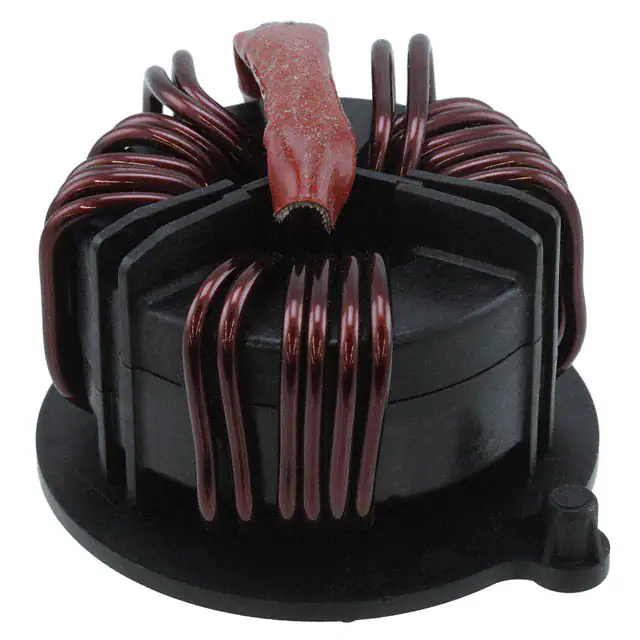

RB6132-50-0M2CMC 180UH 50A 3LN TH |
3,374 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 3 | - | 180 µH @ 1 kHz | 50A | 0.9mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RB6532-50-0M2CMC 180UH 50A 3LN TH |
1,074 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 180 µH @ 400 Hz | 50A | 0.8mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

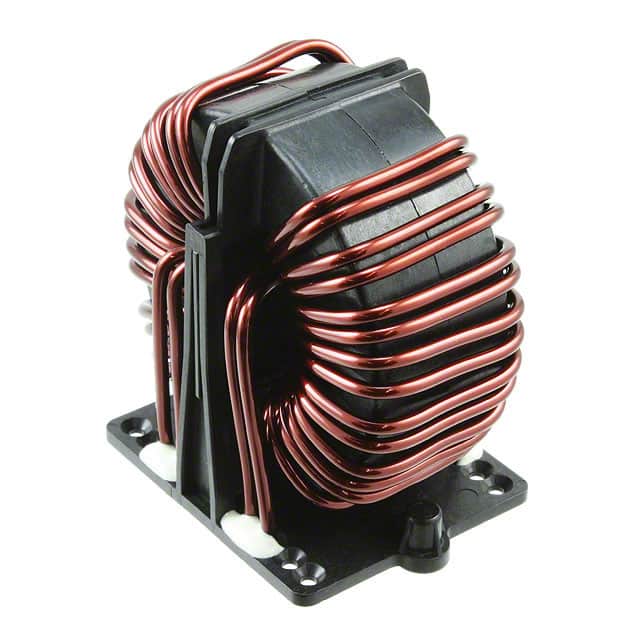

RB8522-36-1M5CMC 1.5MH 36A 2LN TH |
4,909 | - |
|
Datasheet | Vertical, 8 PC Pin | Power Line | 2 | - | 1.5 mH @ 400 Hz | 36A | 3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RB8532-50-0M3CMC 330UH 50A 3LN TH |
4,087 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 330 µH @ 1 kHz | 50A | 1.2mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD8137-64-0M5CMC 500UH 64A 3LN TH |
1,034 | - |
|
Datasheet | - | Power Line | 3 | - | 500 µH @ 1 kHz | 64A (Typ) | 1.35mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RN212-0.5-02-15MCMC 15MH 500MA 2LN TH |
2,846 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 700mOhm (Typ) | - | 300V | -40°C ~ 100°C | - | ENEC, UR, VDE | - | - | - |
|

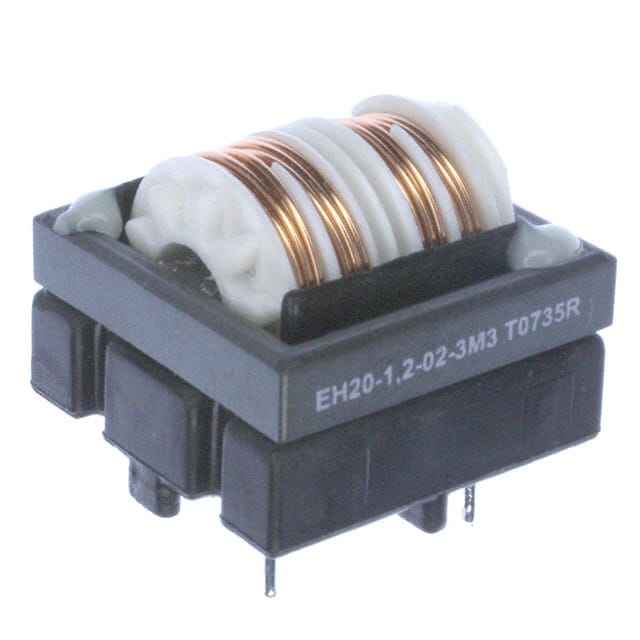

EH20-1.2-02-3M3CMC 3.3MH 1.2A 2LN TH |
3,795 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 3.3 mH @ 400 Hz | 1.2A | 127mOhm (Typ) | - | 250V | -25°C ~ 100°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
