Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

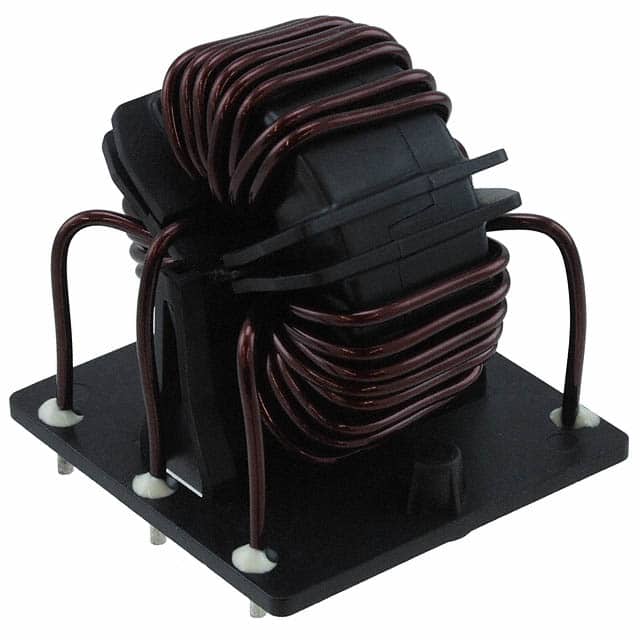

RB6532-16-0M8CMC 800UH 16A 3LN TH |
1,652 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 800 µH @ 1 kHz | 16A | 4.7mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RB6522-36-0M5CMC 450UH 36A 2LN TH |
4,295 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 400 Hz | 36A | 1.5mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|

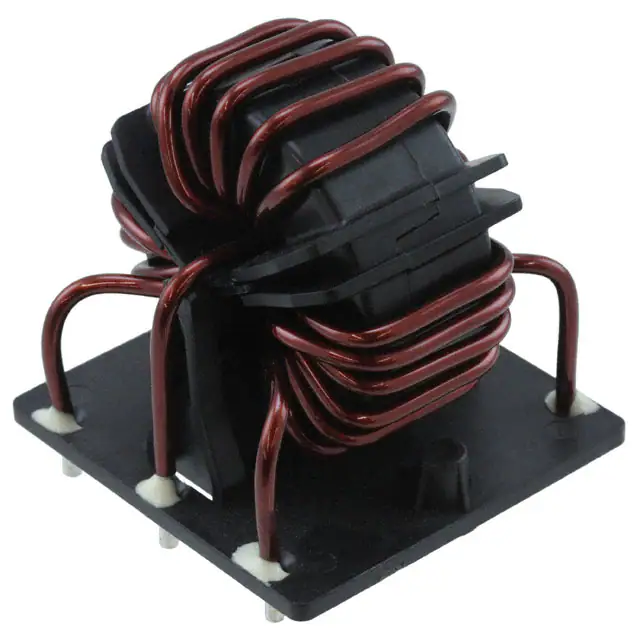

RB6532-25-0M5CMC 470UH 25A 3LN TH |
1,330 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 470 µH @ 400 Hz | 25A | 2.4mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD7127-10-14M0CMC 14MH 10A 2LN TH |
3,451 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 14 mH @ 1 kHz | 10A (Typ) | 33.5mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
RD7127-16-5M7CMC 5.7MH 16A 2LN TH |
2,046 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 5.7 mH @ 400 Hz | 16A (Typ) | 14.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
|
RD7127-25-2M8CMC 2.8MH 25A 2LN TH |
1,649 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.8 mH @ 400 Hz | 25A (Typ) | 6.4mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RB8532-25-0M9CMC 940UH 25A 3LN TH |
1,009 | - |
|
Datasheet | Vertical, 6 PC Pin | Power Line | 3 | - | 940 µH @ 400 Hz | 25A | 3mOhm (Typ) | 1000V (1kV) | 600V | -40°C ~ 125°C | - | - | - | - | - |
|
RD7137-25-1M3CMC 1.3MH 25A 3LN TH |
1,715 | - |
|
Datasheet | - | Power Line | 3 | - | 1.3 mH @ 400 Hz | 25A (Typ) | 4.45mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-6-6M0CMC 6MH 6A 4LN TH |
1,931 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 6 mH @ 400 Hz | 6A (Typ) | 45.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
|
RD7147-10-3M5CMC 3.5MH 10A 4LN TH |
1,651 | - |
|
Datasheet | Horizontal, 8 PC Pin | Power Line | 4 | - | 3.5 mH @ 400 Hz | 10A (Typ) | 19.1mOhm (Typ) | 850V | 600V | -25°C ~ 110°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
