Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SPDL485025-1000-2P-TCMC 2A 2LN 1K OHM SMD |
4,445 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 2A | 24mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-100-2P-TCMC 6.5A 2LN 100 OHM SMD |
2,709 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 6.5A | 9mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-1400-2P-TCMC 1.5A 2LN 1.4K OHM SMD |
2,237 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.5A | 40mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
SPDL2012-361-2P-TCMC 300MA 2LN 360OHM SMD AECQ200 |
2,004 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 360 Ohms @ 100 MHz | - | 300mA | 500mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL485025-250-2P-TCMC 5A 2LN 250 OHM SMD |
1,495 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 14mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-350-2P-TCMC 4A 2LN 350 OHM SMD |
2,486 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 350 Ohms @ 100 MHz | - | 4A | 28mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-500-2P-TCMC 4A 2LN 500 OHM SMD |
1,716 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 19mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
LPTC-V-0.85-5-35CMC 850UH 5A 2LN TH |
980 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 850 µH @ 1 kHz | 5A | 35mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

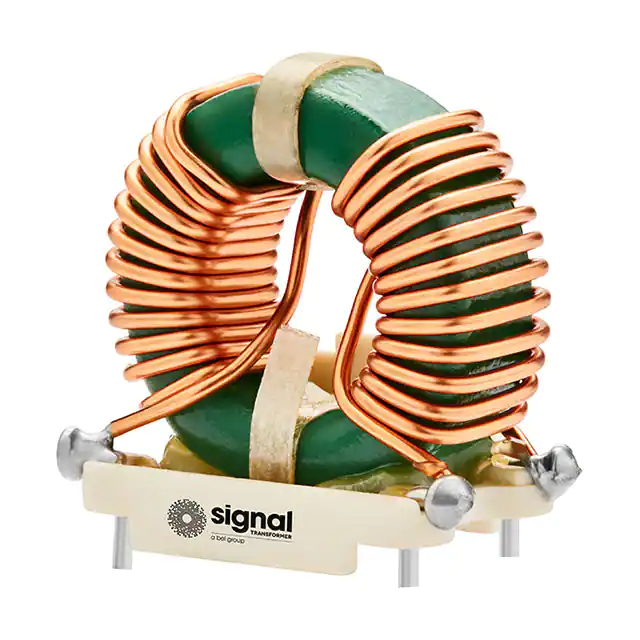

HCTC-1-10CMC 1MH 10A 2LN TH |
3,352 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 10A | 10mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
SPDL764WM-500-2P-TCMC 4A 2LN 500 OHM SMD |
1,226 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 15Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
