Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

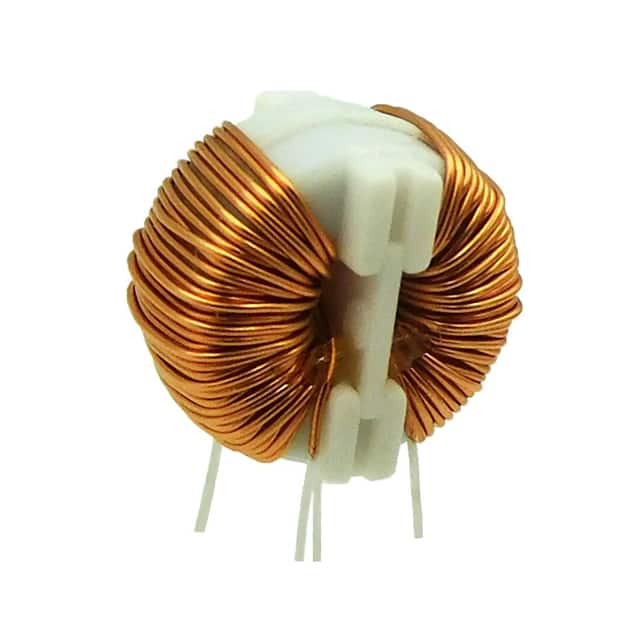

LPTC-V-4.25-1-150CMC 4.25MH 1A 2LN TH |
1,150 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 4.25 mH @ 1 kHz | 1A | 150mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
LPTC-V-0.51-3-20CMC 510UH 3A 2LN TH |
1,461 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 510 µH @ 1 kHz | 3A | 20mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

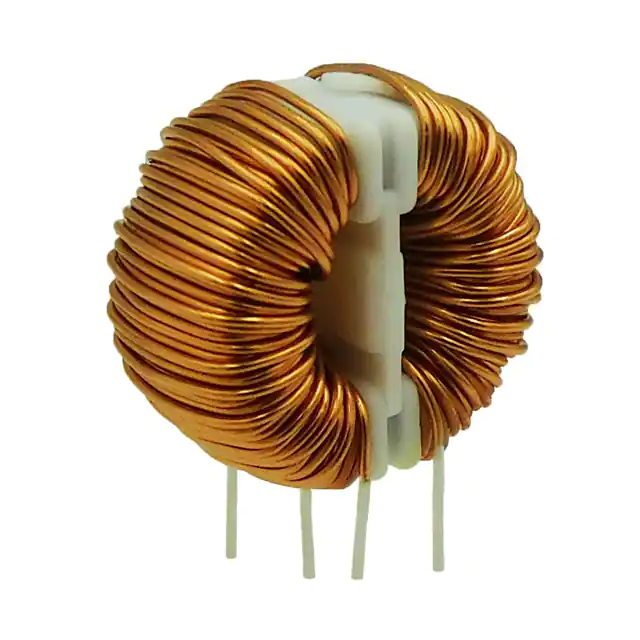

LPTC-V-6.8-2-200CMC 6.8MH 2A 2LN TH |
168 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 6.8 mH @ 1 kHz | 2A | 200mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|

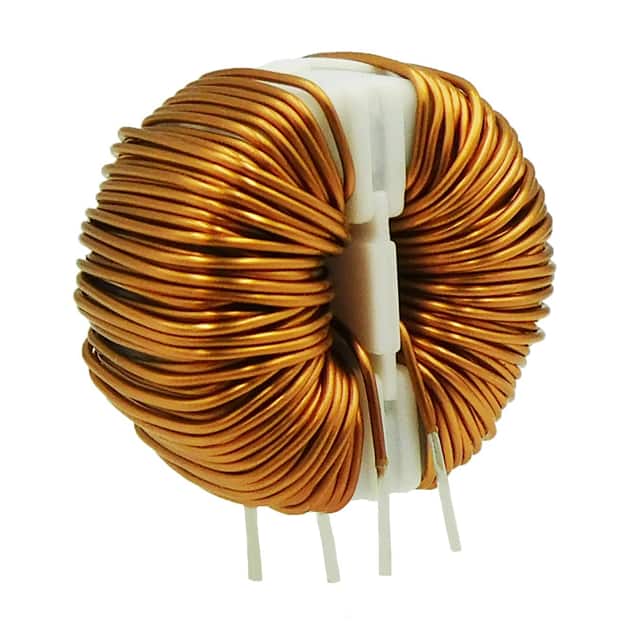

LPTC-V-25.5-4-130CMC 25.5MH 4A 2LN TH |
452 | - |
|
Datasheet | Vertical, No Base, 4 PC Pin | Power Line | 2 | - | 25.5 mH @ 1 kHz | 4A | 130mOhm | - | - | -55°C ~ 125°C | - | - | - | - | - |
|
SPDL3216-222-2P-TCMC 200MA 2LN 2.2KOHM SMD |
4,654 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.2 kOhms @ 100 MHz | - | 200mA | 1.2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

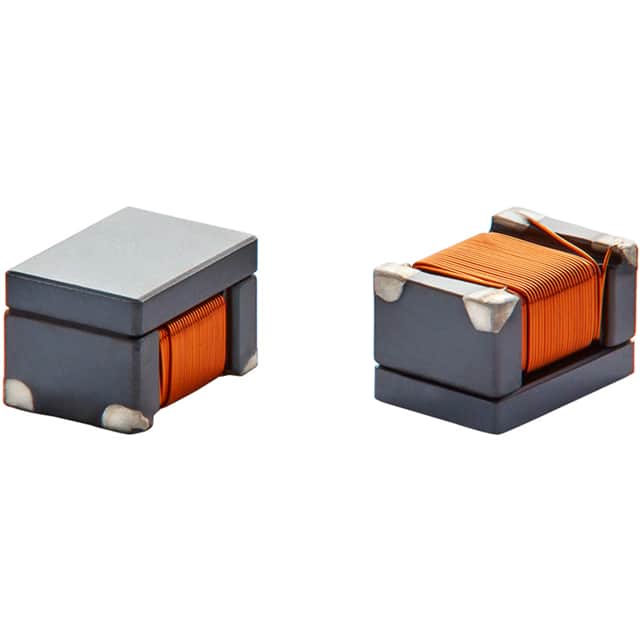

SPDL3225-101-2P-TCMC 100UH 150MA 2LN 5.1KOHM SMD |
940 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 5.1 kOhms @ 10 MHz | 100 µH @ 100 kHz | 150mA | 1.5Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL4532-510-2P-TCMC 51UH 230MA 2LN 2.8KOHM SMD |
105 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL4532-220-2P-TCMC 22UH 310MA 2LN 1.2KOHM SMD |
213 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.2 kOhms @ 10 MHz | 22 µH @ 100 kHz | 310mA | 1Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL4532-110-2P-TCMC 11UH 360MA 2LN 600OHM SMD |
169 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 10 MHz | 11 µH @ 100 kHz | 360mA | 600mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SPDL4532-101-2P-TCMC 100UH 200MA 2LN 5.8KOHM SMD |
125 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 5.8 kOhms @ 10 MHz | 100 µH @ 100 kHz | 200mA | 2Ohm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
