Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPDL764WM-40-2P-T2 LINE SMD COMMON MODE CHOKE 40 |
2,841 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 40 Ohms @ 100 MHz | - | 15A | 5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

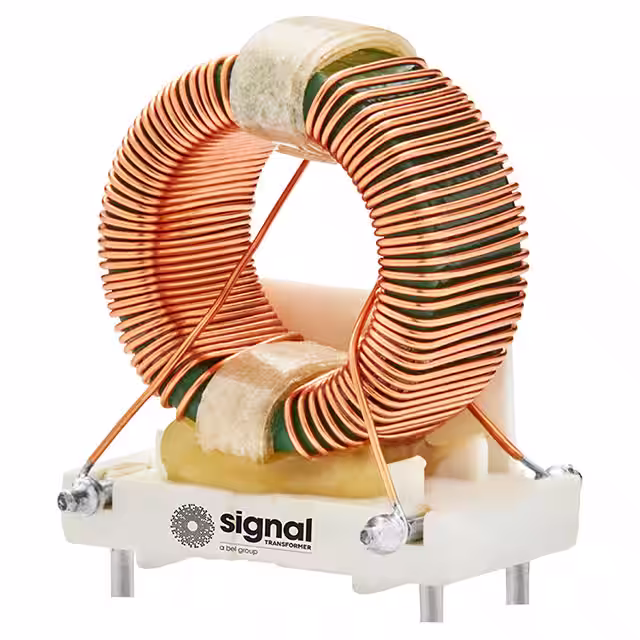

HCTC-4-1.7CMC 4MH 1.7A 2LN TH |
3,917 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4 mH @ 1 kHz | 1.7A | 173mOhm | - | - | -55°C ~ 105°C | - | - | - | - | - |
|
|
SPDL975WM-225-2P-TCMC 6MA 2LN 225 OHM SMD |
3,173 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 225 Ohms @ 100 MHz | - | 6mA | 6Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL975WM-750-2P-TCMC 4MA 2LN 750 OHM SMD |
4,617 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 750 Ohms @ 100 MHz | - | 4mA | 13Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL975WM-450-2P-TCMC 5.5MA 2LN 450 OHM SMD |
4,568 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 450 Ohms @ 100 MHz | - | 5.5mA | 8Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL975WM-2000-2P-TCMC 2MA 2LN 2K OHM SMD |
3,990 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2 kOhms @ 100 MHz | - | 2mA | 65Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL975WM-2500-2P-TCMC 1.9MA 2LN 2.5K OHM SMD |
1,244 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 2.5 kOhms @ 100 MHz | - | 1.9mA | 70Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL975WM-1700-2P-TCMC 2.5MA 2LN 1.7K OHM SMD |
1,250 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.7 kOhms @ 100 MHz | - | 2.5mA | 60Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL121006-80-2P-TCMC 10MA 2LN 80 OHM SMD |
3,388 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 80 Ohms @ 100 MHz | - | 10mA | 4Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL121006-910-2P-TCMC 4.5MA 2LN 910 OHM SMD |
3,520 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 910 Ohms @ 100 MHz | - | 4.5mA | 23Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
