Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CM01S600TCMC 300MA 2LN 60 OHM SMD |
1,597 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 60 Ohms @ 100 MHz | - | 300mA | 400mOhm | 20V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
CM01U900TCMC 400MA 2LN 90 OHM SMD |
1,551 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 400mA | 300mOhm | 20V | - | -40°C ~ 125°C | - | - | - | - | - |
|

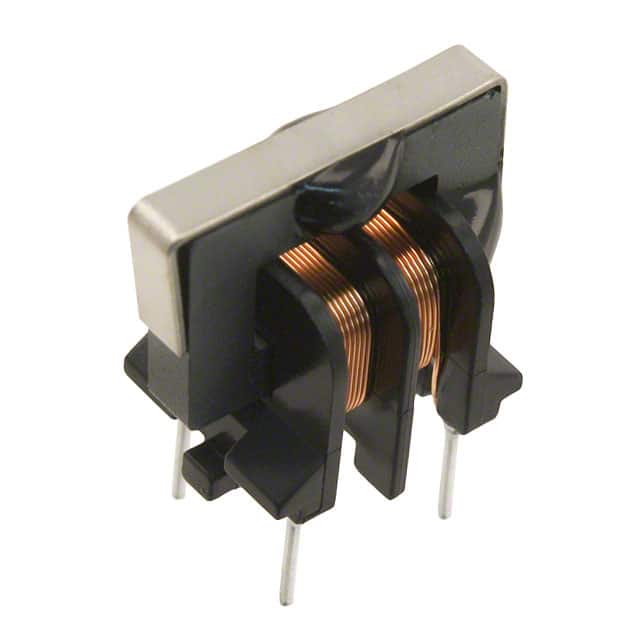

TLF9UA102W0R8K1CMC 1MH 800MA 2LN TH |
4,154 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 800mA | 500mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA202WR54K1CMC 2MH 540MA 2LN TH |
4,440 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2 mH @ 1 kHz | 540mA | 1Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA502WR32K1CMC 5MH 320MA 2LN TH |
4,741 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5 mH @ 1 kHz | 320mA | 2.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA802WR25K1CMC 250MA 2LN TH |
1,386 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 250mA | 4Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UA103WR23K1CMC 10MH 230MA 2LN TH |
3,707 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 230mA | 4.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|

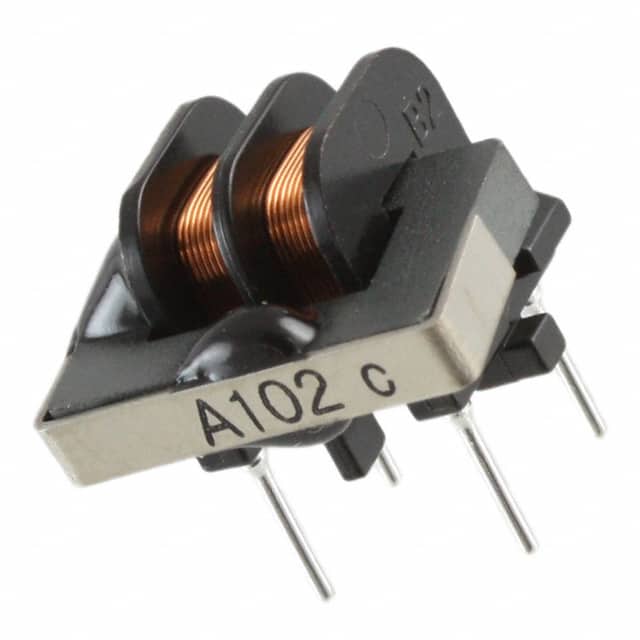

TLF9UAH102W0R8K1CMC 1MH 800MA 2LN TH |
1,378 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 800mA | 500mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH153W0R2K1CMC 200MA 2LN TH |
2,771 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 200mA | 5.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH302WR42K1CMC 420MA 2LN TH |
4,718 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 420mA | 1.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
