Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TLF9UAH502WR32K1CMC 320MA 2LN TH |
2,281 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 320mA | 2.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH802WR25K1CMC 8MH 250MA 2LN TH |
4,249 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 8 mH @ 1 kHz | 250mA | 4Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UAH103WR23K1CMC 10MH 230MA 2LN TH |
1,405 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 1 kHz | 230mA | 4.5Ohm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UB203WK1CMC 180MA 2LN 150K OHM TH |
1,276 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 150 kOhms @ 500 kHz | - | 180mA | 6.5Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UB302WK1CMC 400MA 2LN 20K OHM TH |
1,166 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 20 kOhms @ 1 MHz | - | 400mA | 1.5Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UB802WK1CMC 300MA 2LN 40K OHM TH |
1,002 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 40 kOhms @ 700 kHz | - | 300mA | 3Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UBH203WK1CMC 180MA 2LN 150K OHM TH |
4,513 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 150 kOhms @ 500 kHz | - | 180mA | 6.5Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|
TLF9UBH802WK1CMC 300MA 2LN 40K OHM TH |
2,561 | - |
|
Datasheet | Vertical, 4 PC Pin | Signal Line | 2 | 40 kOhms @ 700 kHz | - | 300mA | 3Ohm | 50V | - | -25°C ~ 105°C | - | - | - | - | - |
|

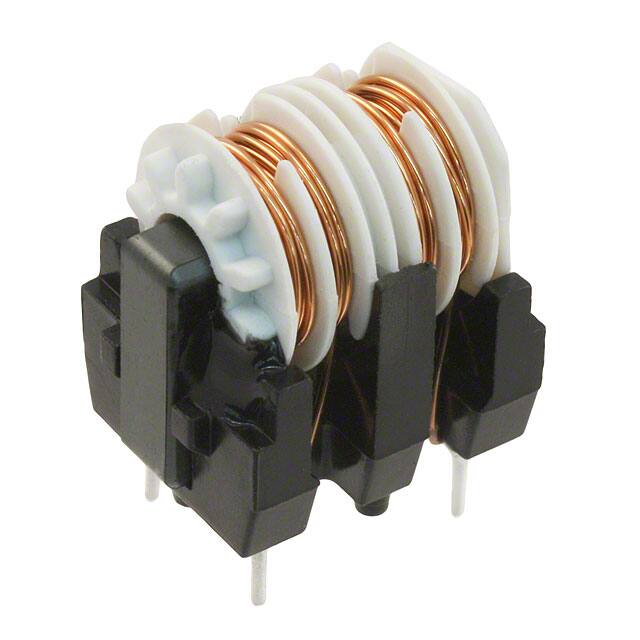

TLF14CB1021R5K1CMC 1MH 1.5A 2LN TH |
2,267 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 1.5A | 100mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
|
TLF14CB2221R2K1CMC 2.2MH 1.2A 2LN TH |
2,650 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 1 kHz | 1.2A | 180mOhm | - | 250V | -25°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
