Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MCZ0806AH220L2TA0GCMC 100MA 2LN 22 OHM SMD |
2,317 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 22 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
MCZ1210CH900L2CMC 100MA 2LN 90 OHM SMD |
19,088 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 3Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|
TCM0605G-650-2P-T201CMC 100MA 2LN 65 OHM SMD |
4,488 | - |
|
Datasheet | 0202 (0505 Metric), 4 PC Pad | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 100mA | 2.7Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
ACM2012E-670-2P-T01CMC 500MA 2LN 67 OHM SMD |
1,476 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 500mA | 350mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
TCM0806G-151-2PCMC 50MA 2LN 150 OHM SMD |
6,728 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 150 Ohms @ 100 MHz | - | 50mA | 3.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
TCM0806S-350-2PCMC 100MA 2LN 35 OHM SMD |
10,268 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.5Ohm | 10V | - | -25°C ~ 85°C | - | - | - | - | - |
|
TCE0806S-350-2PCMC 100MA 2LN 35 OHM SMD ESD |
4,735 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 1.8Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
TCE0806S-500-2P-T200CMC 100MA 2LN 50 OHM SMD ESD |
418 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 2.5Ohm | 10V | - | -25°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

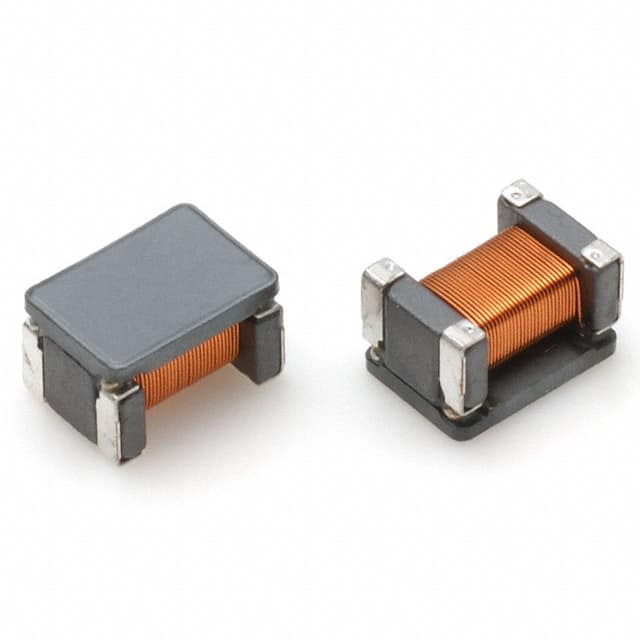

LGJ45B-110-2P-TL003CMC 250MA 2LN 300OHM SMD AECQ200 |
1,409 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 300 Ohms @ 10 MHz | - | 250mA | 600mOhm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
LGJ45B-510-2P-TL003CMC 200MA 2LN 1KOHM SMD AEC-Q200 |
1,006 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 1 kOhms @ 10 MHz | - | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
