Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LGJ45B-101-2P-TL003CMC 150MA 2LN 2KOHM SMD AEC-Q200 |
184 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 2 kOhms @ 10 MHz | - | 150mA | 2Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
|
LGJ45B-220-2P-TL003CMC 200MA 2LN 500OHM SMD AECQ200 |
2,485 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 500 Ohms @ 10 MHz | - | 200mA | 1Ohm | 50V | - | -40°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
ACM2520-601-2P-T002CMC 300MA 2LN 600 OHM SMD |
768 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 600 Ohms @ 100 MHz | - | 300mA | 450mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM4520-142-2P-T000CMC 1.7A 2LN 1.4K OHM SMD |
516 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.4 kOhms @ 100 MHz | - | 1.7A | 80mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM2012H-900-2P-T06CMF,MULTI-GIG ETHERNET, ~125C |
257 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 300mA | 300mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ACM4520-231-2P-T000CMC 3A 2LN 230 OHM SMD |
1,559 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 3A | 50mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACT45C-510-2P-TL000CMC 51UH 200MA AEC-Q200 125DEGC |
787 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | 2.8 kOhms @ 10 MHz | 51 µH @ 100 kHz | 200mA | 1Ohm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
MCZ2010CH240L4T000CMC 100MA 4LN 24 OHM SMD |
678 | - |
|
Datasheet | 0804 (2010 Metric), 8 Lead | Signal Line | 4 | 24 Ohms @ 100 MHz | - | 100mA | 1Ohm | 5V | - | -40°C ~ 85°C | - | - | - | - | - |
|

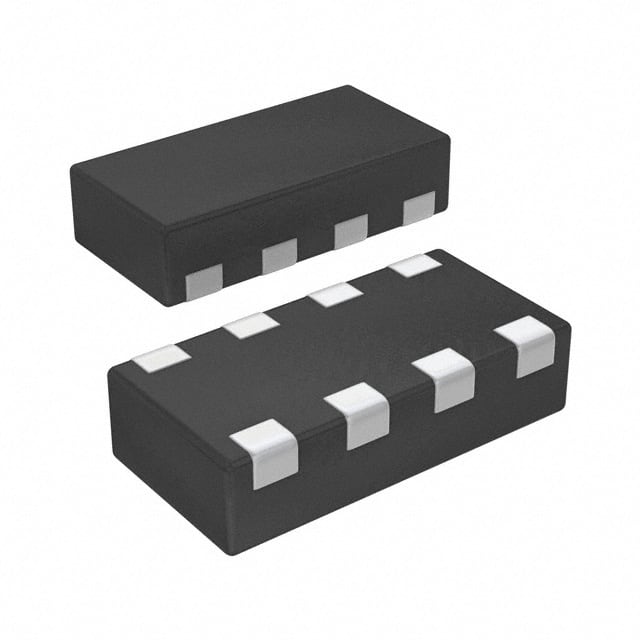

TCM1608G-650-4P-T200CMC 100MA 4LN 65 OHM SMD |
4,181 | - |
|
Datasheet | 0603 (1608 Metric), 8 Lead | Signal Line | 4 | 65 Ohms @ 100 MHz | - | 100mA | 1.3Ohm | 5V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACM2012-201-2P-T002CMC 350MA 2LN 200 OHM SMD |
4,938 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 200 Ohms @ 100 MHz | - | 350mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
