Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

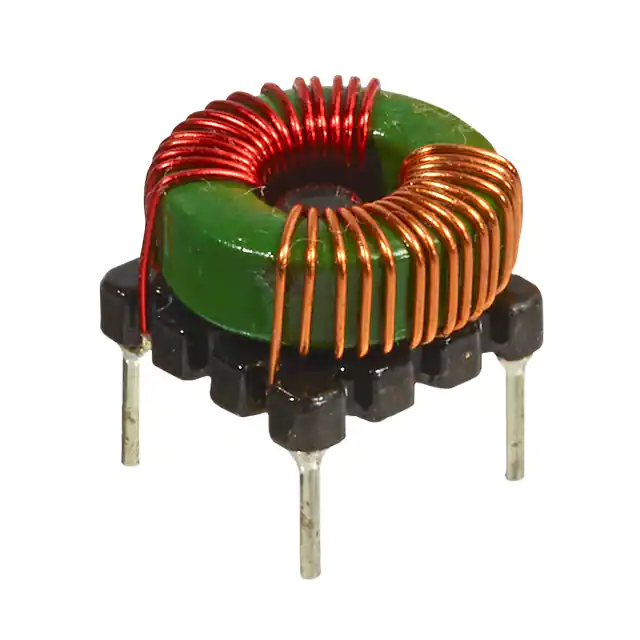

TCK-051CMC 145UH 5.2A 2LN TH |
1,802 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 145 µH @ 100 kHz | 5.2A | 20mOhm | 500V | - | - | - | - | - | - | - |
|
|
TCK-050CMC 325UH 3.3A 2LN TH |
8,716 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 325 µH @ 100 kHz | 3.3A | 35mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-048CMC 450UH 5.2A 2LN TH |
2,543 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 450 µH @ 100 kHz | 5.2A | 25mOhm | 500V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
TCK-017CMC 497UH 1.7A 2LN TH |
515 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 497 µH @ 100 kHz | 1.7A | 100mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-076CMC 55UH 5.7A 2LN TH |
154 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 55 µH @ 100 kHz | 5.7A | 8.5mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|

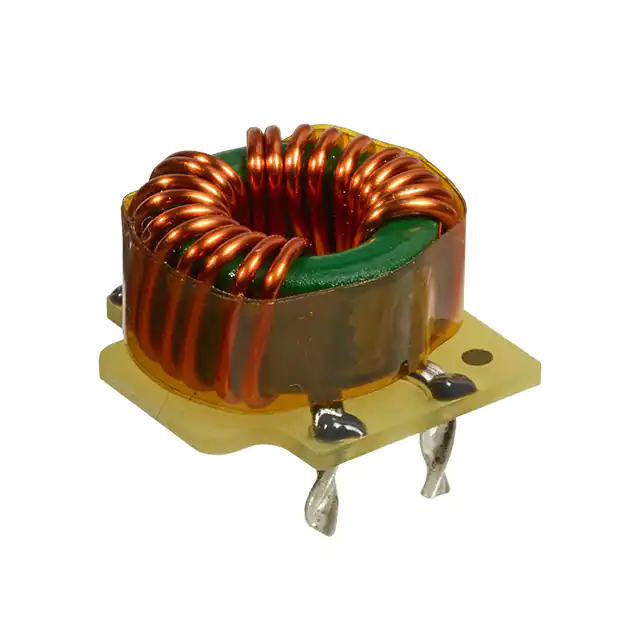

TCK-086CMC 156UH 25A 2LN TH |
885 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 156 µH @ 100 kHz | 25A | 2.5mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-117CMC 52UH 2LN TH |
367 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 52 µH @ 10 kHz | - | 15mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-092CMC 45UH 2LN TH |
193 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 45 µH @ 100 kHz | - | 1.4mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-113CMC 806UH 5.7A 2LN TH |
150 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 806 µH @ 100 kHz | 5.7A | 25mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-101CMC 305UH 2LN TH |
126 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 305 µH @ 100 kHz | - | 10mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
