Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCK-067CMC 620UH 7.5A 2LN TH |
1,643 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 620 µH @ 100 kHz | 7.5A | 25mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-122CMC SMD |
4,995 | - |
|
Datasheet | Horizontal, 4 Flat Lead | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

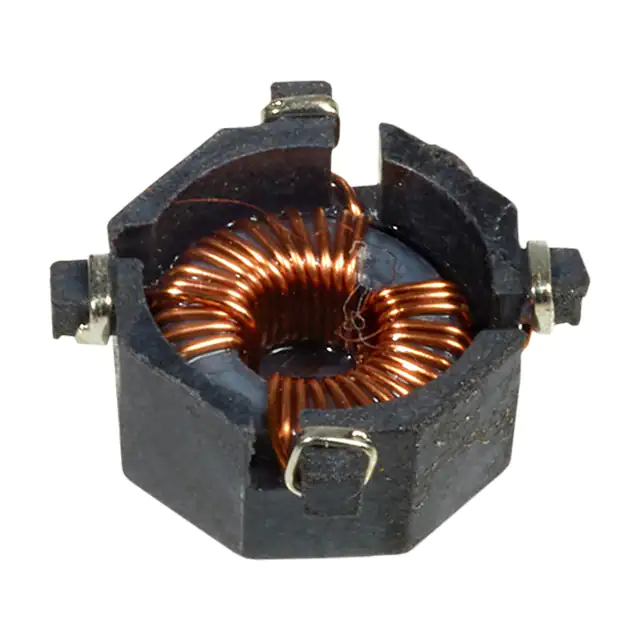

TCK-090CMC 470UH 1A 2LN SMD |
3,878 | - |
|
Datasheet | Horizontal, 4 Flat Lead | - | 2 | - | 470 µH @ 10 kHz | 1A | 60mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-088CMC 521UH 2LN TH |
2,885 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 521 µH @ 100 kHz | - | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-127CMC 137UH 2LN TH |
1,764 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 137 µH @ 10 kHz | - | 24mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-096CMC 160UH 2LN TH |
1,554 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 160 µH @ 100 kHz | - | 6.75mOhm | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-123CMC 1.219MH 4A 2LN TH |
3,485 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 1.219 mH @ 100 kHz | 4A | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
TCK-119CMC 419UH 780MA 2LN TH |
1,889 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 419 µH @ 10 kHz | 780mA | - | 500V | - | -40°C ~ 105°C | - | - | - | - | - |
|
TCK-162CMC 55.6UH 1A 4LN SMD |
4,714 | - |
|
Datasheet | Horizontal, 4 Gull Wing | - | 4 | - | 55.6 µH @ 100 kHz | 1A | 30mOhm | 500V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
TCK-099CMC 4.7UH 5A 2LN 23.3 MOHM SMD |
2,146 | - |
|
Datasheet | Nonstandard | - | 2 | 23.3 mOhms @ 100 kHz | 4.7 µH @ 100 kHz | 5A | - | - | - | - | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
