Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60405R6123X220CMC 470UH 20.5A 2LN 500 OHM TH |
5,464 |
1+：$6.72000 10+：$5.40800 25+：$4.96640 50+：$4.65860 100+：$4.37170 250+：$4.02168 500+：$3.77724 1000+：$3.54897 2500+：$3.42501 |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 500 Ohms @ 100 kHz | 470 µH @ 100 kHz | 20.5A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

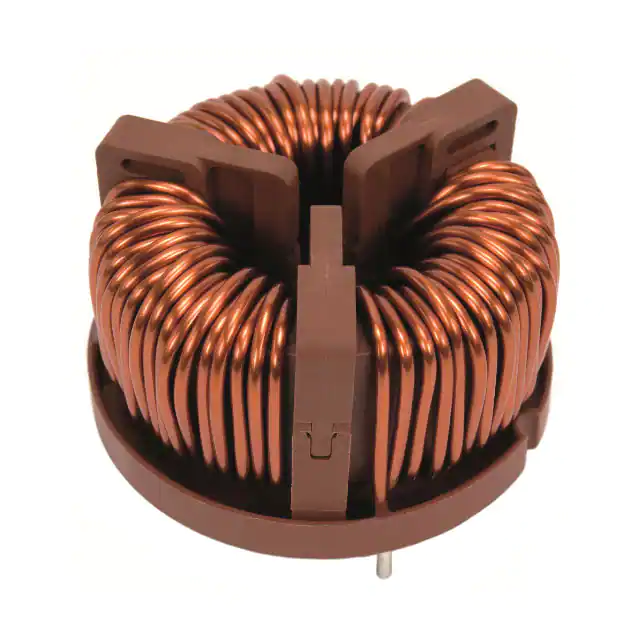

T60405R6123X213CMC 2.96MH 12.4A 2LN 2.95KOHM TH |
2,743 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 2.95 kOhms @ 100 kHz | 2.96 mH @ 100 kHz | 12.4A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6123X616CMC 3.1MH 16A 2LN 3K OHM TH |
1,345 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 3 kOhms @ 100 kHz | 3.1 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
T60405R6128X225CMC 1.01MH 25A 2LN 970 OHM TH |
182 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 970 Ohms @ 100 kHz | 1.01 mH @ 100 kHz | 25A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
T60405S6123X317CMC 2.2MH 16A 3LN 2.4 KOHM TH |
5,205 |
1+：$16.38000 18+：$12.51556 27+：$12.05889 54+：$11.31981 108+：$10.62972 252+：$9.84806 504+：$9.33750 |
|
Datasheet | Horizontal, 6 PC Pin | - | 3 | 2.4 kOhms @ 100 kHz | 2.2 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6123X227CMC 2.8MH 25A 2LN 2.9K OHM TH |
694 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 2.9 kOhms @ 100 kHz | 2.8 mH @ 100 kHz | 25A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405S6123X140CMC 580UH 40A 3LN 600 OHM TH |
194 |
1+：$22.83000 16+：$17.65000 32+：$16.56719 64+：$15.55672 112+：$14.79000 256+：$13.73199 512+：$13.56250 |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | 600 Ohms @ 100 kHz | 580 µH @ 100 kHz | 40A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6123X263CMC 370UH 63A 2LN 390 OHM TH |
1,317 | - |
|
Datasheet | Horizontal, 8 PC Pin | - | 2 | 390 Ohms @ 100 kHz | 370 µH @ 100 kHz | 63A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6123X210CMC 2.96MH 10A 2LN 3.2 KOHM TH |
4,930 |
1+：$7.13000 10+：$5.74000 25+：$5.27200 50+：$4.94560 100+：$4.64120 250+：$4.26984 500+：$4.01050 1000+：$3.76827 2500+：$3.66250 |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | 3.2 kOhms @ 100 kHz | 2.96 mH @ 100 kHz | 10A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

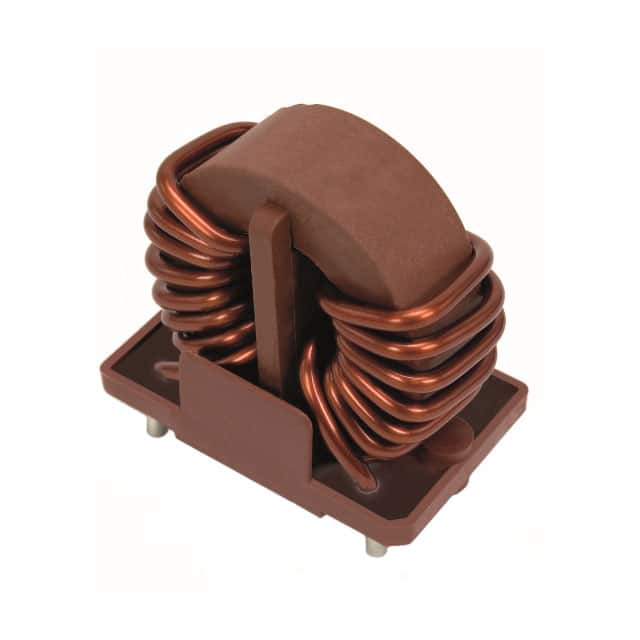

T60405R6166X033CMC 1.53MH 18A 2LN 1.6K OHM TH |
5,176 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 1.6 kOhms @ 100 kHz | 1.53 mH @ 100 kHz | 18A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
