Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T60405S6123X240CMC 810UH 40A 3LN 680 OHM TH |
921 | - |
|
Datasheet | Horizontal, 6 PC Pin | - | 3 | 680 Ohms @ 100 kHz | 810 µH @ 100 kHz | 40A | - | - | - | -55°C ~ 60°C | - | - | - | - | - |
|
T60405R6126X216CMC 1.28MH 16A 2LN 1.3K OHM TH |
2,456 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 1.3 kOhms @ 100 kHz | 1.28 mH @ 100 kHz | 16A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
T60405R6131X204CMC 2.5MH 4.5A 2LN 2.32K OHM TH |
497 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 2.32 kOhms @ 100 kHz | 2.5 mH @ 100 kHz | 4.5A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

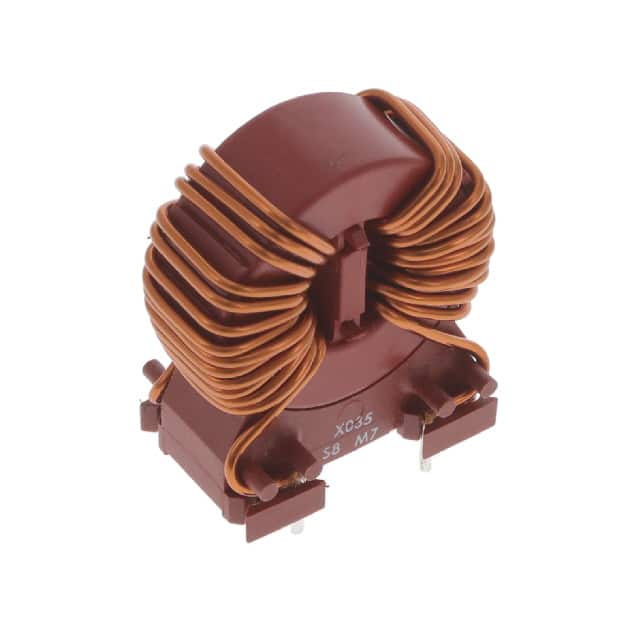

T60405R6166X035CMC 22A TH |
2,364 | - |
|
Datasheet | - | - | - | - | - | 22A | - | - | - | - | - | - | - | - | - |
|
|
T60405R6166X206CMC 7.58MH 6A 2LN 8.5K OHM TH |
160 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 8.5 kOhms @ 100 kHz | 7.58 mH @ 100 kHz | 6A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
T60405S6123X308CMC 2.5MH 11A 2LN 2.6K OHM TH |
2,096 | - |
|
Datasheet | Horizontal, 6 PC Pin | - | 2 | 2.6 kOhms @ 100 kHz | 2.5 mH @ 100 kHz | 11A | - | - | - | -55°C ~ 130°C | - | - | - | - | - |
|
|
T60405S6123X312CMC 3.7MH 12A 2LN 2.65K OHM TH |
107 | - |
|
Datasheet | Horizontal, 6 PC Pin | - | 2 | 2.65 kOhms @ 100 kHz | 3.7 mH @ 100 kHz | 12A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|

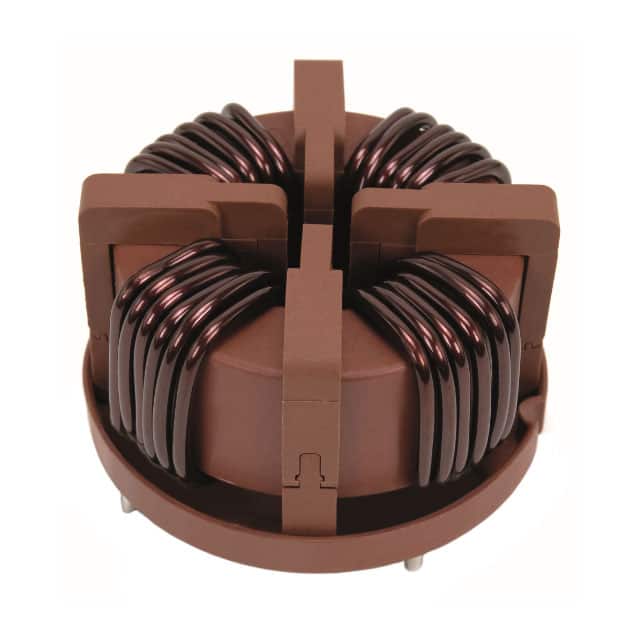

T60405S6123X401CMC 832UH 20A 4LN 860 OHM TH |
763 | - |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 860 Ohms @ 100 kHz | 832 µH @ 100 kHz | 20A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
T60405R6128X5306128X530 |
216 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | 1.4 kOhms @ 100 kHz | 1.4 mH @ 100 kHz | 30A | 2.7mOhm | - | - | -40°C ~ 60°C | - | - | - | - | - |
|
|
T60405S6123X402CMC 720UH 30A 4LN 750 OHM TH |
456 | - |
|
Datasheet | Horizontal, 8 PC Pin | - | 4 | 750 Ohms @ 100 kHz | 720 µH @ 100 kHz | 30A | - | - | - | -40°C ~ 130°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
