Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

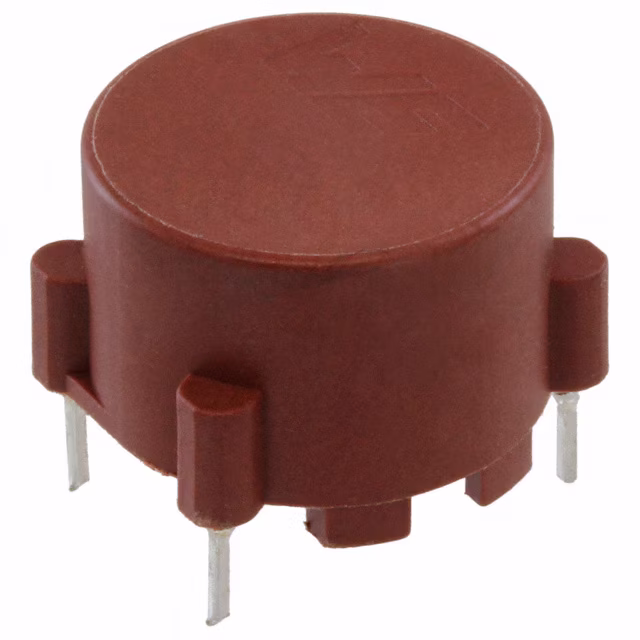

7446620015CMC 15MH 500MA 2LN TH |
133 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 15 mH @ 10 kHz | 500mA | 830mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446620027CMC 27MH 400MA 2LN TH |
113 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 400mA | 1.2Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
750315739CMC 2.5MH 760MA 2LN SMD |
758 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Power Line | 2 | - | 2.5 mH @ 10 kHz | 760mA | 620mOhm (Typ) | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
7446721027CMC 27MH 600MA 2LN TH |
134 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 27 mH @ 10 kHz | 600mA | 700mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446222002CMC 2.2MH 2A 2LN TH |
176 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 60mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|

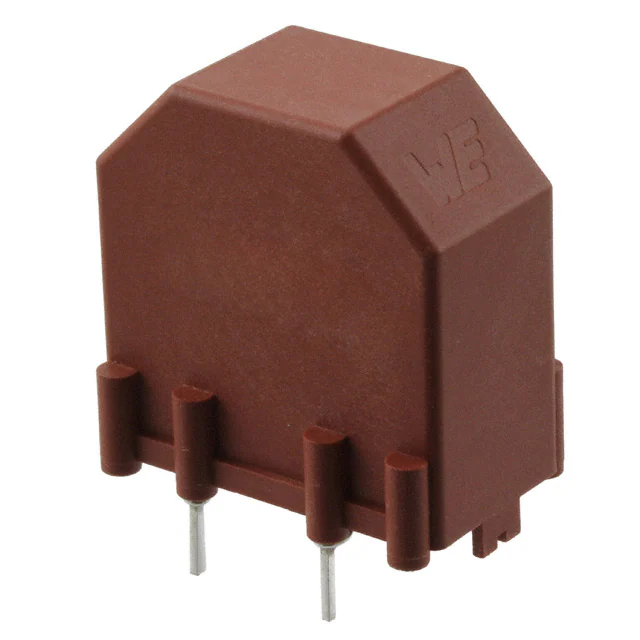

7446424002CMC 2.2MH 4.3A 2LN TH |
112 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 4.3A | 38mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
|
784234101WE-CNSA SMD COMMON MODE POWER LI |
729 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 9.85 kOhms @ 100 MHz | - | 100mA | 3.36Ohm | 80V | - | -40°C ~ 85°C | AEC-Q200 | - | - | - | - |
|
|
784234201WE-CNSA SMD COMMON MODE POWER LI |
358 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 10.5 kOhms @ 100 MHz | - | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
750314979CMC 15MH 850MA 2LN TH |
315 | - |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | 15 mH @ 10 kHz | 850mA | 684mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
|
750314980CMC 18MH 800MA 2LN TH |
313 | - |
|
Datasheet | Vertical, 4 PC Pin | - | 2 | - | 18 mH @ 10 kHz | 800mA | 734mOhm | - | - | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
