Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

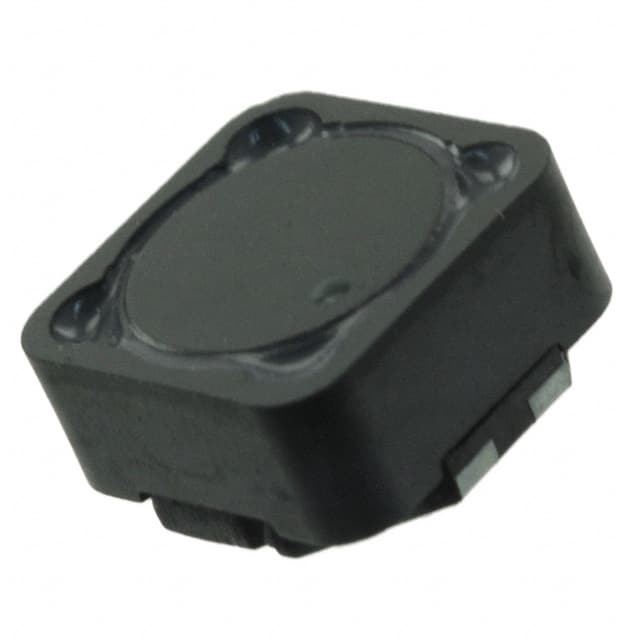

744282010CMC 1UH 4.75A 2LN 1.6K OHM SMD |
4,507 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1.6 kOhms @ 90 MHz | 1 µH @ 100 kHz | 4.75A | 12mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
7448227005CMC 450UH 6.5A 2LN TH |
3,369 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 450 µH @ 100 kHz | 6.5A | 10mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448031501CMC 1MH 15A 2LN TH |
4,833 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 10 kHz | 15A | 3.2mOhm | - | 300V | -55° C ~ 125°C | - | - | - | - | - |
|

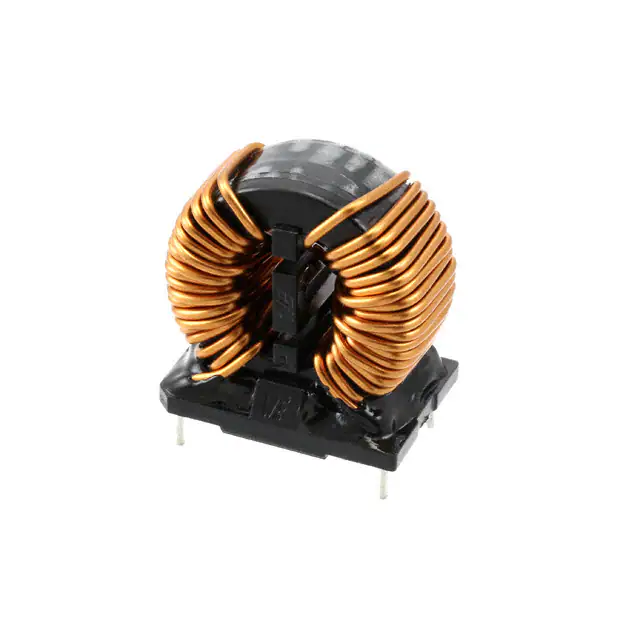

7448051012CMC 12MH 10A 2LN TH |
1,831 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 10A | 15mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448053201CMC 900UH 32A 2LN TH |
3,358 | - |
|
Datasheet | Vertical, 12 PC Pin | Power Line | 2 | - | 900 µH @ 10 kHz | 32A | 1.1mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744862100CMC 10MH 450MA 2LN TH |
4,800 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 450mA | 1.65Ohm | - | 400V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744824310CMC 10MH 3A 2LN TH |
4,028 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 3A | 105mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7446632003CMC 3.3MH 2.25A 2LN SMD |
3,799 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 3.3 mH @ 10 kHz | 2.25A | 150mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448680180CMC 150UH 20A 2LN TH |
1,068 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 150 µH @ 10 kHz | 20A | 1.9mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
|
|
7448680200CMC 120UH 23.5A 2LN TH |
4,122 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | 120 µH @ 10 kHz | 23.5A | 1.4mOhm | - | 250V | -40°C ~ 115°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
