Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448021230CMC 30MH 1.2A 2LN TH |
3,186 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 1.2A | 280mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
7448020680CMC 80MH 600MA 2LN TH |
3,382 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 80 mH @ 10 kHz | 600mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744844471CMC 470UH 9A 2LN TH |
3,407 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 470 µH @ 10 kHz | 9A | 16mOhm | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
744830007215CMC 700UH 21.5A 2LN TH |
2,825 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 700 µH @ 10 kHz | 21.5A | 3.8mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744833027110CMC 2.7MH 11A 3LN TH |
2,243 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 3 | - | 2.7 mH @ 10 kHz | 11A | 18mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|

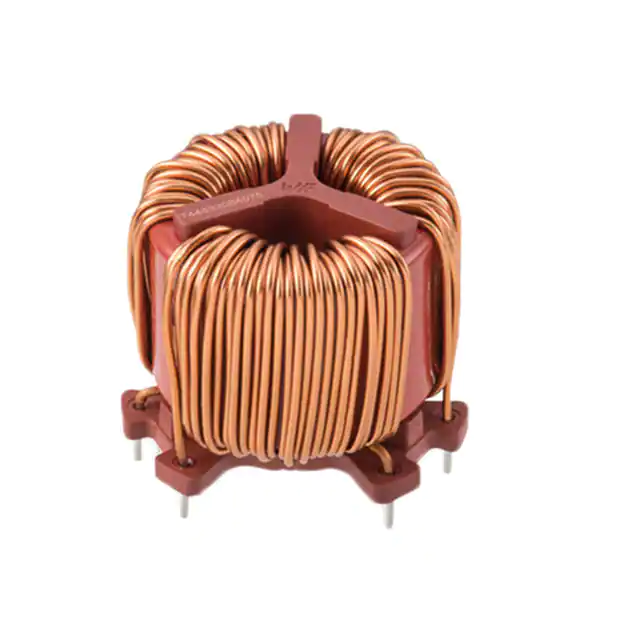

744833120060CMC 12MH 6A 3LN TH |
4,993 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 3 | - | 12 mH @ 10 kHz | 6A | 65mOhm | - | 500V | -40°C ~ 125°C | - | - | - | - | - |
|
744835021220CMC 2.1MH 22A 3LN TH |
2,596 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 2.1 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|

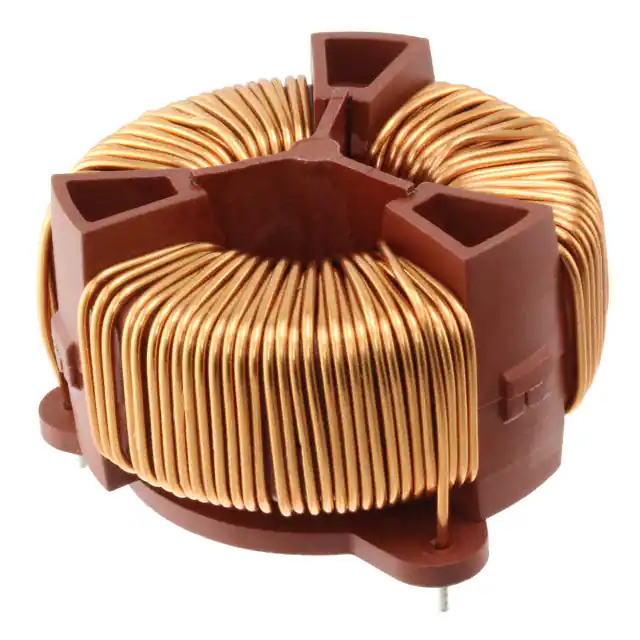

744837010290CMC 1MH 29A 3LN TH |
3,997 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 1 mH @ 10 kHz | 29A | 5mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
|
744837006400CMC 600UH 40A 3LN TH |
2,844 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 600 µH @ 10 kHz | 40A | 3.2mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
|
744839029220CMC 29MH 22A 3LN TH |
2,408 | - |
|
Datasheet | Horizontal, 6 PC Pin | Power Line | 3 | - | 29 mH @ 10 kHz | 22A | 9mOhm | - | 760V | -40°C ~ 125°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
