Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCFE121002A900TGCMC 100MA 2LN 90 OHM SMD ESD |
14,098 | - |
|
Datasheet | 0504 (1210 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

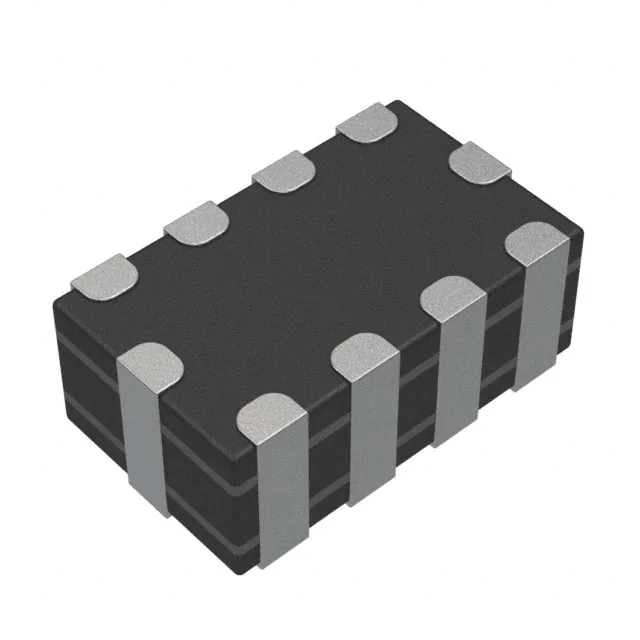

LCFE201204A101TGCMC 100MA 4LN 100 OHM SMD ESD |
2,733 | - |
|
Datasheet | 0805 (2012 Metric), 10 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFE080602A900TGCMC 100MA 2LN 90 OHM SMD ESD |
5,085 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCF080602A900TGCMC 100MA 2LN 90 OHM SMD |
18,976 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 6Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCFE121002A350TGCMC 100MA 2LN 35 OHM SMD ESD |
9,259 | - |
|
Datasheet | 0504 (1210 Metric), 6 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
LCFE121002H900TGCMC 100MA 2LN 90 OHM SMD ESD |
14,112 | - |
|
Datasheet | 0504 (1210 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

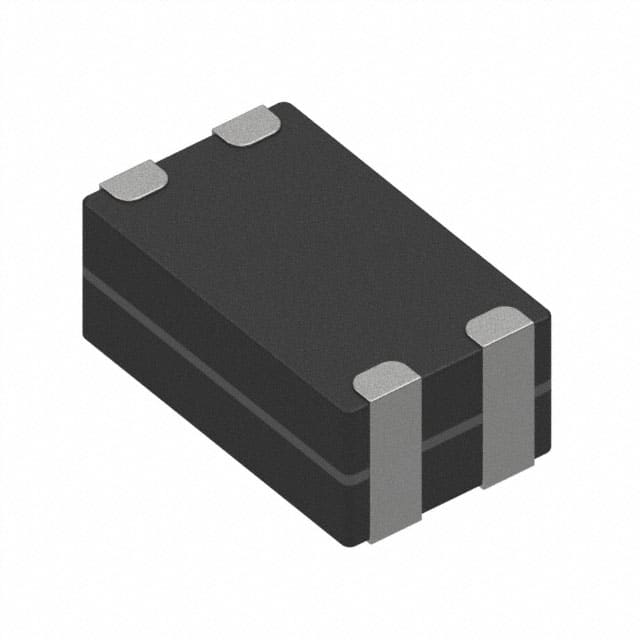

LCF201202A900TGCMC 100MA 2LN 90 OHM SMD |
9,310 | - |
|
Datasheet | 0805 (2012 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCFE121002A500TGCMC 100MA 2LN 50 OHM SMD ESD |
3,718 | - |
|
Datasheet | 0504 (1210 Metric), 6 Lead | Signal Line | 2 | 50 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
LCFE121002A120TGCMC 100MA 2LN 12 OHM SMD ESD |
1,341 | - |
|
Datasheet | 0504 (1210 Metric), 6 Lead | Signal Line | 2 | 12 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

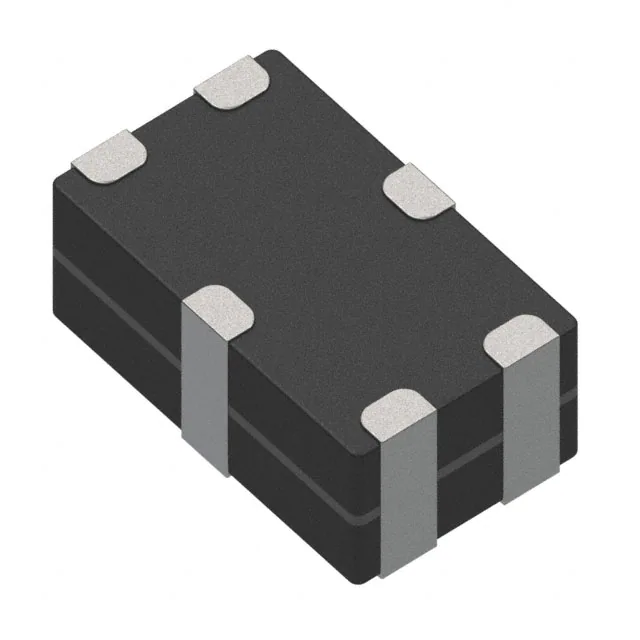

LCFE201202A900TGCMC 100MA 2LN 90 OHM SMD ESD |
6,842 | - |
|
Datasheet | 0805 (2012 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
