Common Mode Chokes
Compare the current Common Mode Chokes Filters selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LCFE201202A121TGCMC 100MA 2LN 120 OHM SMD ESD |
1,786 | - |
|
Datasheet | 0805 (2012 Metric), 6 Lead | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 100mA | 4Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

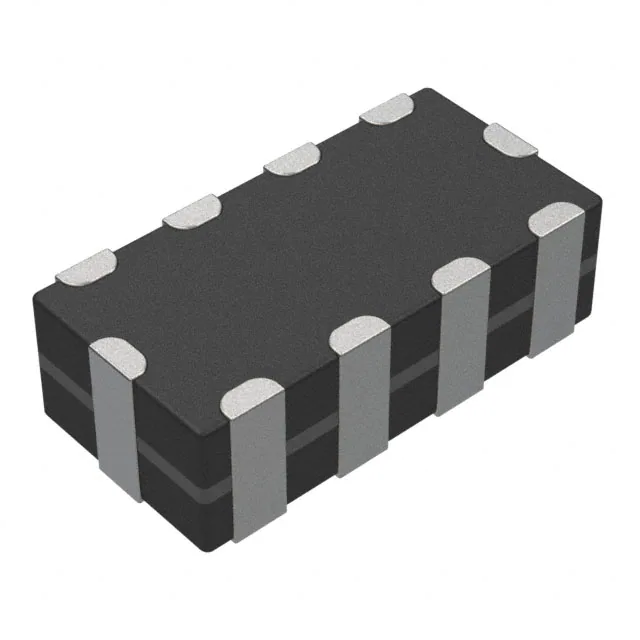

LCFE160804A550TGCMC 100MA 4LN 55 OHM SMD ESD |
2,736 | - |
|
Datasheet | 0603 (1608 Metric), 10 Lead | Signal Line | 4 | 55 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
LCFE160804H101TGCMC 100MA 4LN 100 OHM SMD ESD |
4,000 | - |
|
Datasheet | 0603 (1608 Metric), 10 Lead | Signal Line | 4 | 100 Ohms @ 100 MHz | - | 100mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCFE080602H900TGCMC 100MA 2LN 90 OHM SMD ESD |
12,240 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 100mA | 8Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
|
LCFE080602A750TGCMC 100MA 2LN 75 OHM SMD ESD |
13,986 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
LCF080602A250TGCMC 100MA 2LN 25 OHM SMD |
16,829 | - |
|
Datasheet | 0302 (0806 Metric), 4 Lead | Signal Line | 2 | 25 Ohms @ 100 MHz | - | 100mA | 5Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
LCF121002A350TGCMC 100MA 2LN 35 OHM SMD |
6,839 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 35 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF121002S750TGCMC 100MA 2LN 75 OHM SMD |
1,799 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
LCF121002B900TGCMC 130MA 2LN 90 OHM SMD |
10,641 | - |
|
Datasheet | 0504 (1210 Metric), 4 Lead | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 130mA | 4Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
|

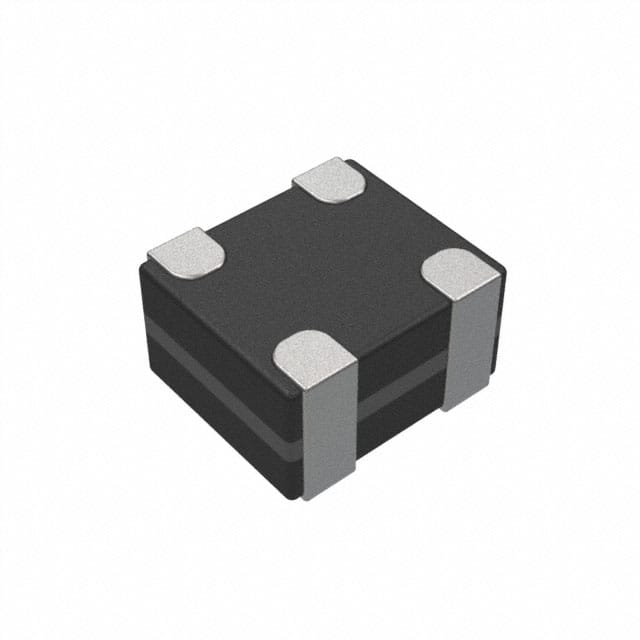

LCF060502A650TGCMC 50MA 2LN 65 OHM SMD |
3,873 | - |
|
Datasheet | 0202 (0605 Metric), 4 Lead | Signal Line | 2 | 65 Ohms @ 100 MHz | - | 50mA | 10Ohm | - | - | -40°C ~ 85°C | - | - | - | - | - |
Common Mode Chokes FAQ
How can I narrow the current Common Mode Chokes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Common Mode Chokes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
