Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DLW5BTH101TQ2LCMC 4A 2LN 100 OHM SMD AEC-Q200 |
1,241 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 100 Ohms @ 100 MHz | - | 4A | 13mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
B82730U3601A020CMC 4.7MH 600MA 2LN TH |
313 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 600mA | 920mOhm (Typ) | - | 300V | -40°C ~ 125°C | - | UR, VDE | - | - | - |
|
|
DLW5BTH501TQ2LCMC 2.5A 2LN 500OHM SMD AEC-Q200 |
150 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power, Signal Line | 2 | 500 Ohms @ 100 MHz | - | 2.5A | 27mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF7035A-301YCMC 4UH 5A 2LN 300OHM SMD |
2,101 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | 300 Ohms @ 100 MHz | 4 µH @ 100 kHz | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
SRF7035A-102YCMC 7.9UH 3A 2LN 1KOHM SMD |
979 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | 1 kOhms @ 100 MHz | 7.9 µH @ 100 kHz | 3A | 23mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
SRF7035A-302YCMC 22.6UH 1.2A 2LN 3KOHM SMD |
692 | - |
|
Datasheet | Horizontal, 4 J-Lead | Power Line | 2 | 3 kOhms @ 100 MHz | 22.6 µH @ 100 kHz | 1.2A | 72mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
7448640418CMC 33MH 300MA 2LN TH |
708 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 43 mH @ 10 kHz | 400mA | 2.5Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | - | - | - | - |
|
SU10VFC-R03370CMC 37MH 300MA 2LN TH |
603 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 37 mH @ 1 kHz | 300mA | 4.2Ohm | - | 250V | -25°C ~ 120°C | - | - | - | - | - |
|
B82722A2202N001CMC 2.2MH 2A 2LN TH |
725 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 2.2 mH @ 10 kHz | 2A | 130mOhm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
B82720A2301N040CMC 12MH 300MA 2LN TH |
2,608 | - |
|
Datasheet | Horizontal, 4 PC Pin | Power Line | 2 | - | 12 mH @ 10 kHz | 300mA | 1.1Ohm (Typ) | - | 250V | -40°C ~ 125°C | - | ENEC, UR, VDE | - | - | - |
|
ACMP-9050-222-TCMC 2.5A 2LN 2.2K OHM SMD |
1,929 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 2.5A | 60mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
APPM00070638701XY0CMC 4A 2LN 700 OHM SMD AEC-Q200 |
1,581 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 700 Ohms @ 100 MHz | - | 4A | 15mOhm | 125V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|

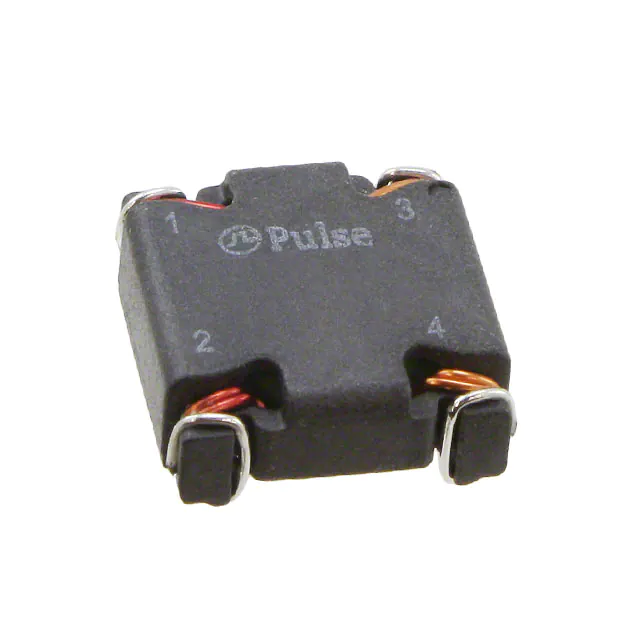

PA2745NLCMC 5A 2LN SMD |
4,951 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | - | - | 5A | 6.75mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
ACMP-Q7040-102-TCMC 3A 2LN 1.02KOHM SMD AEC-Q200 |
4,219 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1.02 kOhms @ 100 MHz | - | 3A | 17mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
PA2742NLCMC 1A 2LN SMD |
2,833 | - |
|
Datasheet | Vertical, 8 Flat Lead | - | 2 | - | - | 1A | 92mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
B82793C0513N201CMC 51UH 800MA 2LN SMD AEC-Q200 |
9,050 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | - | 51 µH @ 100 kHz | 800mA | 140mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW44SM101SK2LCMC 3.1A 2LN 100 OHM SMD |
3,217 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 100 Ohms @ 100 MHz | - | 3.1A | 22.4mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
B82793C0253N201CMC 25UH 800MA 2LN SMD AEC-Q200 |
2,190 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 25 µH @ 100 kHz | 800mA | 110mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
DLW44SM302SK2LCMC 1.1A 2LN 2.2KOHM SMD |
2,055 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 2.2 kOhms @ 100 MHz | - | 1.1A | 168mOhm | 60V | - | -40°C ~ 105°C | - | - | - | - | - |
|
|
B82793C0104N201CMC 100UH 500MA 2LN SMD AEC-Q200 |
2,801 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | 180mOhm (Typ) | 80V | 42V | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
