Common Mode Chokes
Browse available Common Mode Chokes components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRF0504-402YCMC 2.8UH 200MA 2LN 4KOHM SMD |
997 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 4 kOhms @ 100 MHz | 2.8 µH @ 100 kHz | 200mA | 300mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
CM1210A204R-1ACMC 200UH 70MA 2LN SMD AEC-Q200 |
7,293 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 70mA | 5.5Ohm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
ACM2012-102-2P-T001CMC 190MA 2LN 1KOHM SMD AEC-Q200 |
4,354 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 1 kOhms @ 100 MHz | - | 190mA | 1.5Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
|
ACM2012-681-2P-T001CMC 200MA 2LN 680OHM SMD AECQ200 |
7,154 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 680 Ohms @ 100 MHz | - | 200mA | 1.3Ohm | 50V | - | -40°C ~ 105°C | AEC-Q200 | - | - | - | - |
|
AWCU00453228201XTECMC 200UH 100MA 2LN SMD AEC-Q200 |
9,312 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | - | 200 µH @ 100 kHz | 100mA | 4.5Ohm | 50V | - | -40°C ~ 125°C | - | - | - | Automotive | AEC-Q200 |
|
AWCU00453226510XG0CMC 51UH 230MA 2LN 3.5KOHM SMD |
2,554 | - |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 3.5 kOhms @ 10 MHz | 51 µH @ 100 kHz | 230mA | 1Ohm | 50V | - | -50°C ~ 150°C | AEC-Q200 | - | - | - | - |
|
EMI8042MUTAGCMC 100MA 4LN SMD ESD |
2,914 | - |
|
Datasheet | 10-XFDFN | Signal Line | 4 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
DR331-104AECMC 100UH 500MA 2LN SMD |
1,472 | - |
|
Datasheet | Horizontal, 4 Flat Lead | Signal Line | 2 | - | 100 µH @ 100 kHz | 500mA | 100mOhm | 80V | 42V | -40°C ~ 135°C | - | - | - | - | - |
|
|
RCM70CGI-471COMMON-MODE CHOKE 470 UH |
1,548 | - |
|
Datasheet | Horizontal, 4 Gull Wing | Signal Line | 2 | - | 470 µH @ 100 kHz | 700mA | 170mOhm (Typ) | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-250-2P-TCMC 5A 2LN 250 OHM SMD |
1,495 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 250 Ohms @ 100 MHz | - | 5A | 14mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|

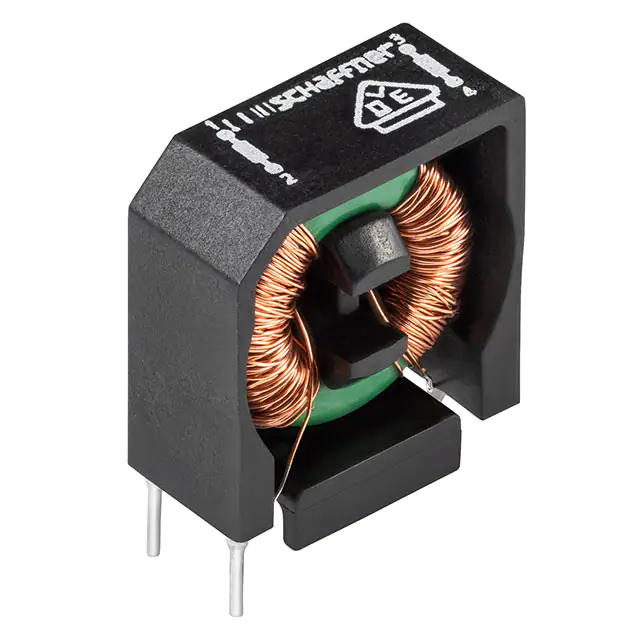

RC212-0.5-10MCMC 10MH 500MA 2LN TH |
291 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 10 mH @ 10 kHz | 500mA | 1Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
|
SPDL485025-350-2P-TCMC 4A 2LN 350 OHM SMD |
2,486 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 350 Ohms @ 100 MHz | - | 4A | 28mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
SPDL485025-500-2P-TCMC 4A 2LN 500 OHM SMD |
1,716 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 500 Ohms @ 100 MHz | - | 4A | 19mOhm (Typ) | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
RC212-0.7-4M7CMC 4.7MH 700MA 2LN TH |
1,034 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 4.7 mH @ 10 kHz | 700mA | 440mOhm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
|
RC212-0.3-30MCMC 30MH 300MA 2LN TH |
647 | - |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 30 mH @ 10 kHz | 300mA | 2.2Ohm | - | 250V | -40°C ~ 125°C | - | VDE | - | - | - |
|
LCFE080602A750TGCMC 100MA 2LN 75 OHM SMD ESD |
13,986 | - |
|
Datasheet | 0302 (0806 Metric), 6 Lead | Signal Line | 2 | 75 Ohms @ 100 MHz | - | 100mA | 6Ohm | 5V | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|
B82789C0113N002CMC 11UH 300MA 2LN SMD AEC-Q200 |
7,496 | - |
|
Datasheet | Horizontal, 4 L-Lead | Signal Line | 2 | - | 11 µH @ 100 kHz | 300mA | 250mOhm | 80V | 42V | -55°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
EMI8141MUTAGCMC 100MA 2LN SMD ESD |
16,473 | - |
|
Datasheet | 6-XFDFN | Signal Line | 2 | - | - | 100mA | 6Ohm (Typ) | - | - | -40°C ~ 85°C | - | - | TVS Diode ESD Protection | - | - |
|

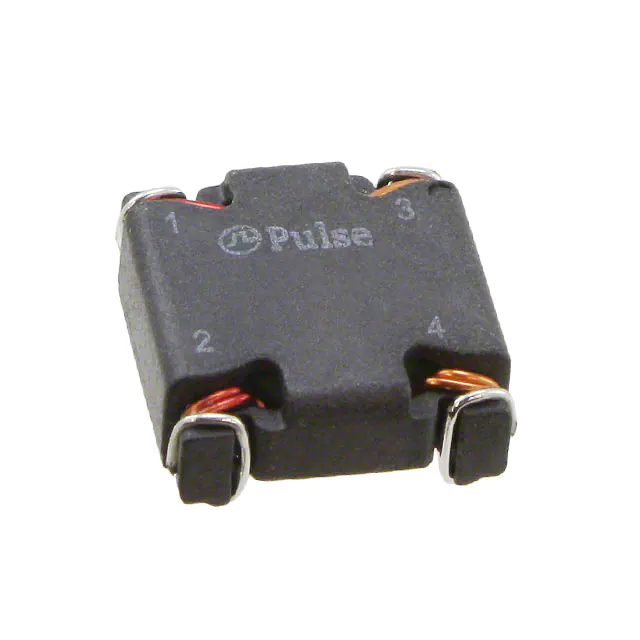

PA2744NLCMC 4A 2LN SMD |
7,218 | - |
|
Datasheet | Horizontal, 4 PC Pad | - | 2 | - | - | 4A | 13.2mOhm | - | - | -40°C ~ 130°C | - | - | - | - | - |
|
|
APPM00485023102XY0CMC 3A 2LN 1000 OHM AEC-Q200 |
3,754 | - |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 3A | 24mOhm | 50V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
Common Mode Chokes FAQ
What Common Mode Chokes components can I source from EGOO?
You can browse available Common Mode Chokes product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Common Mode Chokes parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
